Slander Door
Slander Door
Sectional door has a beautiful appearance, high strength, low noise and insulation properties, making it widely used in areas with high cleanliness requirements, such as factories, medicine, food, electronics, printing, supermarkets, etc.

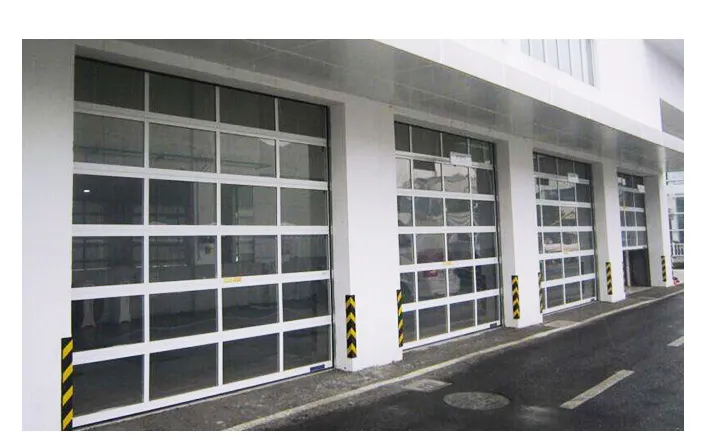

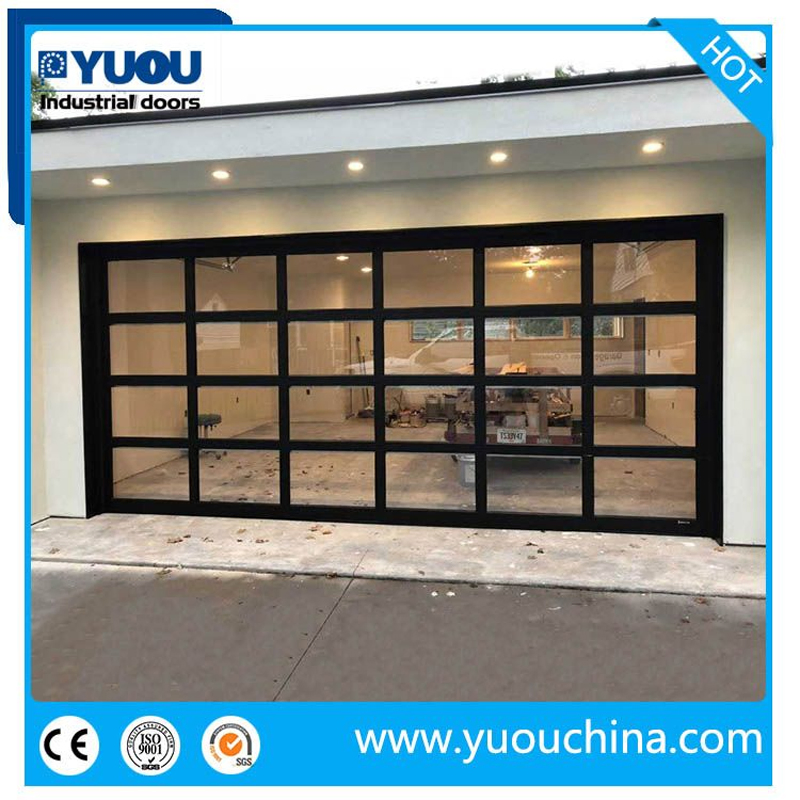

| Motorized Transparent Sectional Door Polycarbonate Garage door | |
|---|---|
| Max dimension | width * height 12000mm*8000mm |
| Power supply | 220±10%V, or 380V, 50/60Hz, IP55 |
| Opening and closing speed | 20-40cm/s |
| Door panel thickness | 40mm/50mm/75mm/100mm/Back rib door |
| PU Density | 48±2kg/m³ |
| Wind resistance | 28-35m/s (Class 10-12) |
| Sound insulation level | 24DB |
| Insulation level | 0.38W/M°C |
| Water tightness | 30Pa |
| K Value | 1.5W/M2.K |
| Thermal Conductivity | <= 0.033W/M.K |

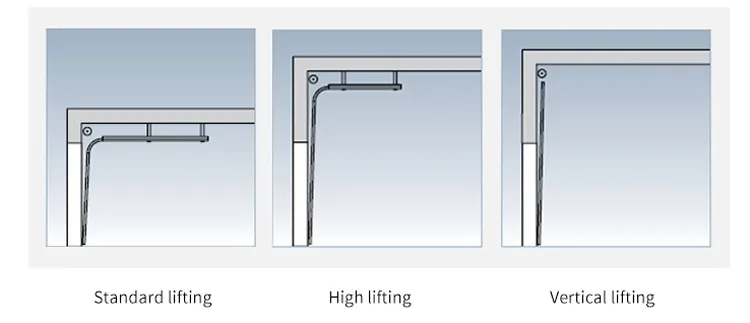

1. Lifting way:

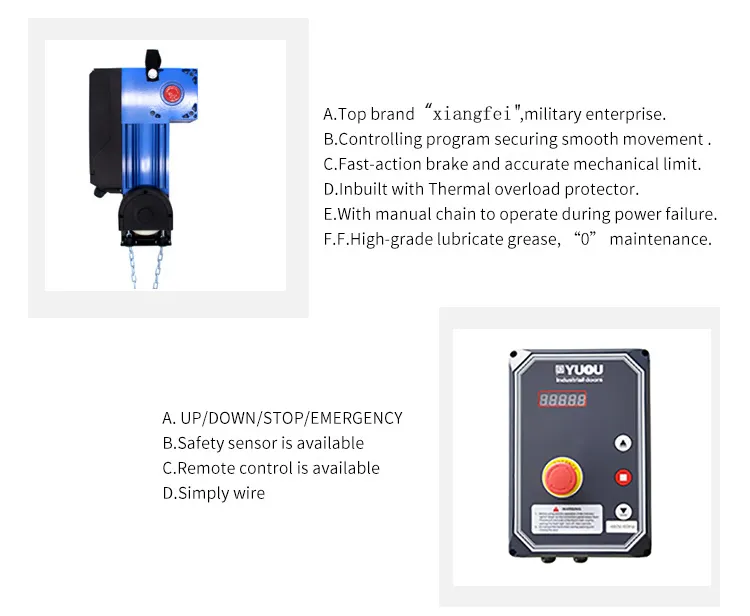

2. Motor and controller:

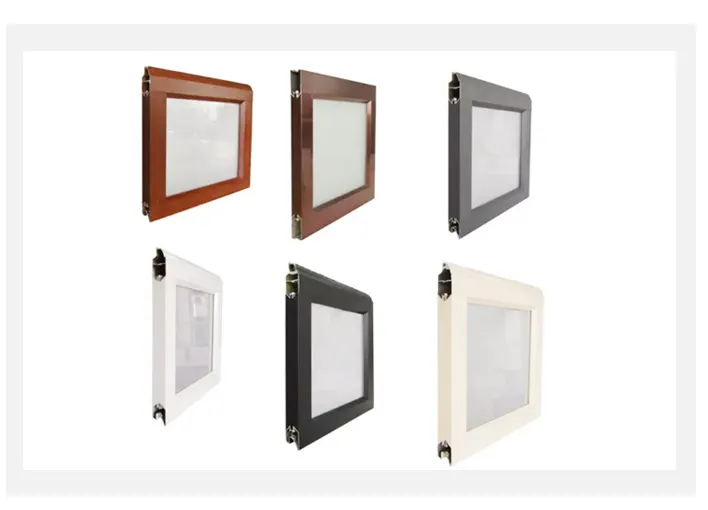

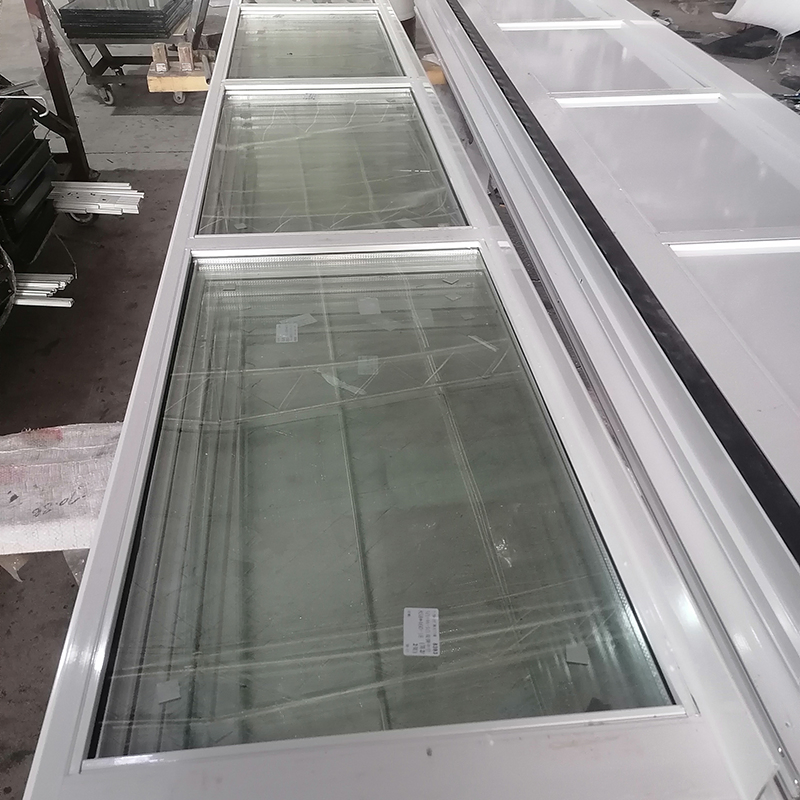

3. Panel (Finger safe style):
A. Two layer 1.2mm aluminum alloy, surface: Electrostatic coating. total thickness: 40mm
4. Safety device:

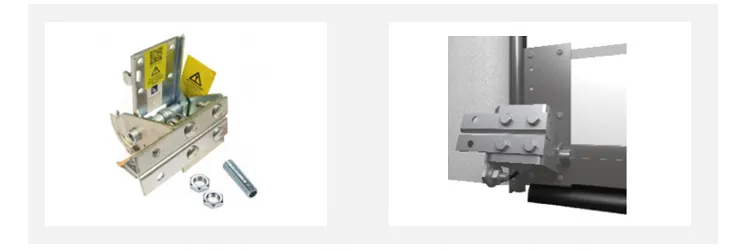

5. Accident Dropping Safety Device:
Door bottom is equipped with dropping avoid steel cord, securing the accident dropping within 5cm.

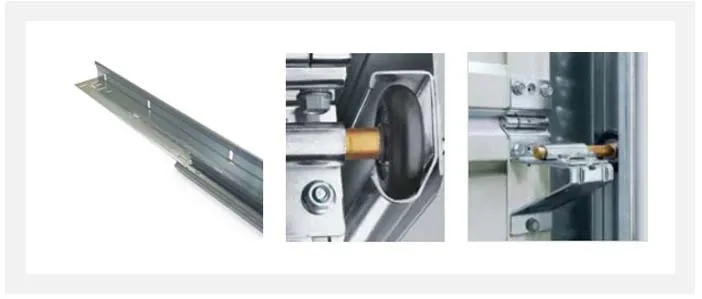

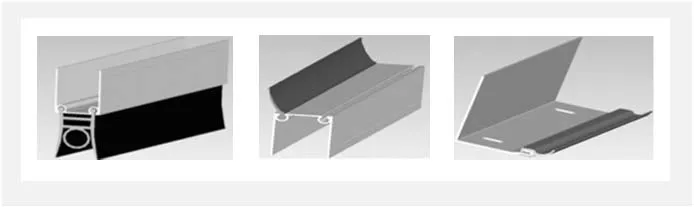

6. Guide rail & Seals:
EPDM Sealing rubber is install onto top, bottom and periphery, cold resistant and anti-broken.

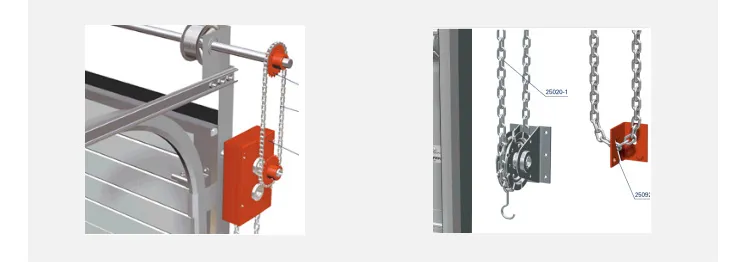

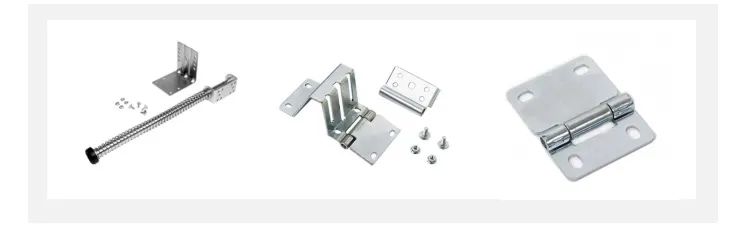

7. Buffer and Hinges (2.5mm steel plate) & Manual Device:

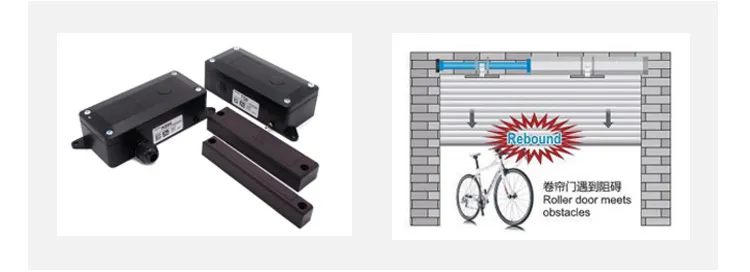

8. Bottom Wireless Safety Airbag:
