Full Vision Full Transparent Insulated Automatic Sectional Overhead Lifting Glass Garage Door
Full Vision Full Transparent Insulated Automatic Sectional Overhead Lifting Glass Garage Door
Full Vision Full Transparent Insulated Automatic Sectional Overhead Lifting Glass Garage Door
Full Vision Full Transparent Insulated Automatic Sectional Overhead Lifting Glass Garage Door
Full Vision Full Transparent Insulated Automatic Sectional Overhead Lifting Glass Garage Door
1 / 5
Full Vision Full Transparent Insulated Automatic Sectional Overhead Lifting Glass Garage Door
Full Vision Full Transparent Insulated Automatic Sectional Overhead Lifting Glass Garage Door
Full Vision Full Transparent Insulated Automatic Sectional Overhead Lifting Glass Garage Door
Full Vision Full Transparent Insulated Automatic Sectional Overhead Lifting Glass Garage Door
Full Vision Full Transparent Insulated Automatic Sectional Overhead Lifting Glass Garage Door

Full Vision Full Transparent Insulated Automatic Sectional Overhead Lifting Glass Garage Door

Customization: Available
After-sales Service: Lifelong
Warranty: 2 Years
Send Inquiry

Product Description

Full Vision Customized Morden Full Transparent Insulated Automatic Polycarbonate Sliding Sectional Overhead Lifting Aluminium Frame Clear Glass Garage Door

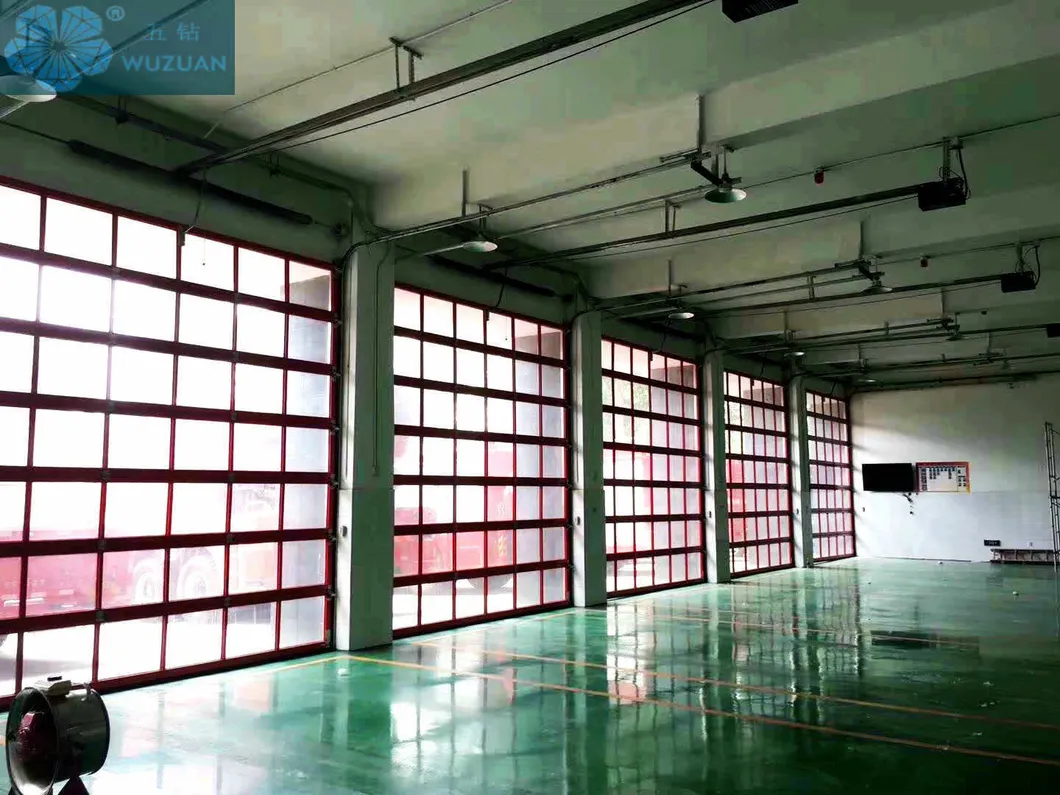

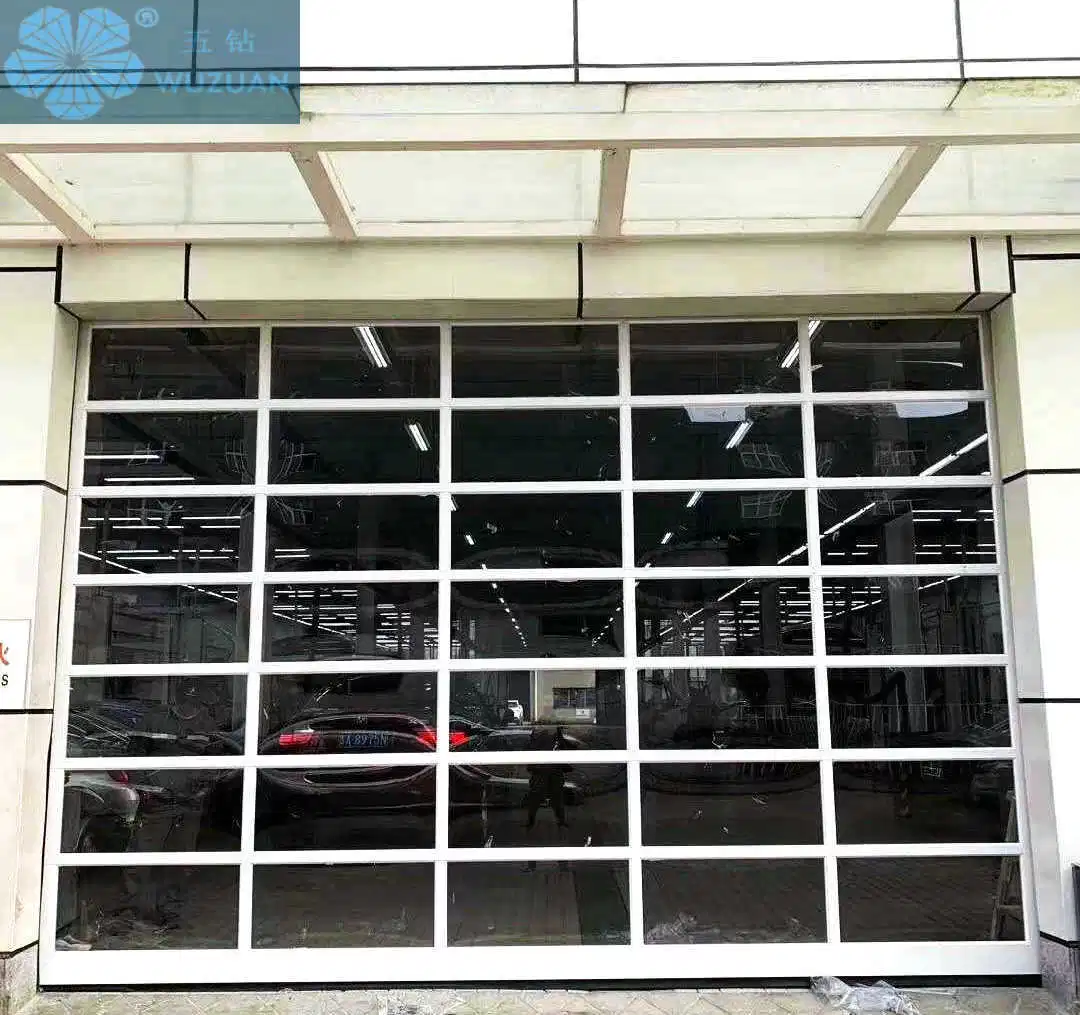

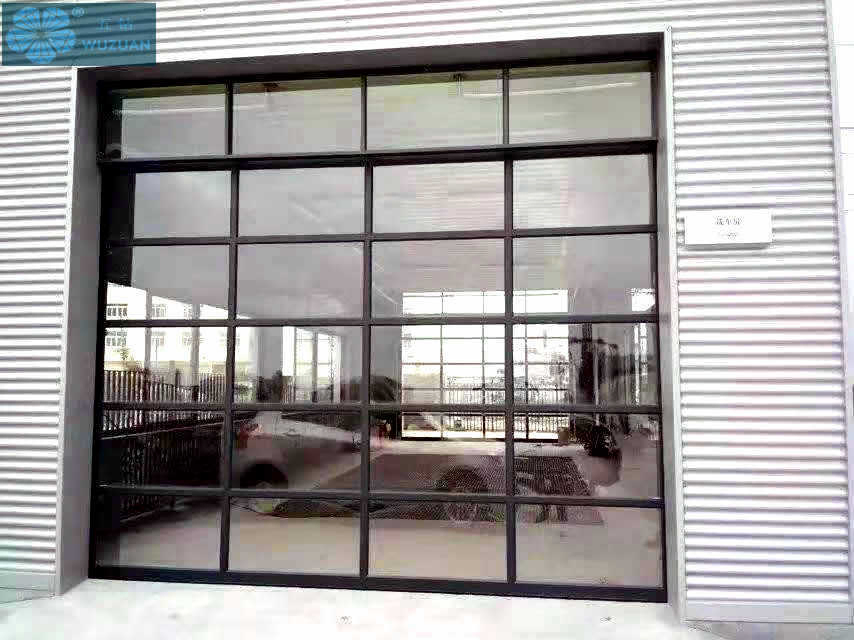

Glass Garage Door 1 Glass Garage Door 2

Basic Specifications

Model NO.
GSD0026
Material
Full Clear Polycarbonate
Type
Sliding
Open Style
Sliding
Opening Type
With Remote Control
Special Function
Security
Certification
ISO9001
Motor
Avanti, Foresee or Others
Panel Length
2-11.8m or Customized
Panel Width
420mm - 610mm
Density of PU Core
38-40kg/ M3
Thermal Insulation
1.9W/(Sqm.K)

Scope of Application

Perspective sliding doors are widely used in various modern industrial factories, auto 4S shops, and other commercial locations. Key features include:

  • Beautiful appearance with maximum viewing area.
  • Smooth opening, safe and reliable operation.
  • Low noise and high-density sealing.
  • Excellent thermal insulation performance.
  • Space-saving installation to improve production efficiency.

Technical Data

DescriptionDetails
Max DimensionW12000mm, H8000mm
Opening Speed20cm - 40cm/s
Power Supply220V/380V ±10%, 50/60HZ
Panel Thickness40mm / 50mm
Transparent MaterialPolycarbonate glass, Tempered Glass
Wind ResistanceBeaufort scale 11 grade (28m/s)
Sound Insulation<=60dB
Safety DevicesAirbag protection, anti-fall device, wire rope protection

Product Advantages

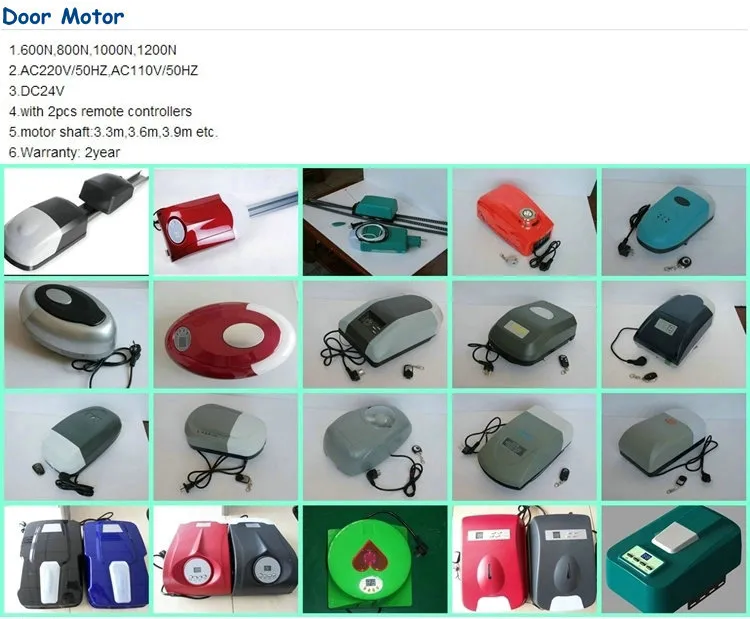

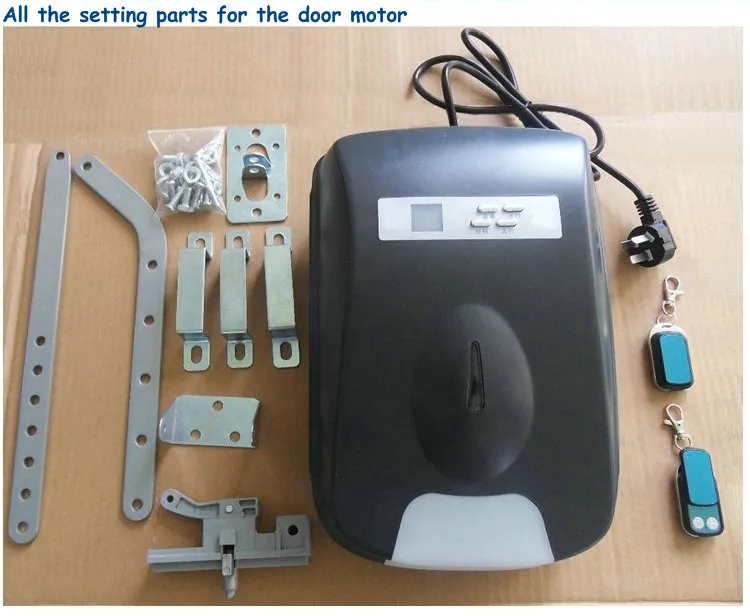

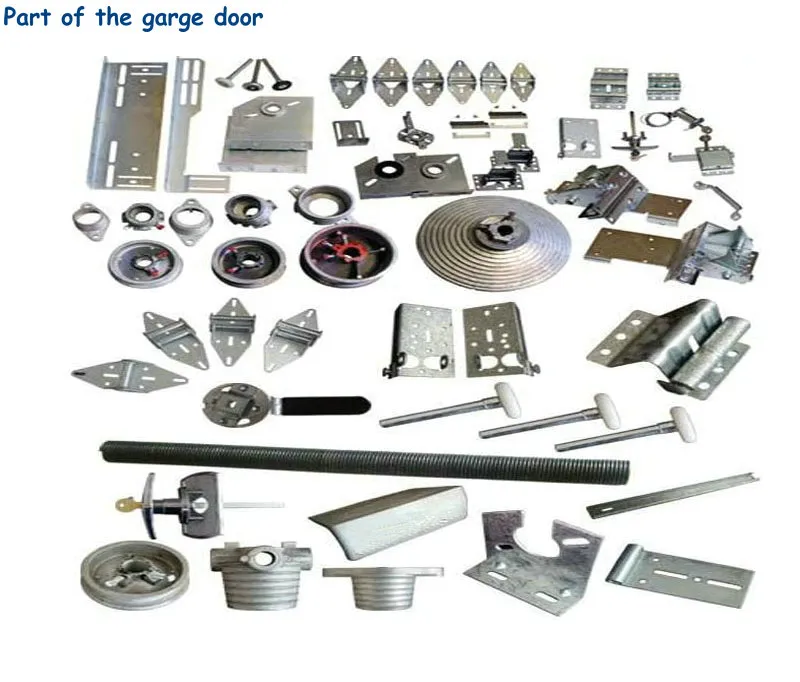

Feature 1 Feature 2 Feature 3
  • High-quality aluminum alloy material and Polycarbonate (PC) boards.
  • PC board thickness options: 3mm-5mm with excellent UV resistance.
  • Impact resistance is 100 times higher than standard glass.
  • Remote control motor operation with multiple safety protections.
  • Modern design to highlight architectural taste.

Visual Showcase

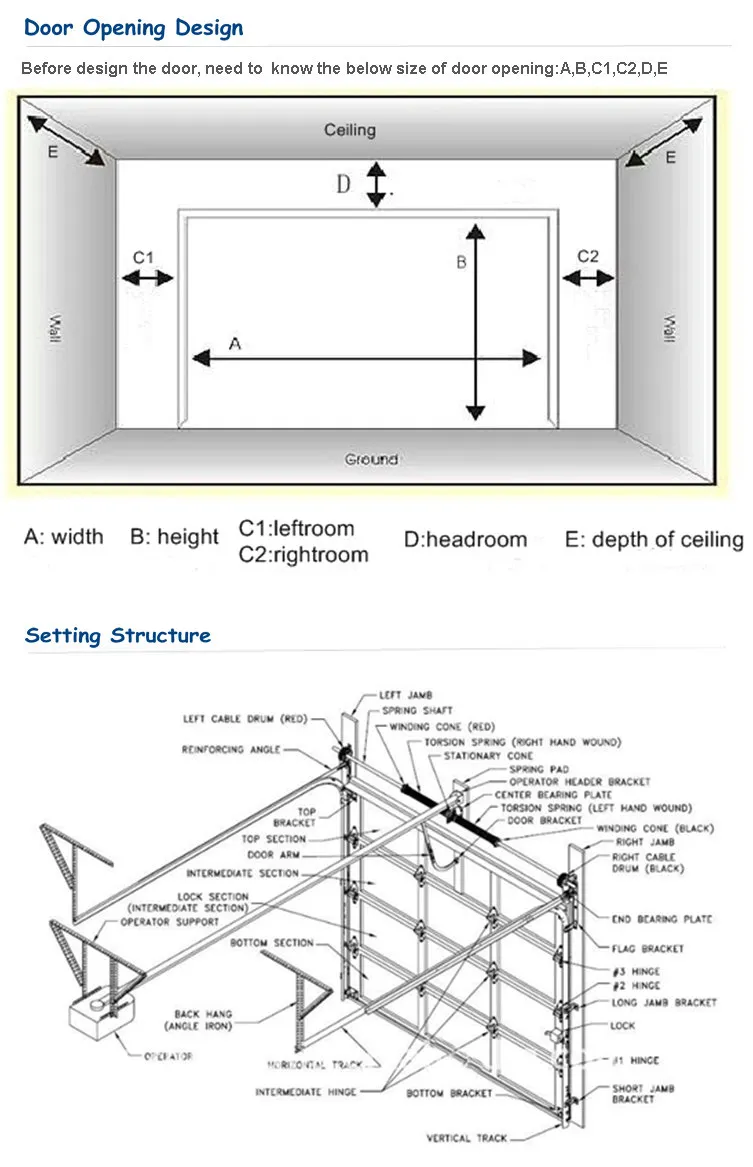

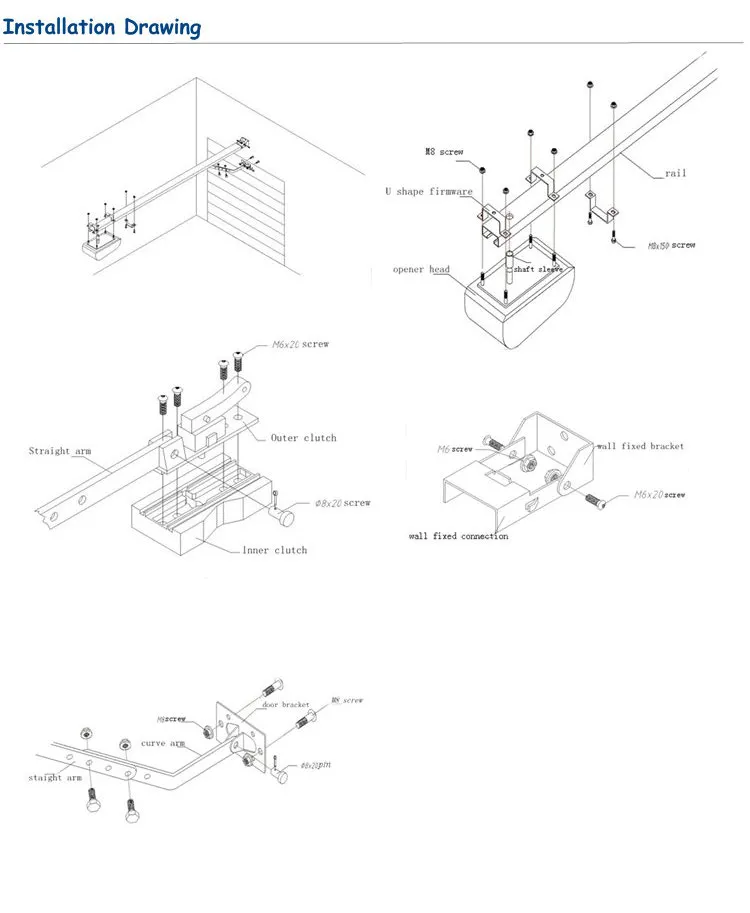

Showcase 1 Showcase 2

Packaging & Logistics

Package Size
4500.00cm * 700.00cm * 650.00cm
Gross Weight
280.000kg
Transport Package
Plywood/Wood Case
HS Code
73083000

Frequently Asked Questions

1. Are you a manufacturer or a trading company?
We are a factory specializing in high-quality door production.
2. What are the payment terms?
For orders <=1000USD, 100% in advance. For orders >=1000USD, 30% T/T in advance, with the balance due before shipment.
3. What is the standard delivery time?
Common orders typically take about 15 days to process.
4. What kind of warranty do you provide?
We provide a 12-month warranty for all doors and accessories.
5. Do you offer OEM/ODM services?
Yes, both OEM and ODM services are available to meet your specific requirements.
6. How are the products packaged for shipping?
Products are packed in plywood cases suitable for sea or air freight to ensure safety during transit.
