Basic Specifications
Material
Aluminum Alloy / Steel
Opening Style
Electric/Manual

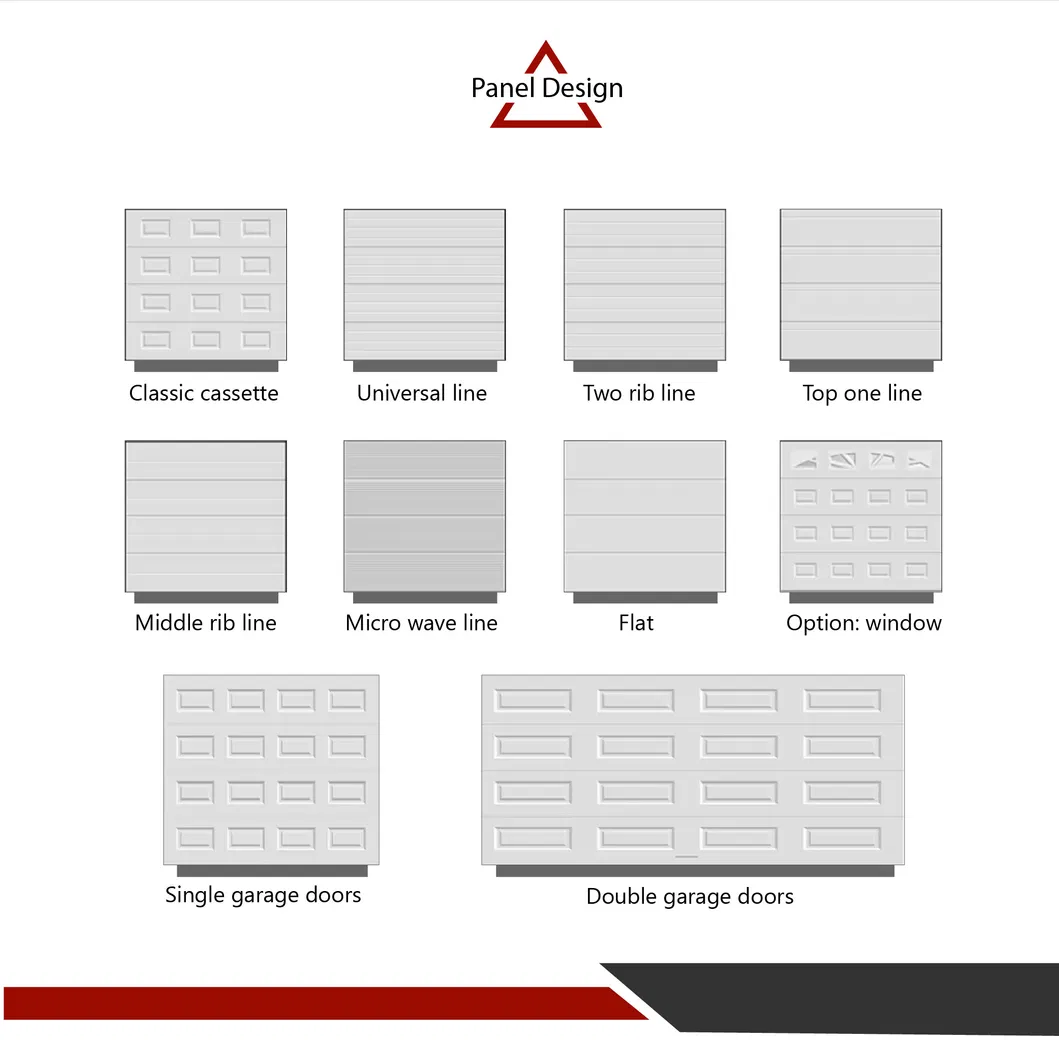

Panel Design
Anti-Pinch Hand Design
Surface Finishing
Finished / Embossed

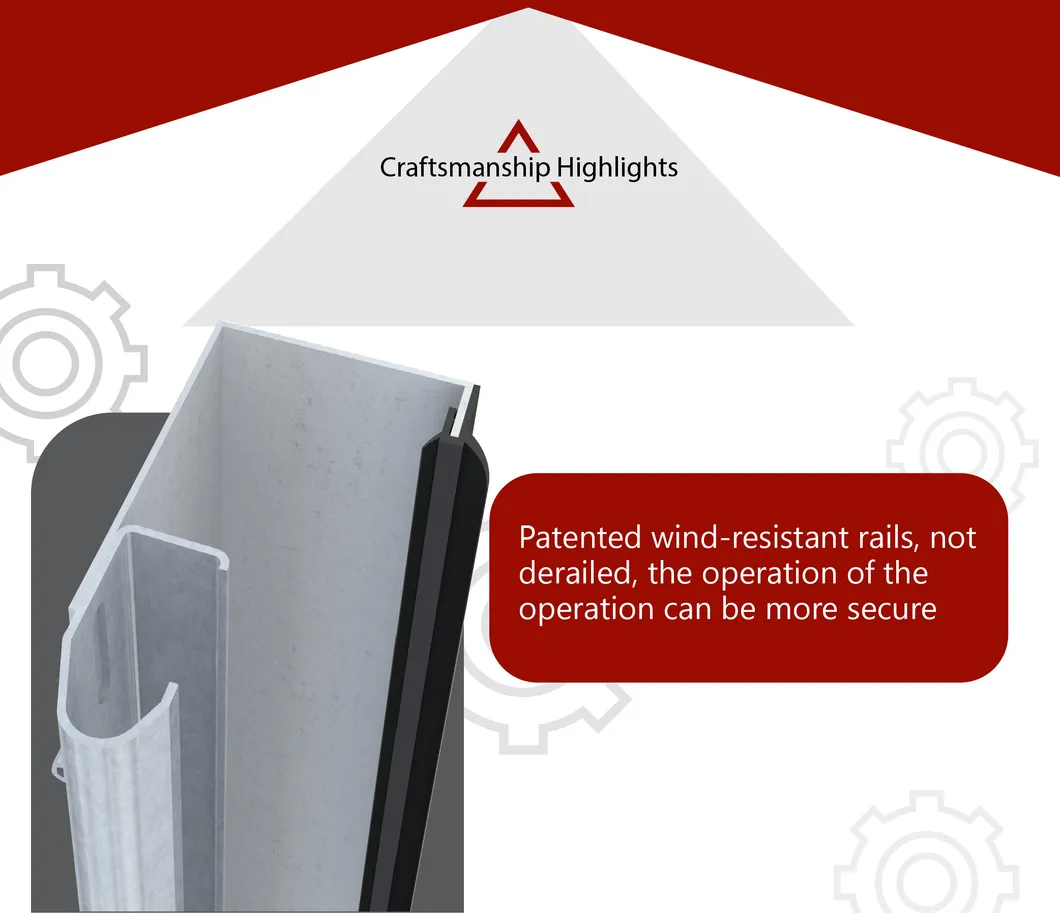

Wind Resistance
700pa (Grade 7)
Thermal Insulation
K=1.1W/(.K)
Application
Villa, Commercial Housing
Product Features
Core Advantages: Thermal insulation, wind resistance, anti-theft, high sealing performance, intelligent control, and easy maintenance.
| Technical Attributes |

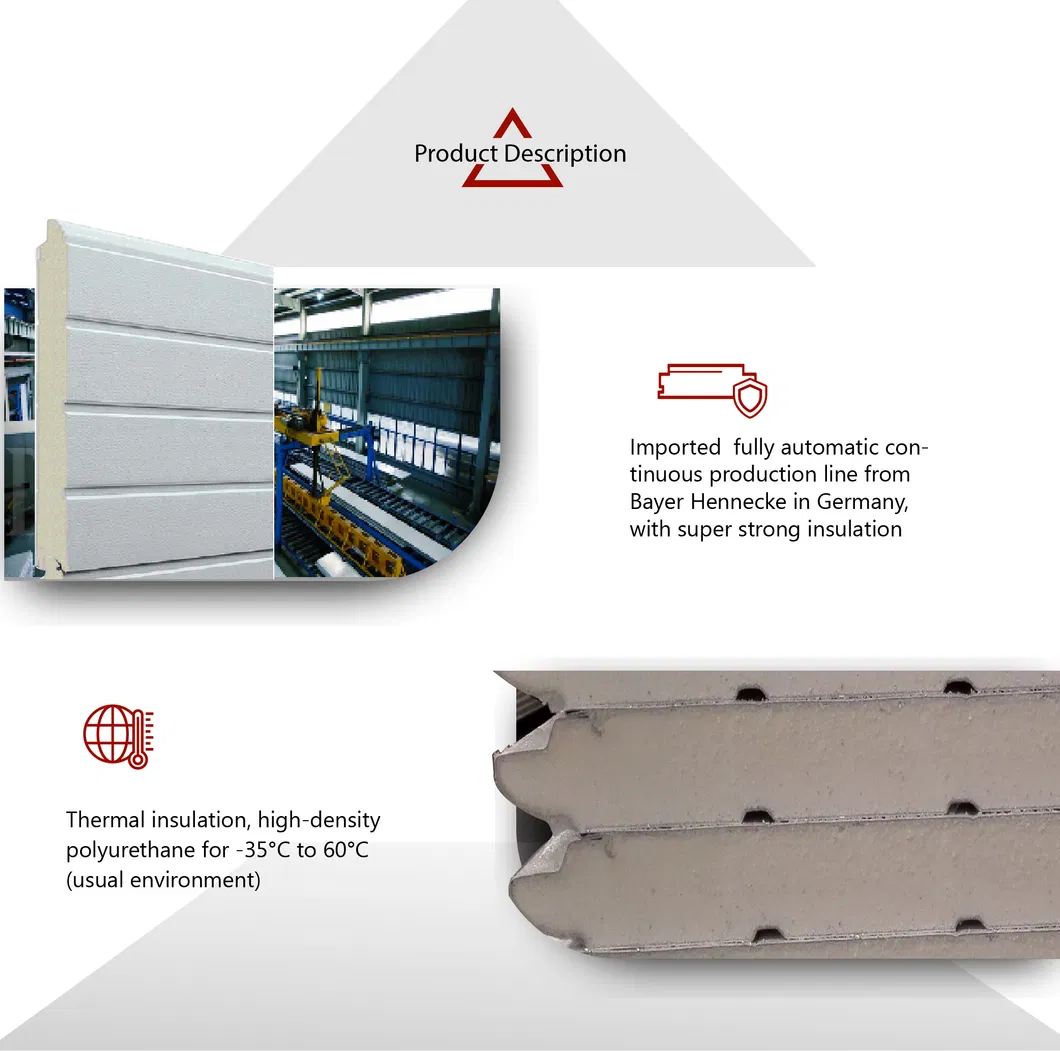

| Door Panel |
PU sandwich panel, total thickness 42mm. Huntsman brand polyurethane, density: 48kg/m³ |
| Size Range |
Min: W2000mm x H2000mm | Max: W11500mm x H6000mm |

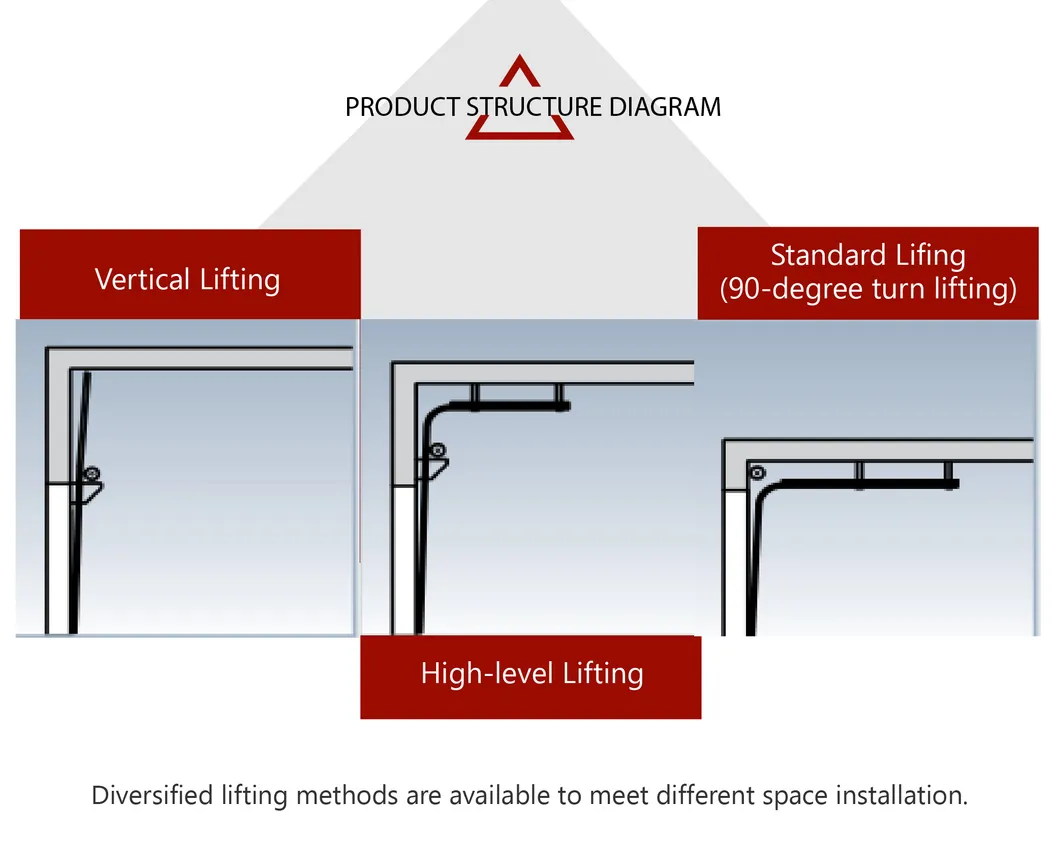

| Lifting Mode |
Vertical Lift / High Lift / Standard Lift (Right Angle lift) |

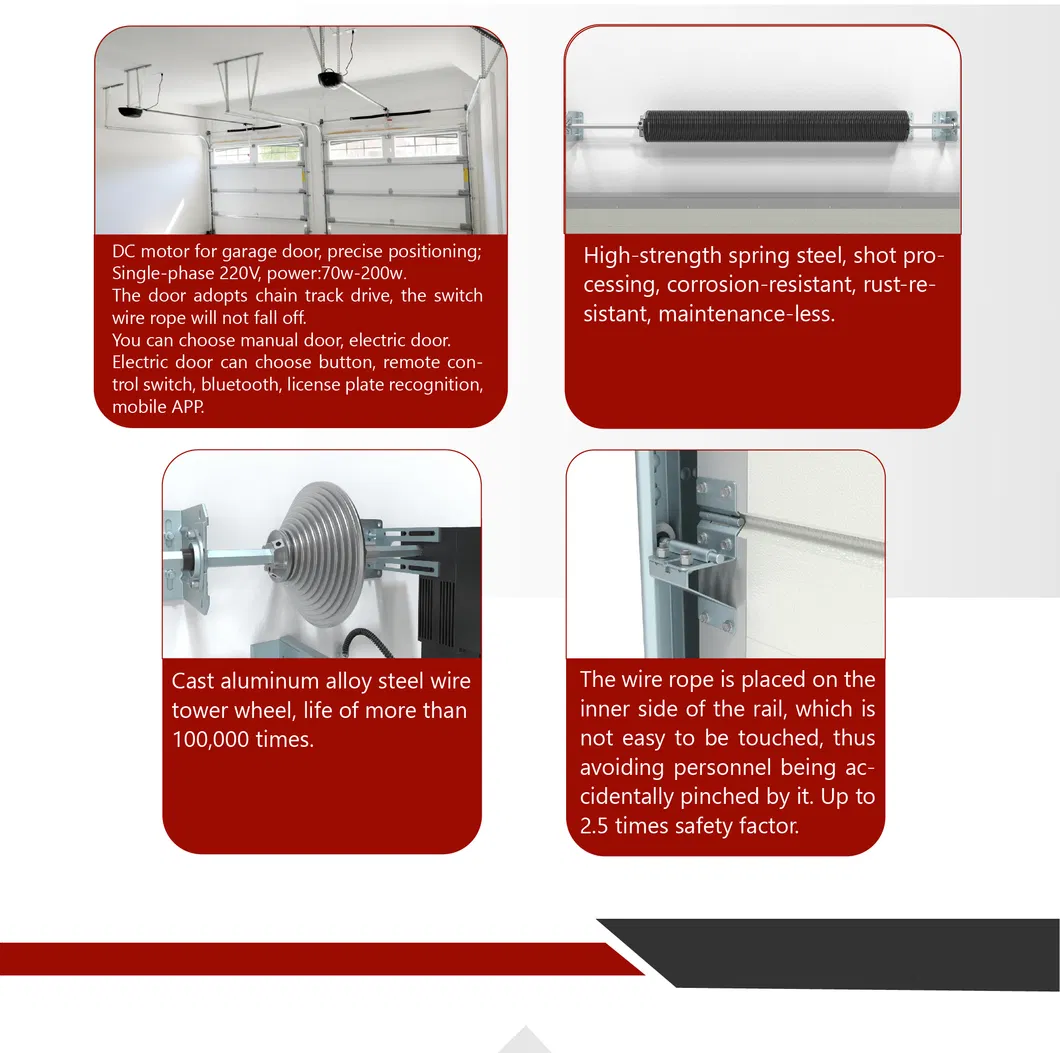

| Motor System |
Dedicated DC motor, 220V, power: 70w-200w, precise positioning |

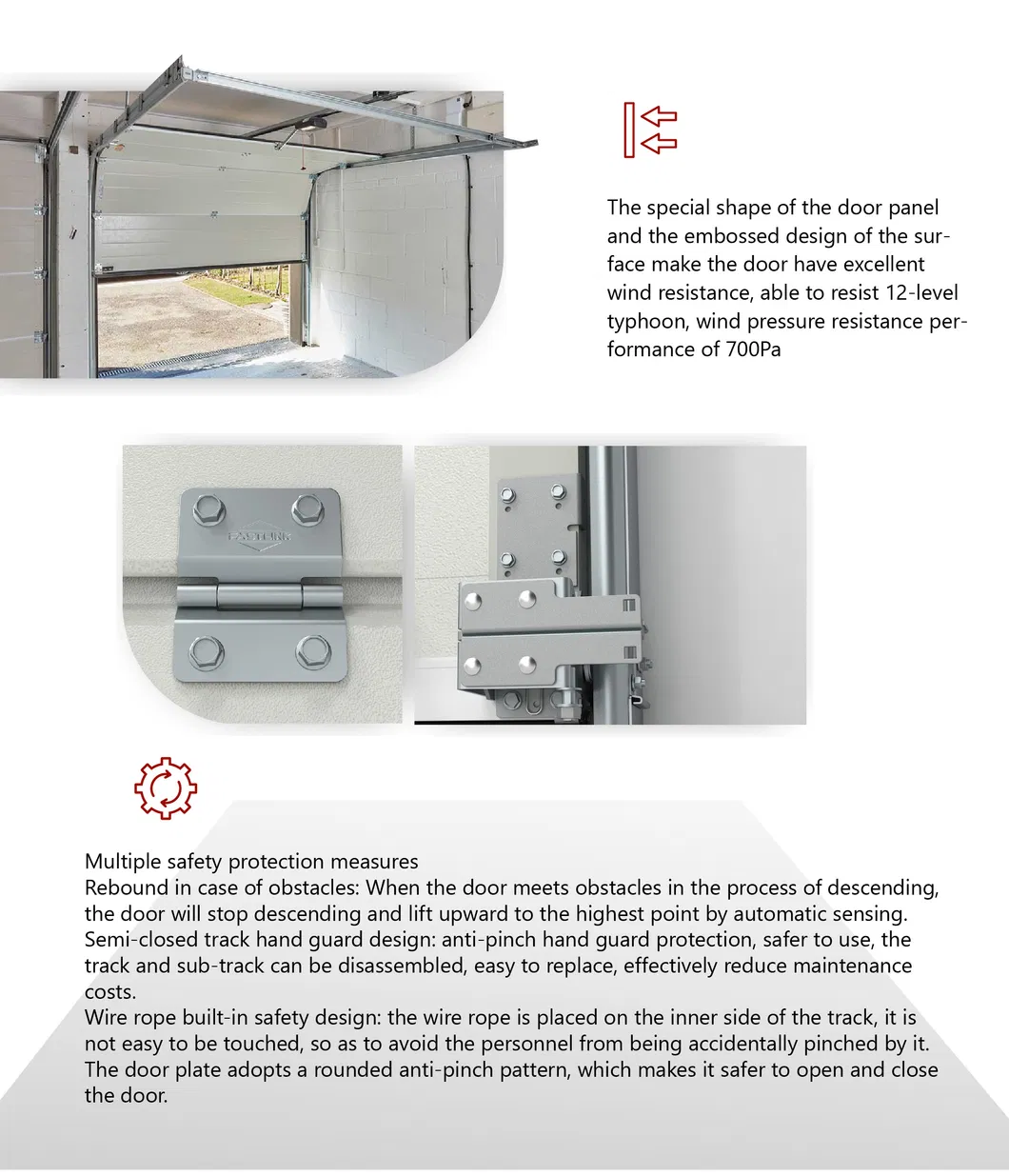

| Safety Devices |
Rebound on obstacles, anti-breakage spring, anti-pinch panel, wire rope built-in design |
| Certification |
CE, CPR, UL |
Frequently Asked Questions
Is the Insulated Sectional Door safe to use?
Yes, the door has passed CE certification and features comprehensive safety designs including obstacle rebound sensors, anti-breakage protection for steel wire ropes and springs, and an anti-pinch panel design.
How well does this door resist wind?
The unique structural design allows it to meet a wind resistance of at least 700Pa, making it suitable for coastal areas prone to typhoons.
What is the minimum installation space required?
The minimum installation space required above the door opening is 350mm, with at least 150mm required on each side.
What is the expected lifespan of the garage door?
With normal use and regular maintenance, the garage door has a lifespan of more than 10 years.
What materials are used for thermal insulation?
The door uses PU sandwich panels with a total thickness of 42mm. The polyurethane is Freon-free with a density of 48kg/m³ and a closed-cell rate of over 95%.
What are the motor and control options?
The door utilizes a dedicated DC motor (70w-200w) with precise positioning. Control options include button switches, remote control, Bluetooth, license plate recognition, and mobile apps.
