Industrial Commercial Horizontal Sectional Overhead Garage Door Office Sliding Export

After-sales Service: Online Technical Support
Material: Steel
Thickness: 40mm

Product Description

Basic Information
Model NO.
ABXTSM
Opening Style
Rolling
Opening Type
Hand Operated / Electric
Main Material
Aluminum Alloy / Steel
Door Panel
PU Sandwich Panel (42mm)
Design Style
Modern
Feature
Windproof & Thermal Insulation
Application
Workshop & Logistics
Product Description

This insulated sectional door is a specialized logistics entrance and exit solution designed for industrial buildings, particularly those requiring strict temperature control. It combines multi-layer protection with advanced engineering to ensure efficiency and security.

  • Thermal Efficiency: Segmented cold-bridge design filled with high-density polyurethane (100% fluorine-free).
  • Robust Construction: Corrosion-resistant hardware and a dynamic balance system.
  • Operational Safety: Side rollers run along precision guide rails for smooth vertical or high-lift movement.
  • Intelligent Control: Supports electric side opening and automated security interfaces.

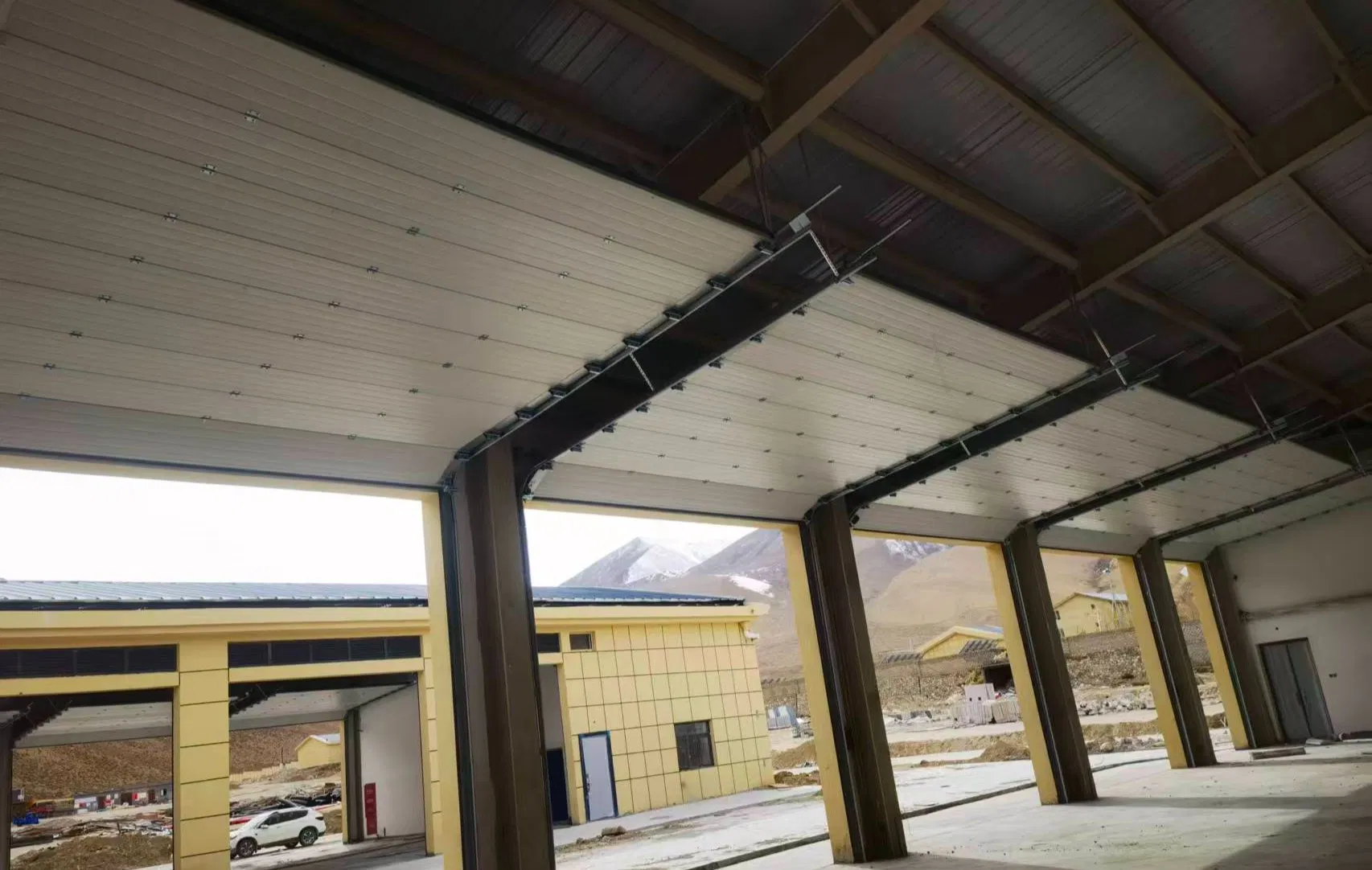

Horizontal Sectional Overhead Door
Technical Specifications
Industry AttributesIndustrial Door / Insulated Sectional Door
Material CompositionSteel or Aluminum alloy with PU sandwich core
Panel ThicknessTotal 42mm; Panel height 500mm
Polyurethane DensityHuntsman brand, 48kg/m³, closed-cell rate >95%
Standard SizesW1800mm*H2000mm up to W6000mm*H6000mm
Surface OperationEmbossed metal surface treatment
Wind Resistance700pa (Grade 1 watertight / Grade 7 airtight)
Thermal InsulationK=0.7W/(m².K)

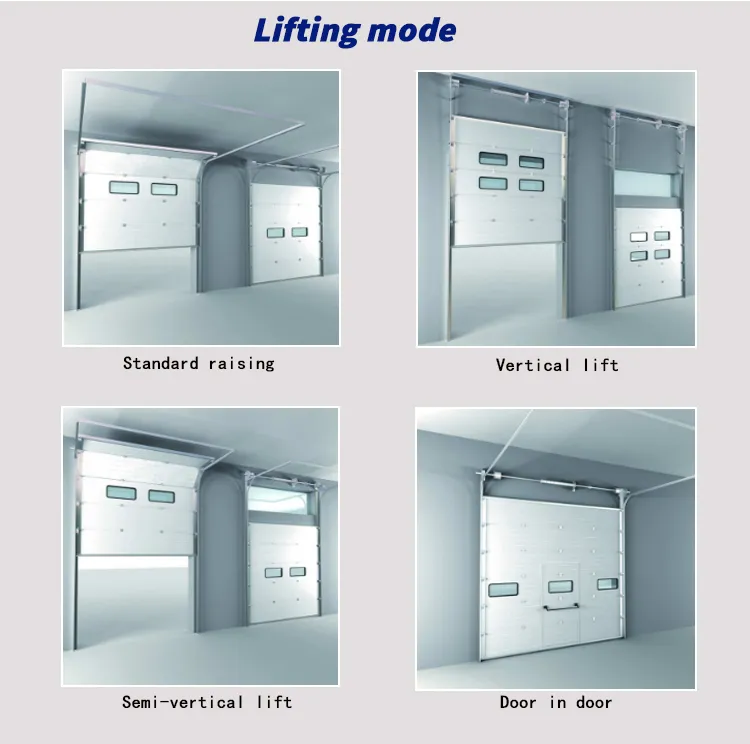

Lifting ModesVertical Lift / High Lift / Standard Lift

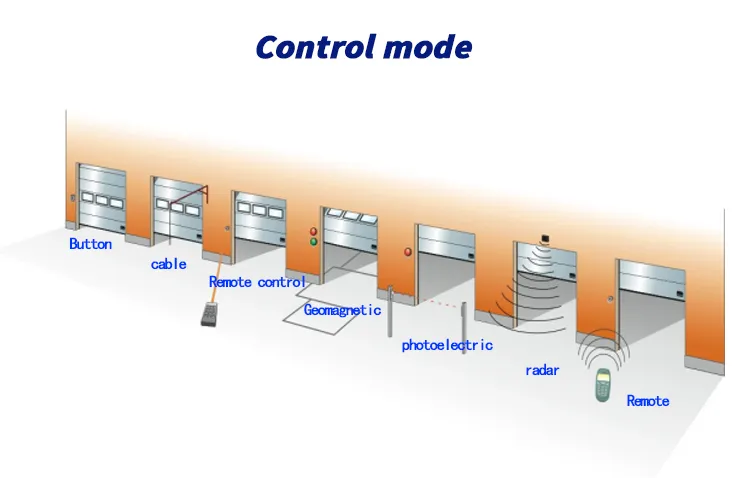

Control SystemIntelligent box: fault display, fire linkage, interlock
Color OptionsRAL9002, RAL9006, RAL7040, RAL7045
Product Gallery

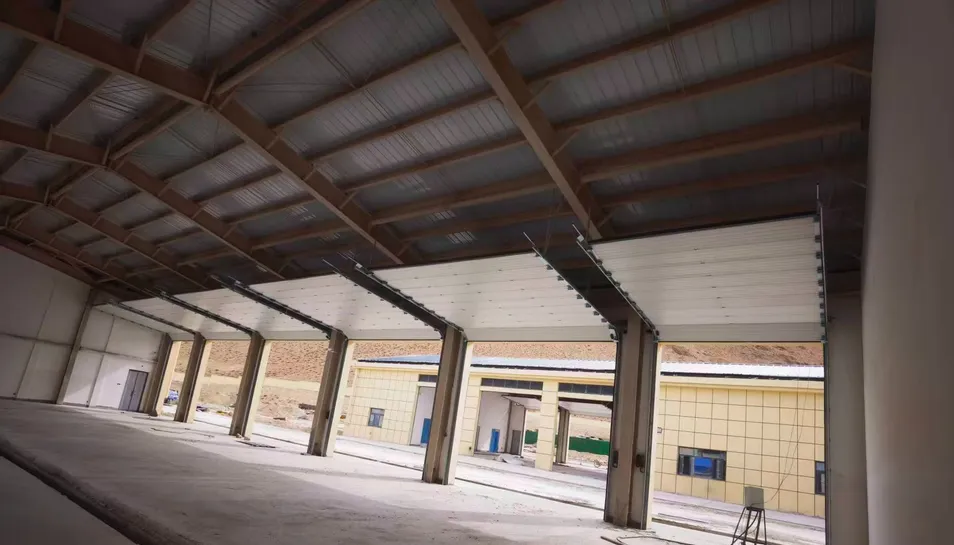

Industrial Door Logistics Entrance

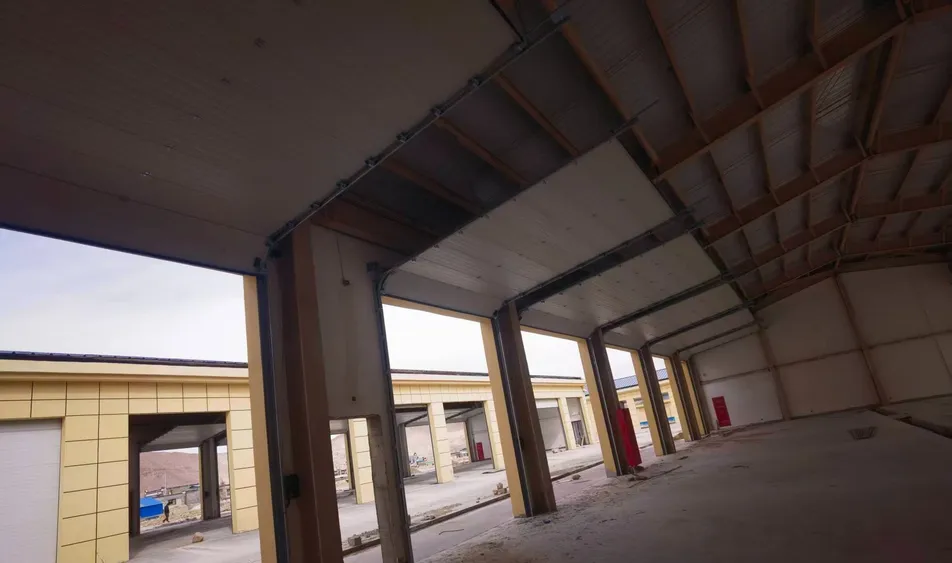

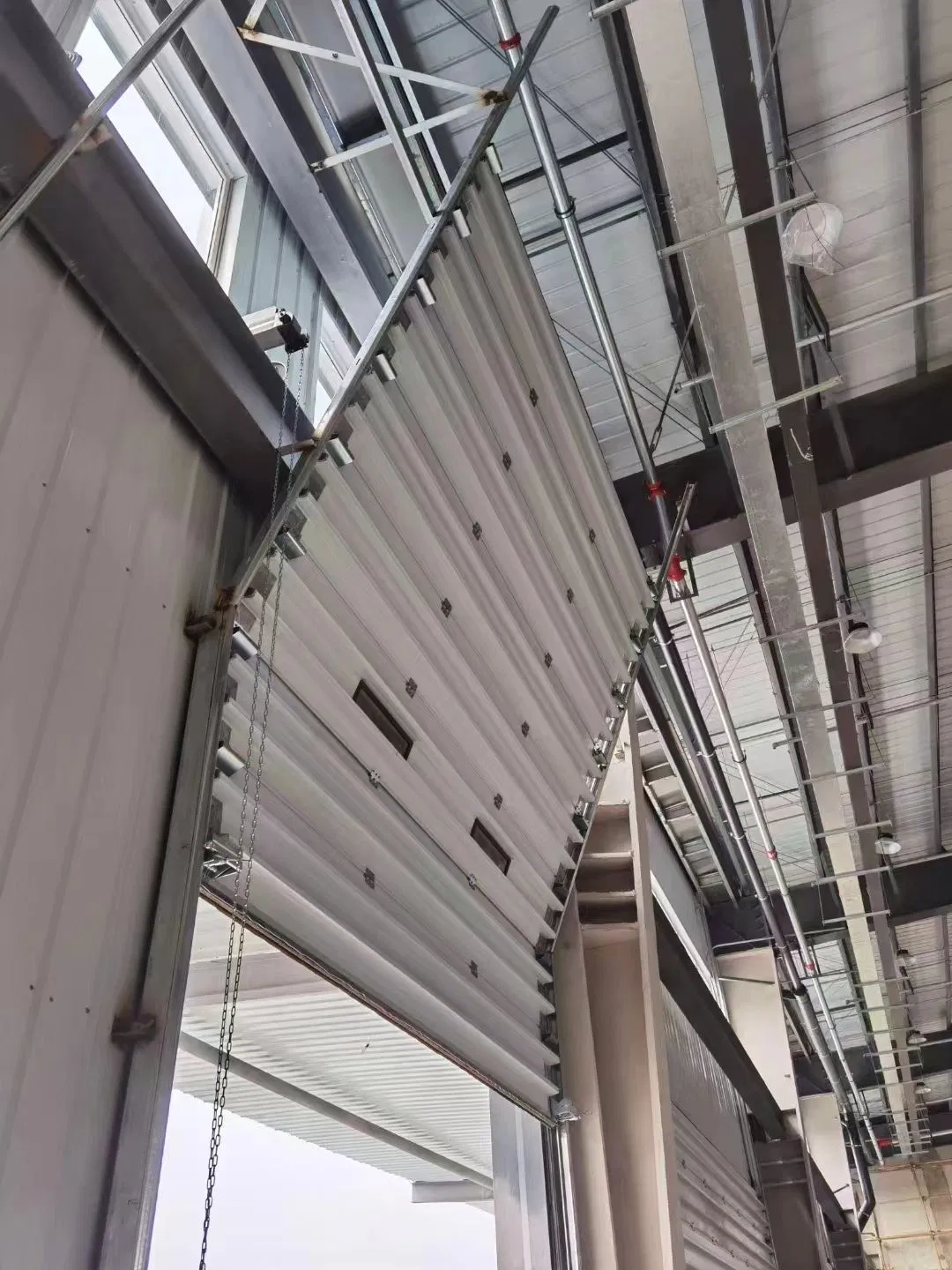

Insulated Sectional Door Installation
Sectional Door Details
Garage Door Panel View
Operational Video & Profile
Video Cover

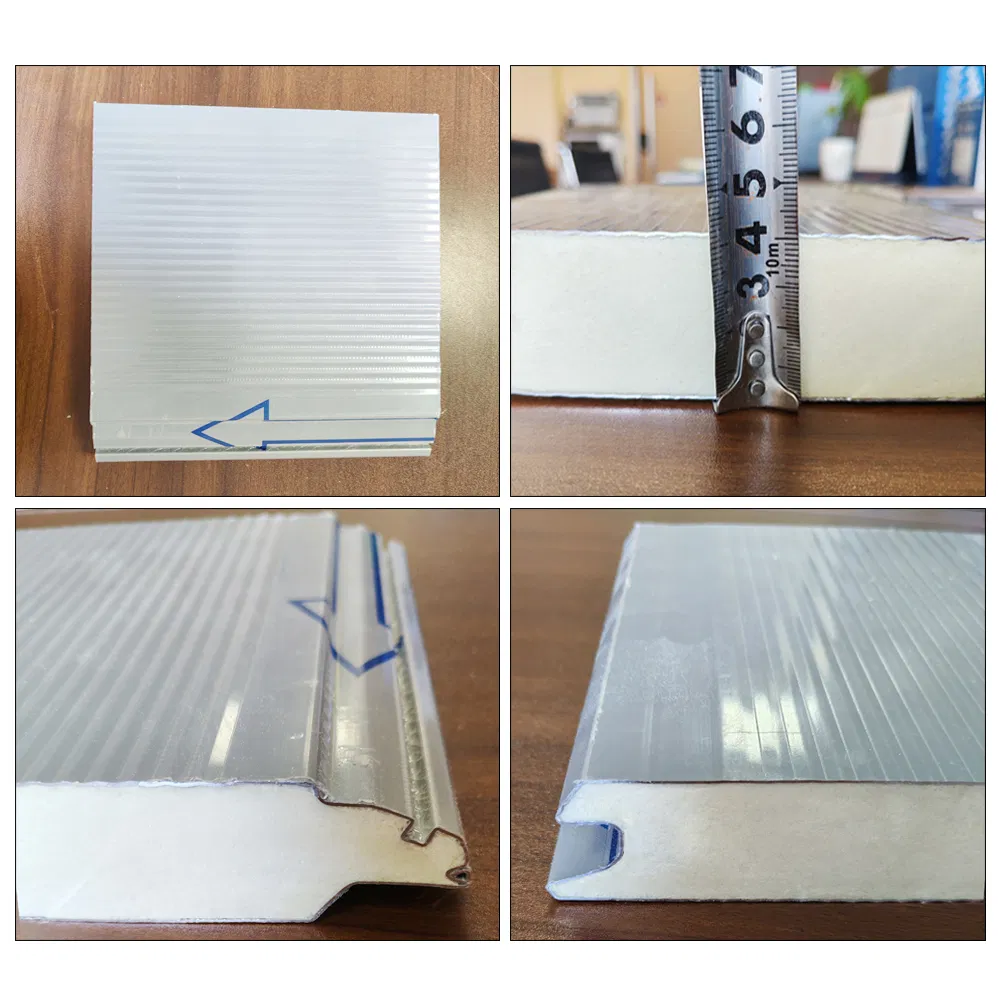

Manufacturing Standards
Quality Control
Frequently Asked Questions
What are the main benefits of using insulated sectional doors?
They provide excellent thermal insulation, wind resistance up to 700pa, and enhanced security with anti-theft features, making them ideal for temperature-controlled warehouses.
What materials are used in the door panels?
The panels are 42mm thick PU sandwich panels, featuring high-strength steel or aluminum alloy skins with a high-density, Freon-free polyurethane core.
Can the doors be operated manually during power outages?
Yes, the doors support both electric and manual opening modes, ensuring operational continuity even without power.
What is the maximum size available for these industrial doors?
Standard configurations can reach up to 6000mm in width and 6000mm in height, though customized specifications are also available.
What kind of control system is included?
The doors come with an intelligent control system that features fault code displays, fire linkage capabilities, and interlock functions for maximum safety.
Are the tracks resistant to environmental wear?
Yes, we use patented wind-resistant tracks with bolted connections for easy maintenance and insulation cotton between the track and wall to prevent thermal bridging.
