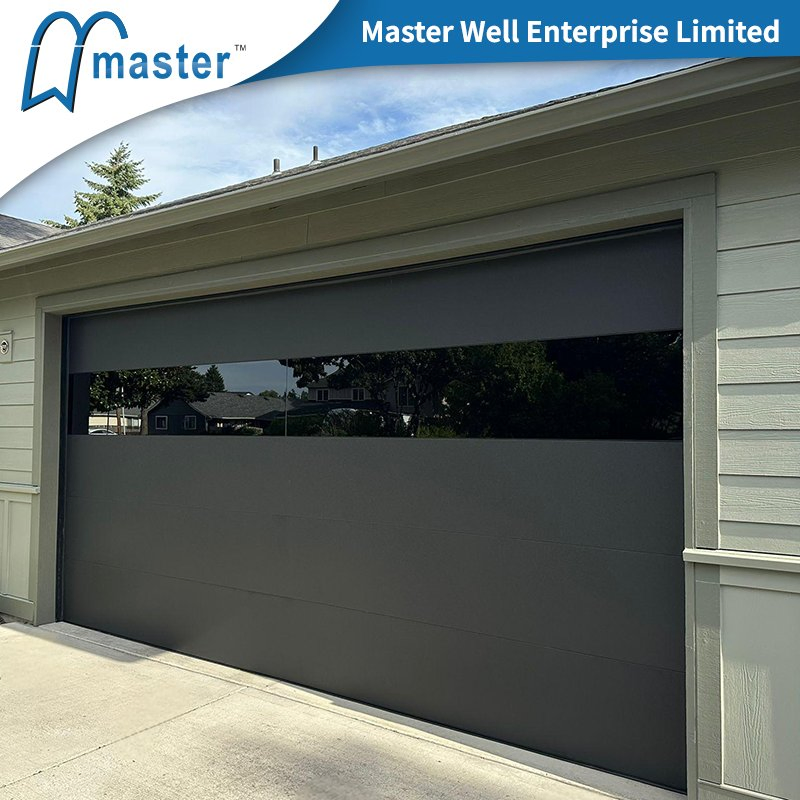

Top Sale CE Approved Modern Residential Commercial Sandwich Panel Automatic Insulated Electric Sectional Overhead Flush Steel Garage Door

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Information
Model NO.
SN35/SN40/SN50
Material
Steel
Thickness
40mm
Opening Style
Overhead
Opening Type
With Remote Control
Output Torque
800N
Color
White
Construction
Steel-Foaming-Steel Sandwich
Design

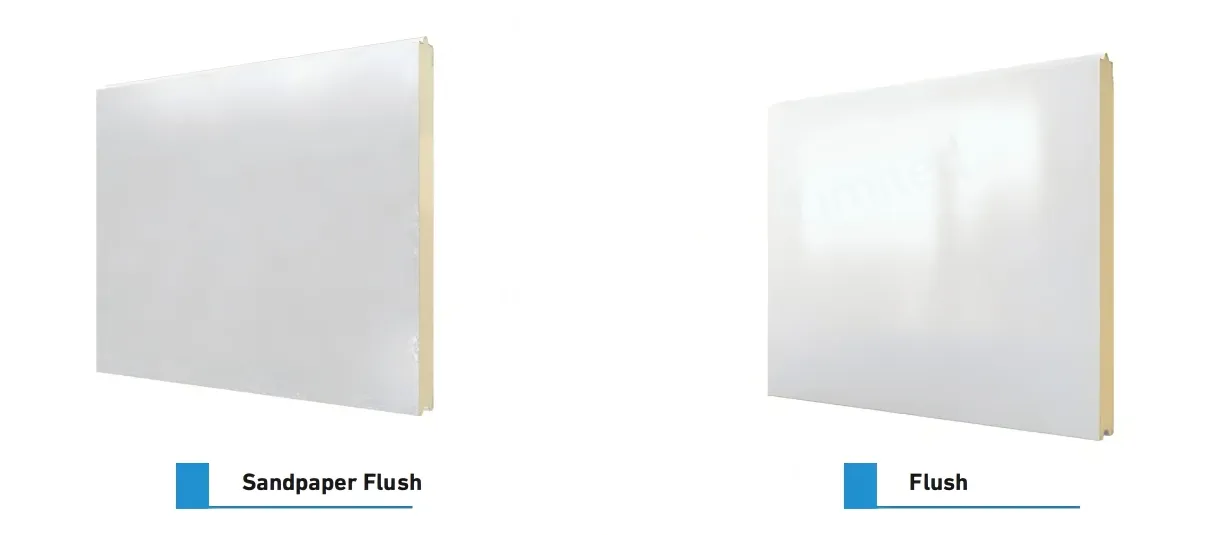

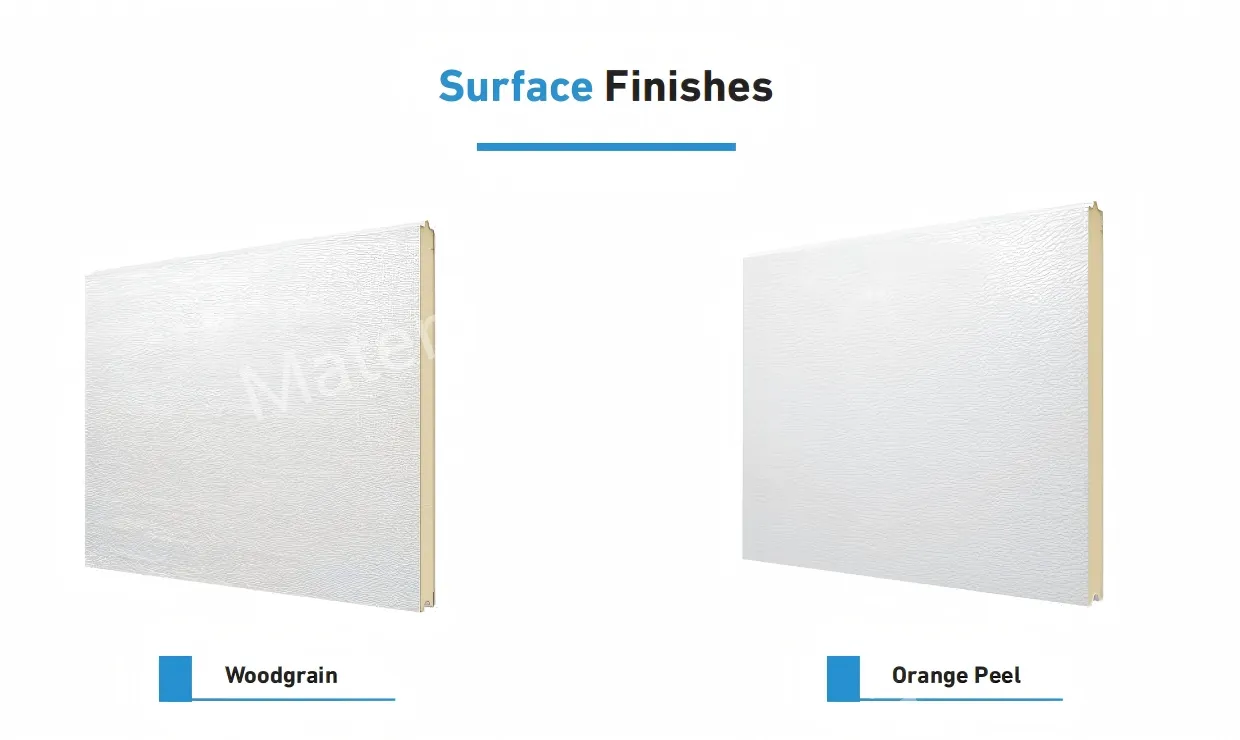

Wooden Grain, Orange Peel, Flush, Fold
Specification
CE Approved
Product Description

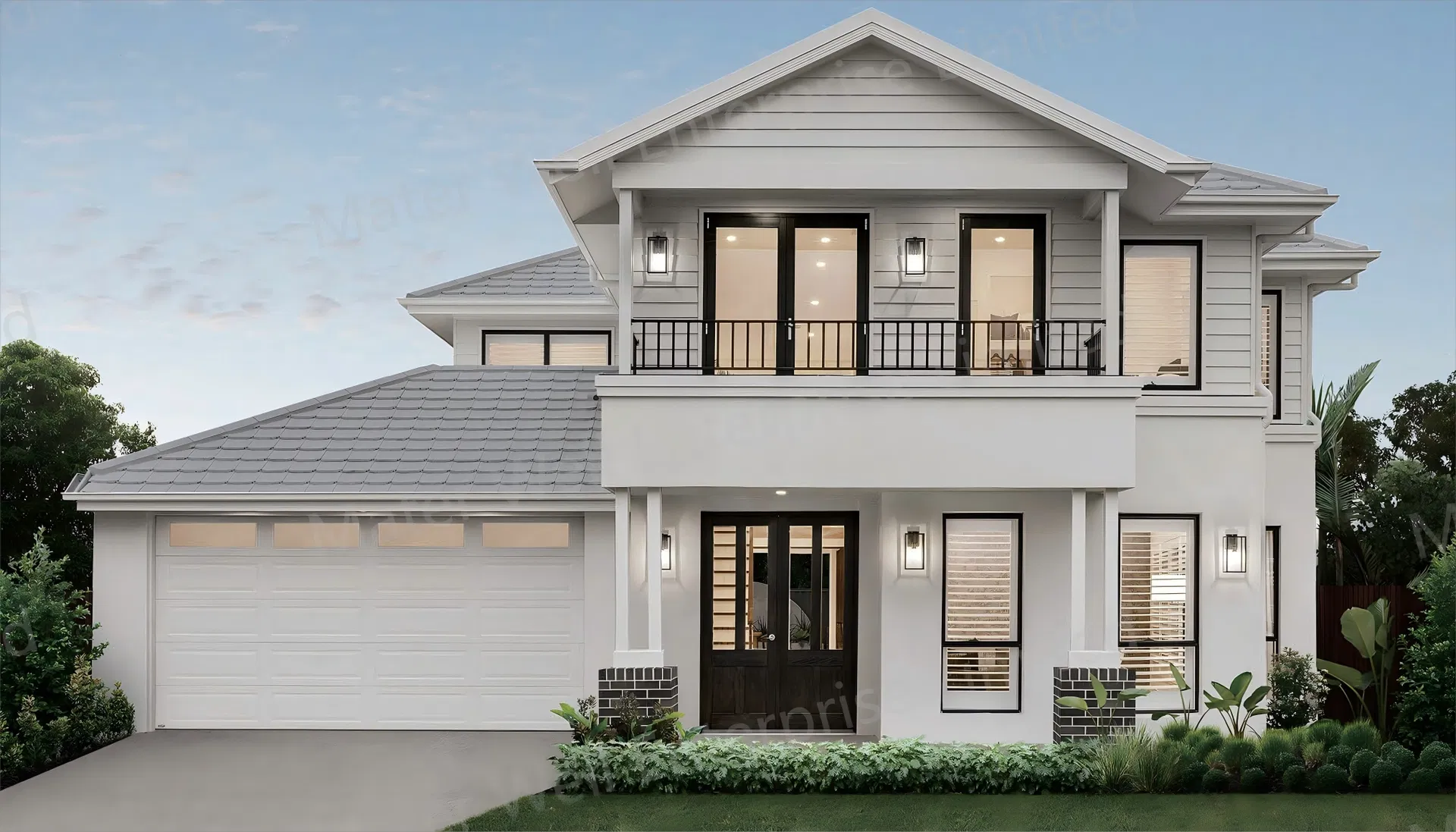

Sectional Overhead Flush Steel Garage Door
Panel typeNon-finger protectional panel
StructureTight tongue and groove Joint
MaterialGalvanized steel with PU foaming
Section thickness1 3/8’’(35mm) / 1 3/5’’(40mm) / 2’’(50mm)
Max available length40ft(12m)
R-ValueR14-R19
Insulation density45kg/m3

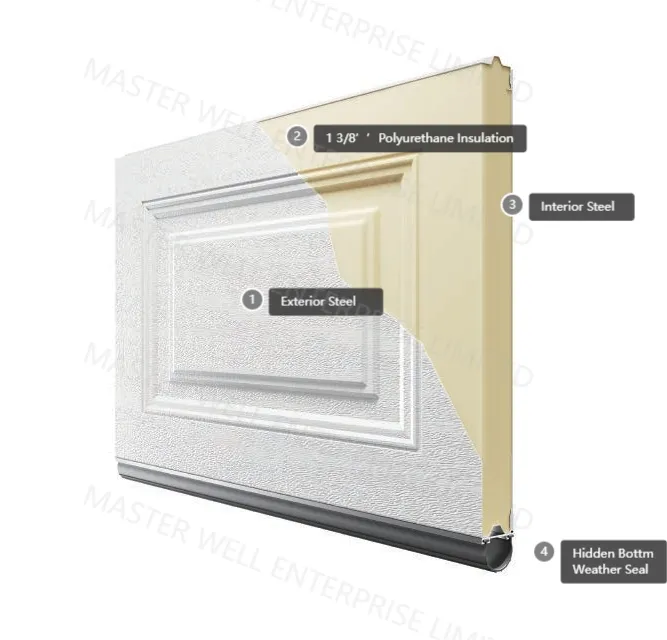

SN35 Design

SN35 (1 3/8'') New Design

  • Rust-resistant coating
  • Noise-reducing design
  • Economical and practical
  • Low maintenance cost
  • Full length backing horizontal stile

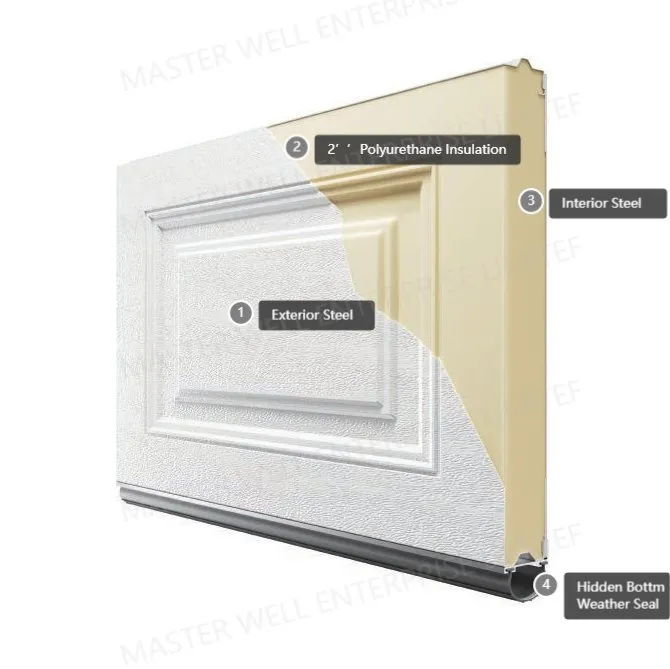

SN50 Design

SN50 (2'') Classical Design

  • Efficient buffering protection
  • Strong regional adaptability
  • Thermal insulation
  • Energy saving and comfortable
  • Good sealing performance
Door Components & Parts

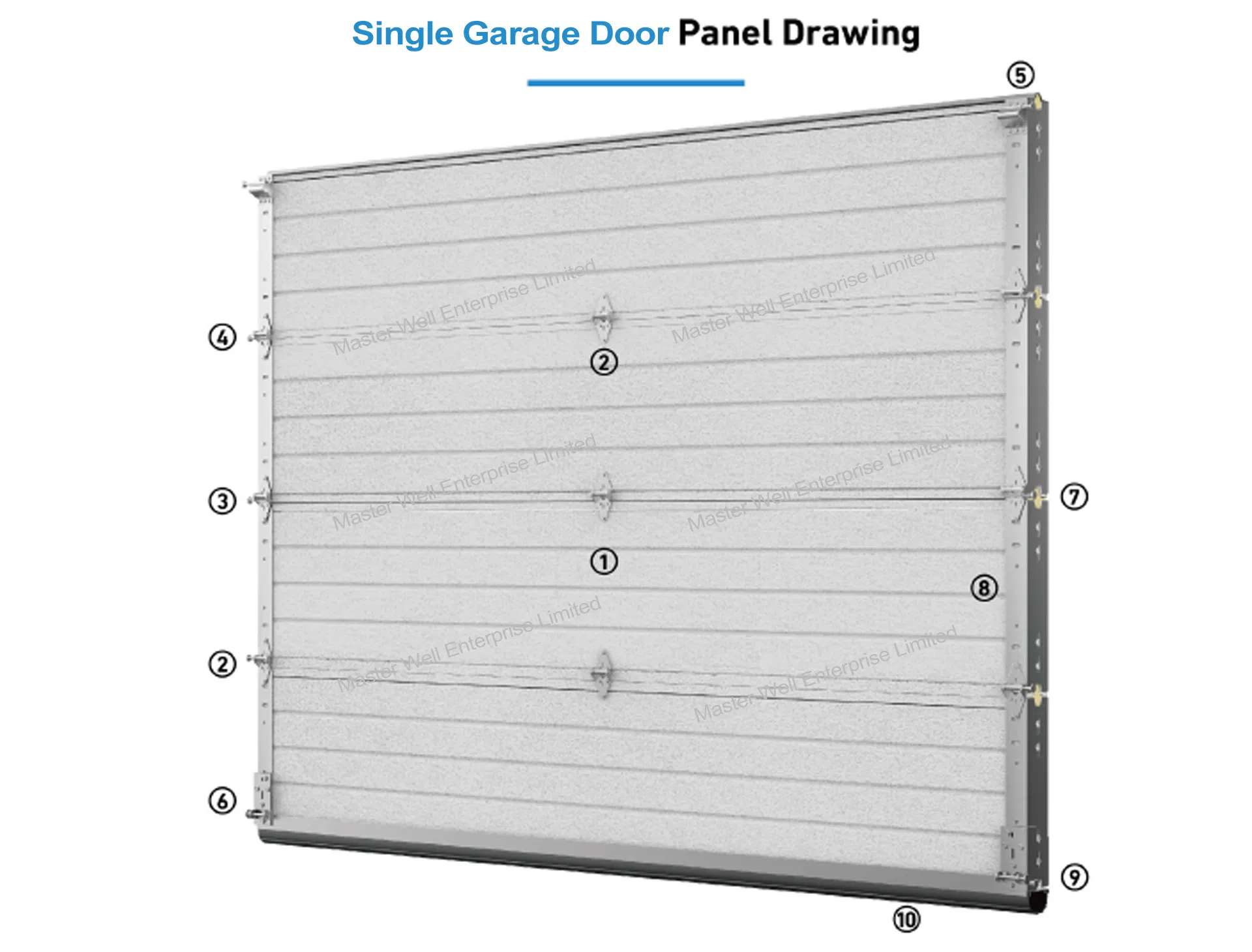

Door Components
1. Door Panel6. Bottom Roller Bracket
2. #1 Hinge7. Nylon Roller
3. #2 Hinge8. Side Cap
4. #3 Hinge9. Aluminum Bottom Seal
5. Top Roller Bracket10. Bottom Rubber Seal

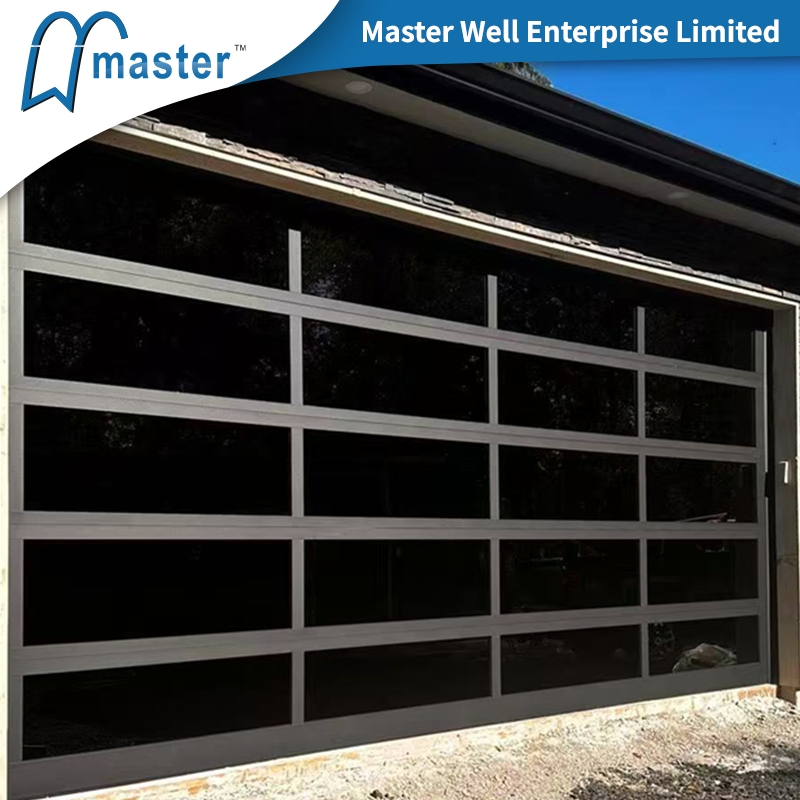

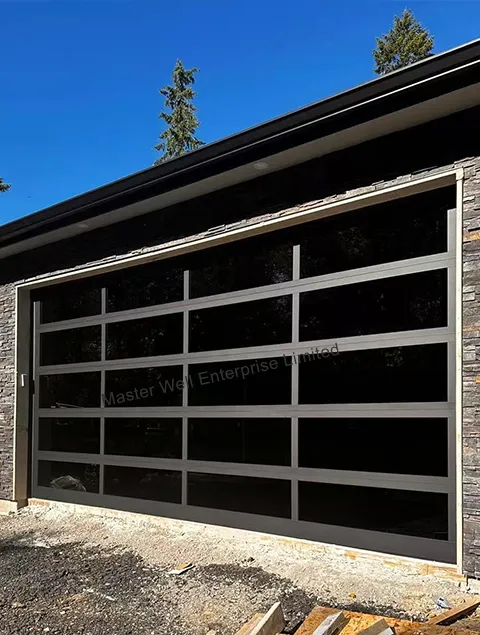

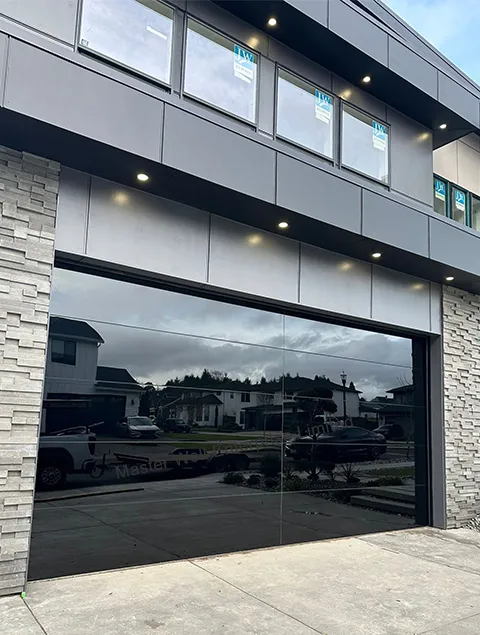

All Glass Garage Door

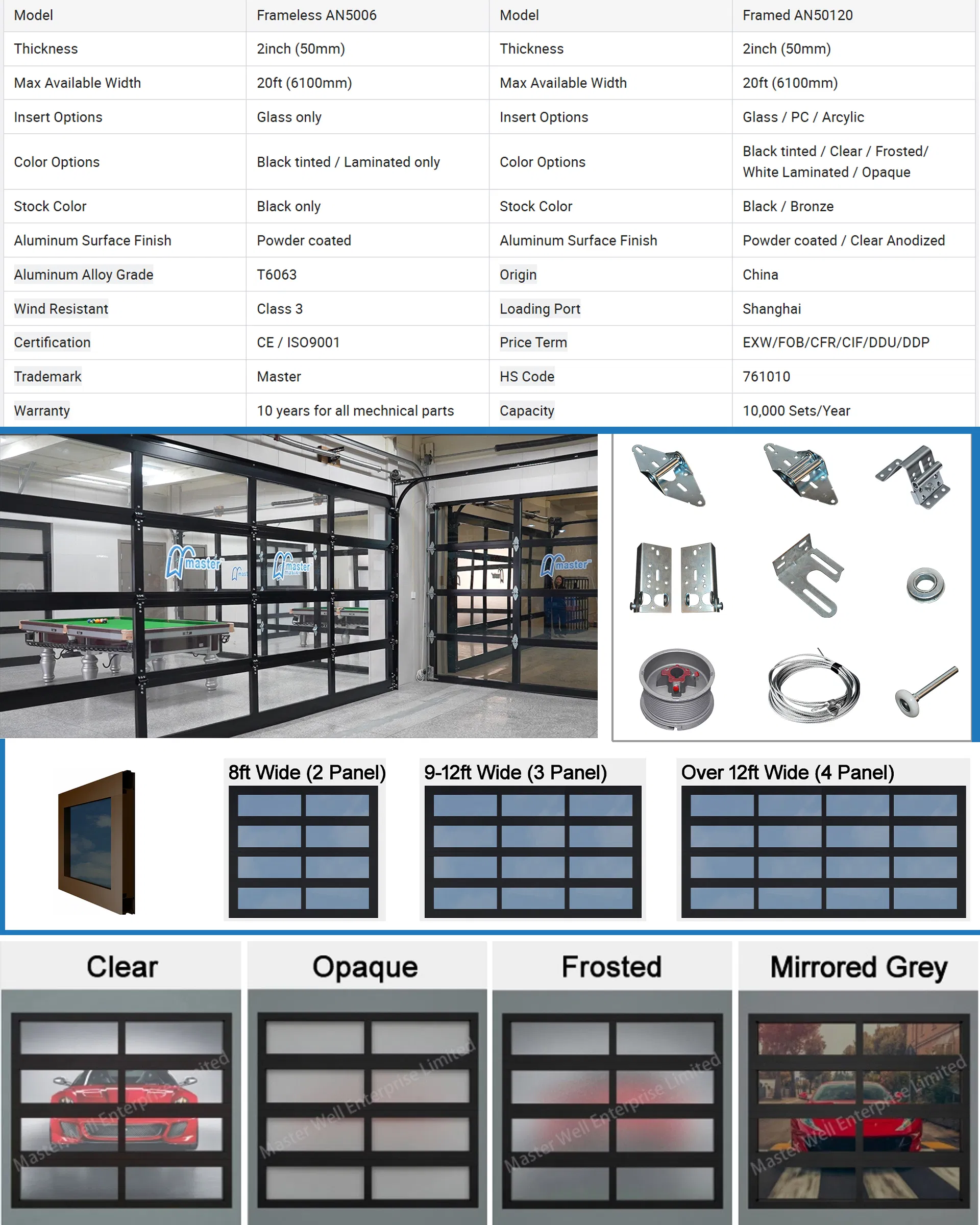

Glass Door Detail
Packing & Delivery
Packaging Details: Carton Box / Wood Case
Package Size: 200.00cm * 50.00cm * 50.00cm
Package Gross Weight: 150.000kg
Packing Process
Workshop & Quality Control

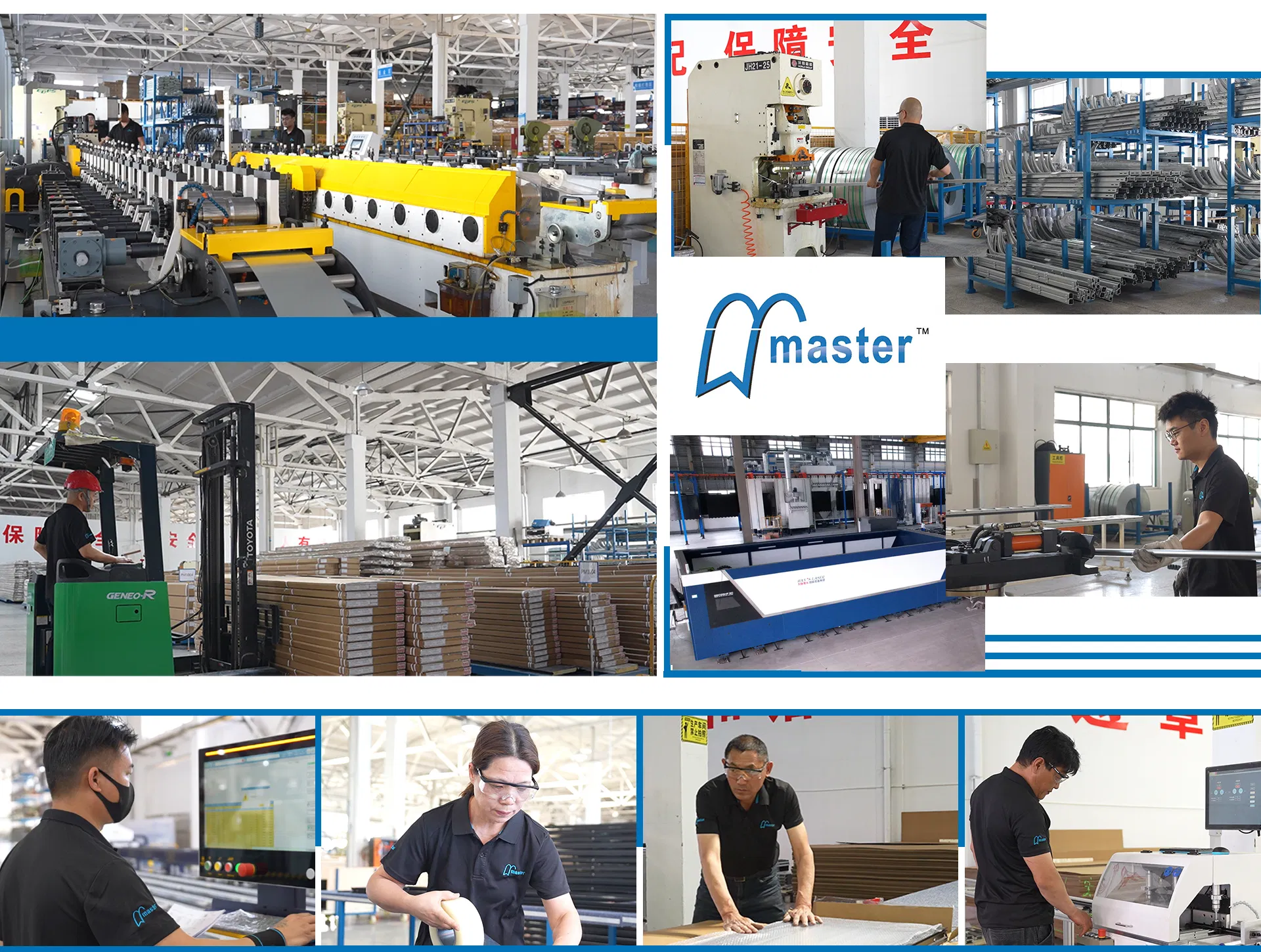

Workshop
Certifications
Certifications
Related Products
FAQ
Q1: What is your MOQ? A: No min order for garage door panel. We also suggest wooden cases package for protection during shipment.
Q2: What is the Max available size of the panels? A: The max length of panels can be 12M. The max width of panels is 550mm, adjustable.
Q3: Can I get a sample of garage door for quality check? A: Sample is available.
Q4: How can I get a price of needed garage door? A: Please give the exactly size and quantity of your required door. We can give you a detail quotation based on your requirements.
Q5: How to install your product, is it difficult? A: Easy to install, just screw, no welding. Installation video can be supplied. We also offer on-site installation guide services if you need.
Q6: Do you produce other products? A: Yes, we also produce Glass aluminum sectional Door, Industrial door, High speed door, Rolling shutter door, Dock leveller, and Dock seal.
