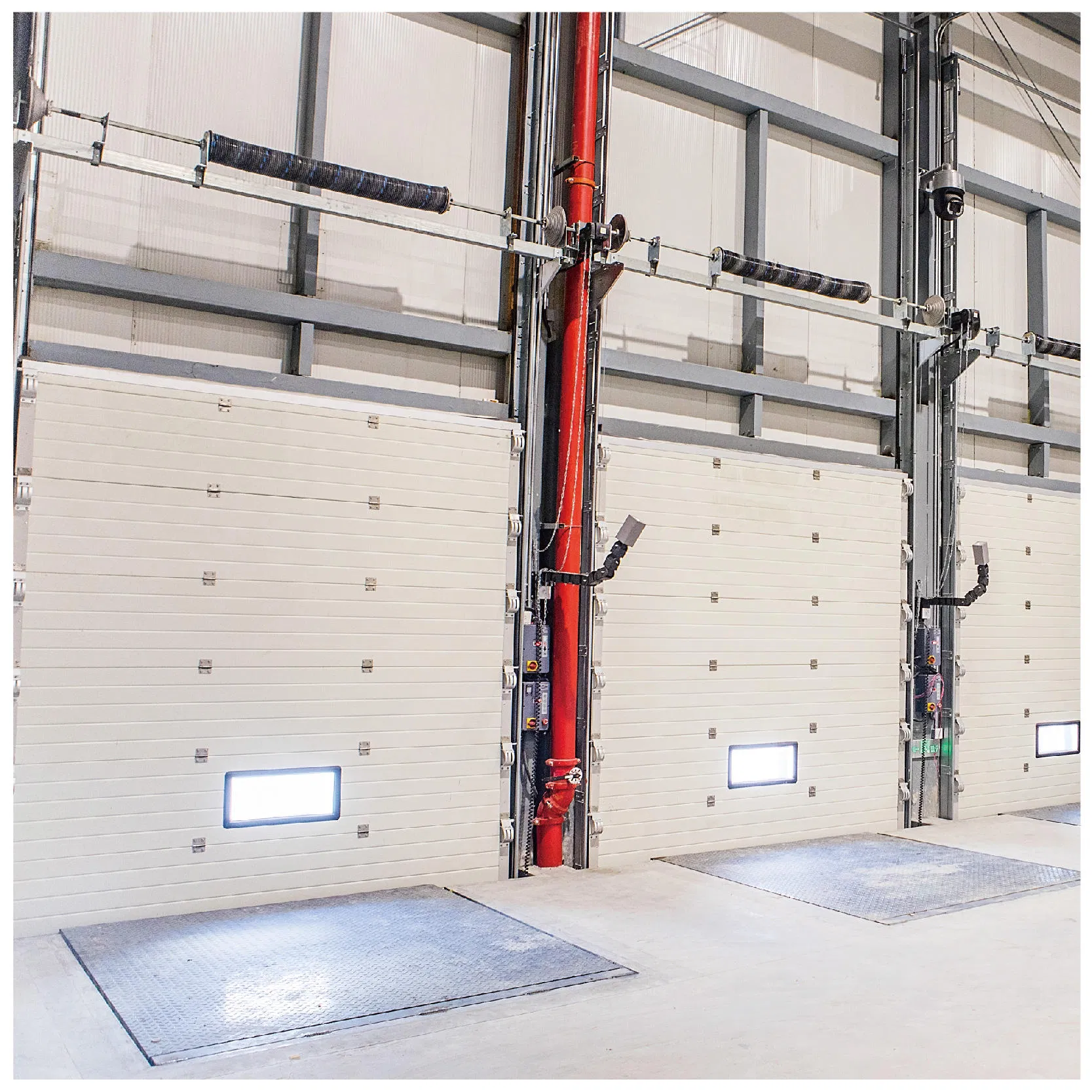

Fastlink Commercial Cold Storage Panel Lift Garage Overhead Insulated Sectional Doors

1 / 5

Fastlink Commercial Cold Storage Panel Lift Garage Overhead Insulated Sectional Doors

Customization:	Available
After-sales Service:	2year
Warranty:	1 Yearg

Send Inquiry

Product Description

Basic Specifications

Model

SSD-CAV

Material

Aluminum / Steel Alloy

Type

Sliding Sectional

Function

Fire Proofing / Thermal Insulation

Certification

TUV, RoHS, CE, UL

Wind Resistance

700pa (Grade 1)

Panel Thickness

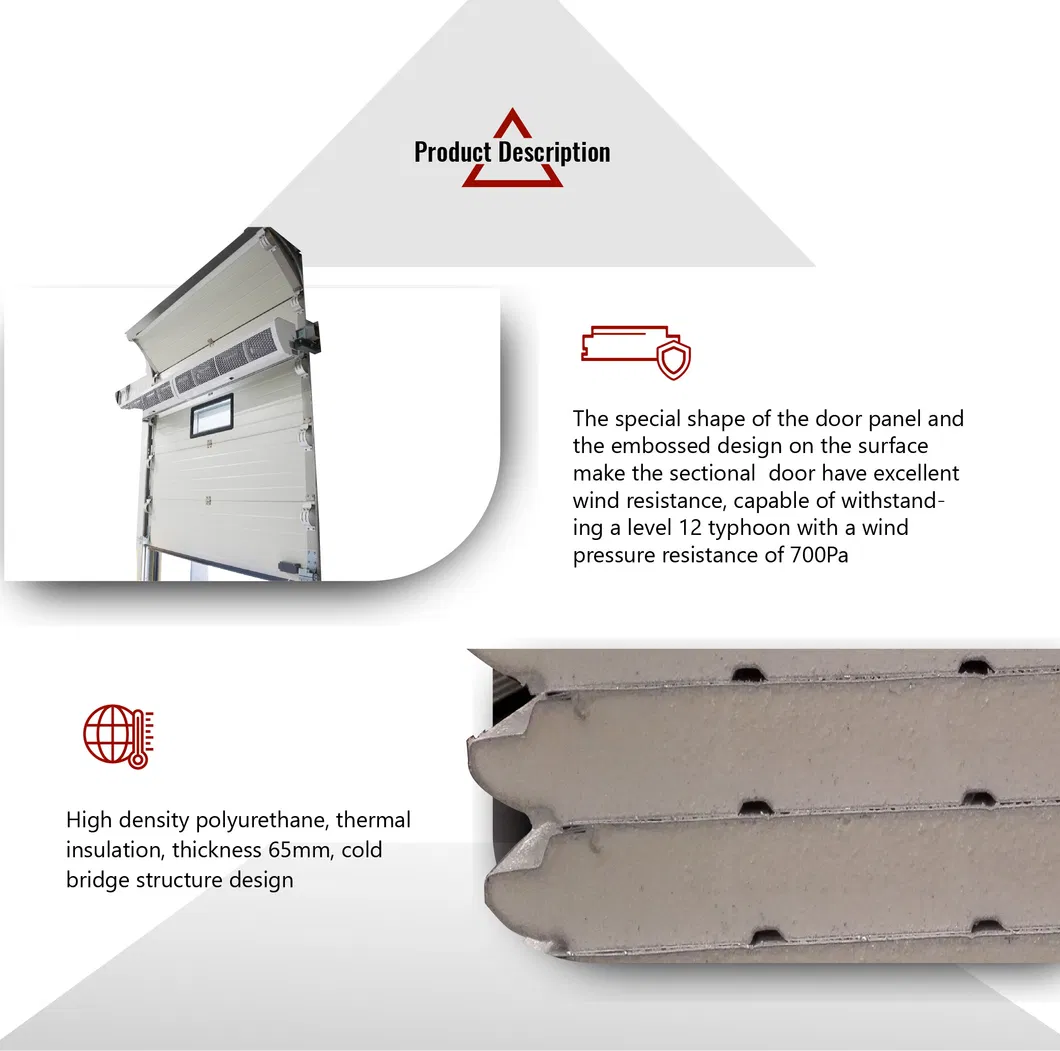

PU Sandwich Panel 42mm-65mm

Operation

Electric / Manual

Product Overview

🛡️ Key Protective Features

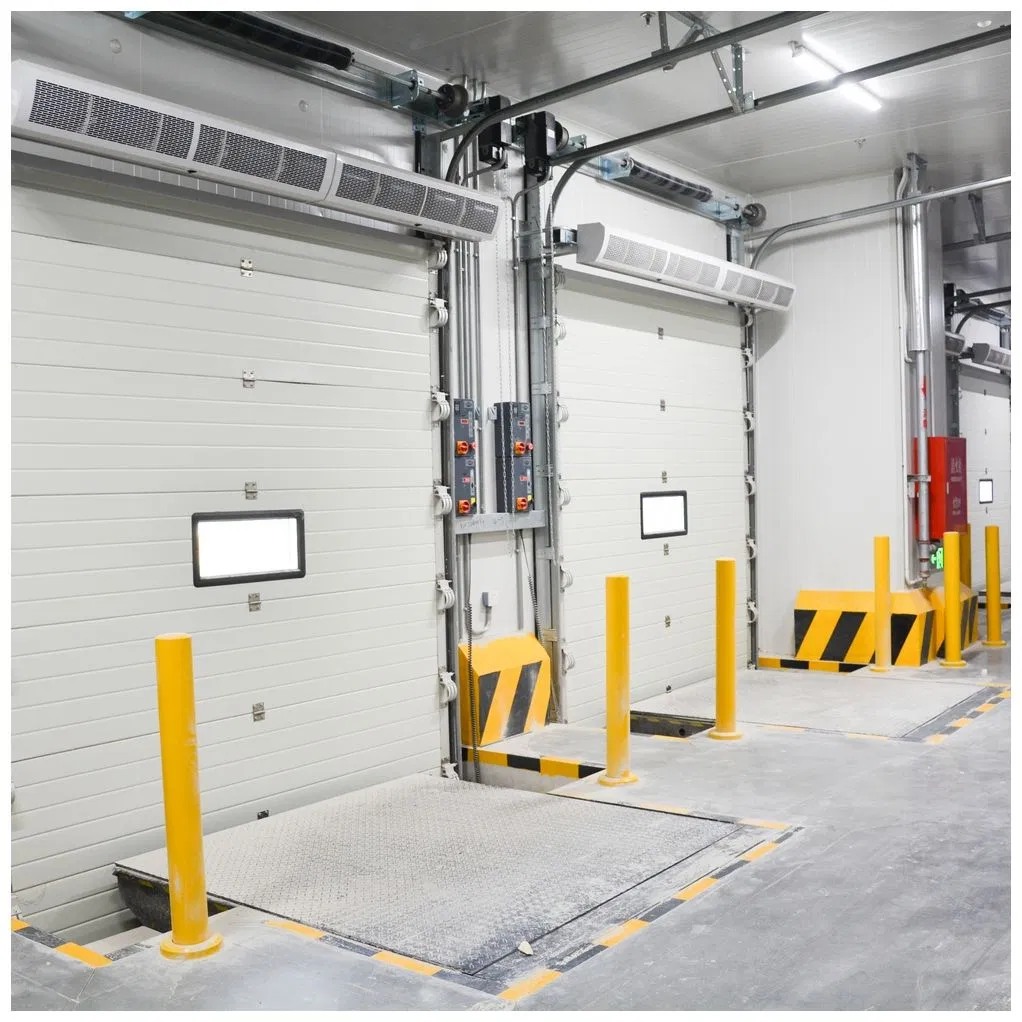

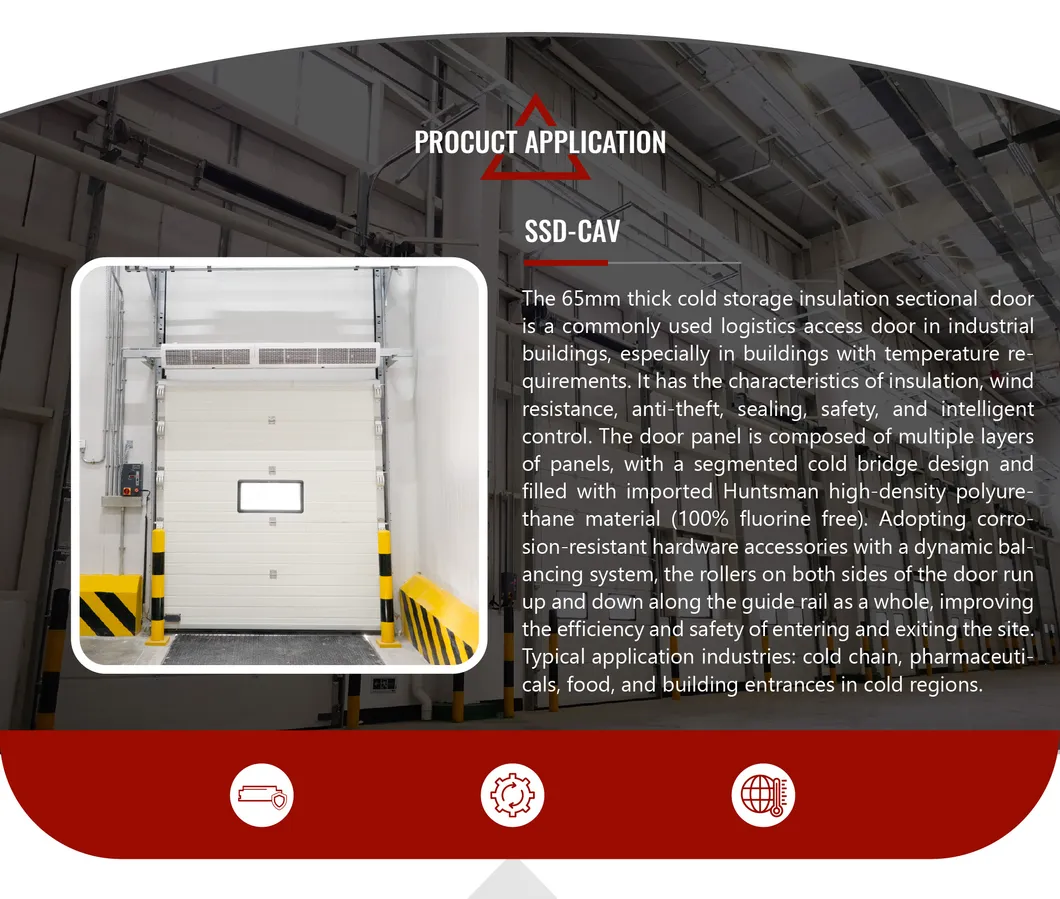

Designed for industrial plants and cold storage warehousing, this door system features a unique cold-breaking structure. It includes comprehensive safety considerations: bottom rebound sensors, anti-breakage protection for steel wire ropes and springs, and an anti-pinch panel design.

Attribute	Details
Industry Type	Industrial Door / Cold Storage Sectional Door
Material Composition	Freon-free Polyurethane (Density: 48kg/m³), Steel/Aluminum skin
Thermal Property	K=0.7W/(m².K)
Air Tightness	Grade 7 (GB/T 7106-2008)

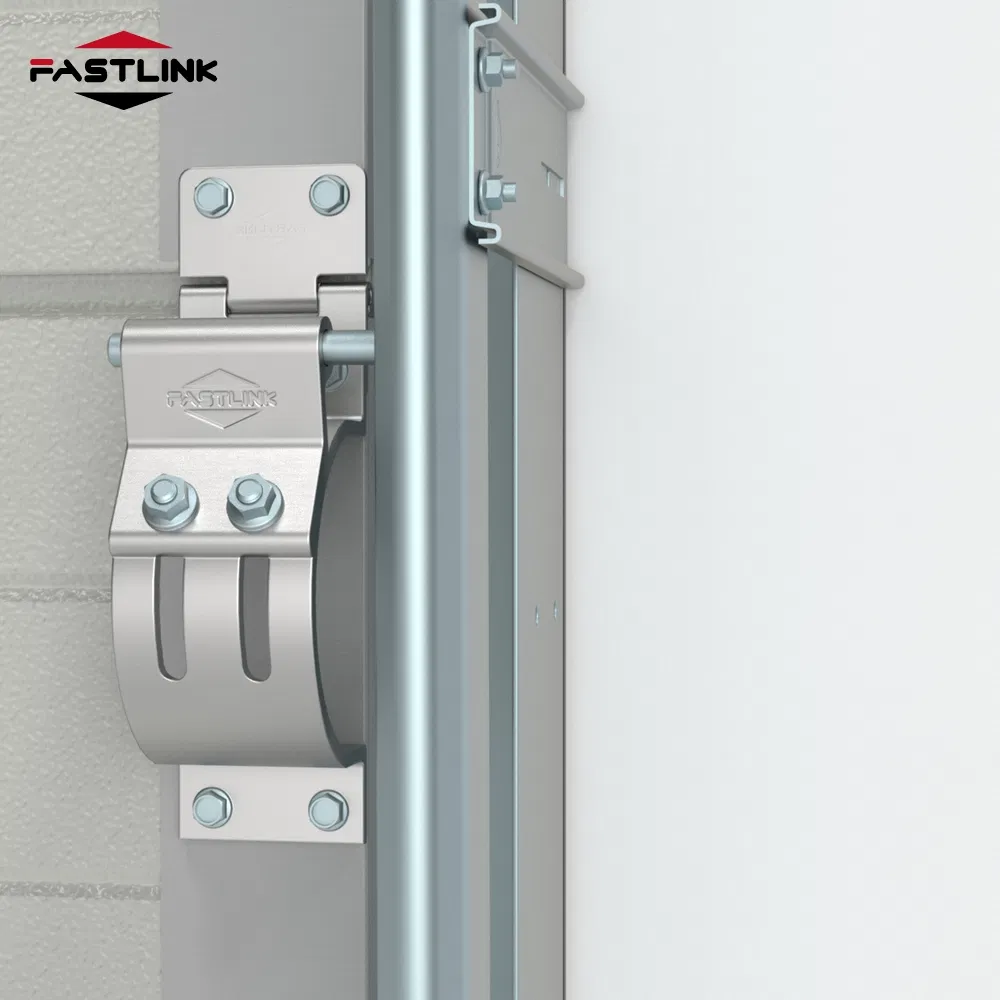

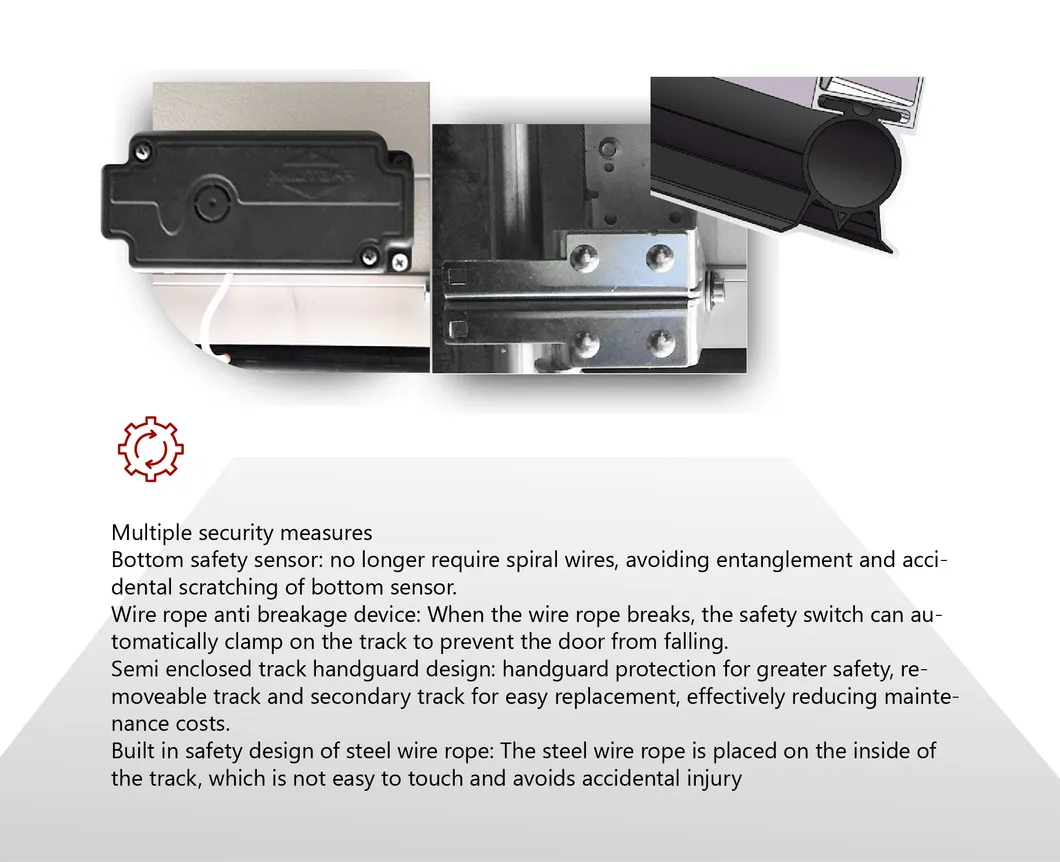

Safety Devices	Wire rope anti-breaking device, spring anti-breakage, infra-red safety (optional)

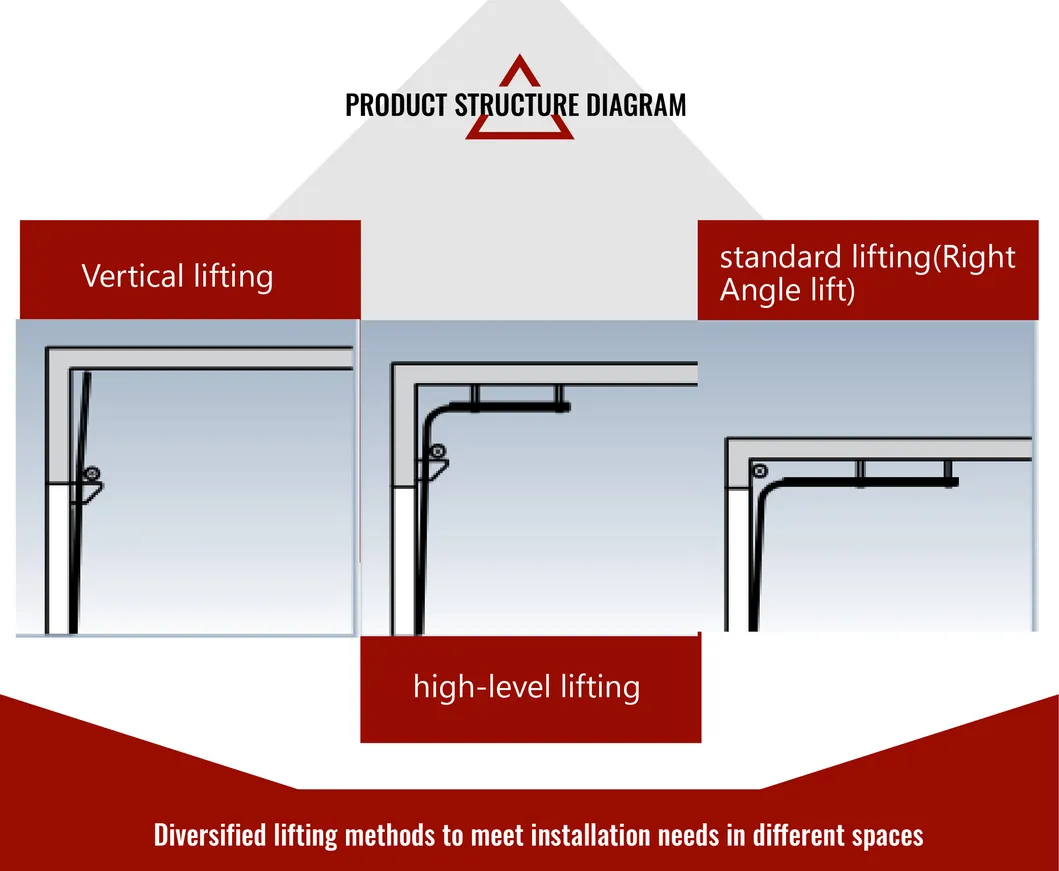

Lifting Modes	Vertical Lift / High Lift / Standard Lift
Operating Speed	0.25m/s

Technical & Design Details

⚡ Intelligent Control System

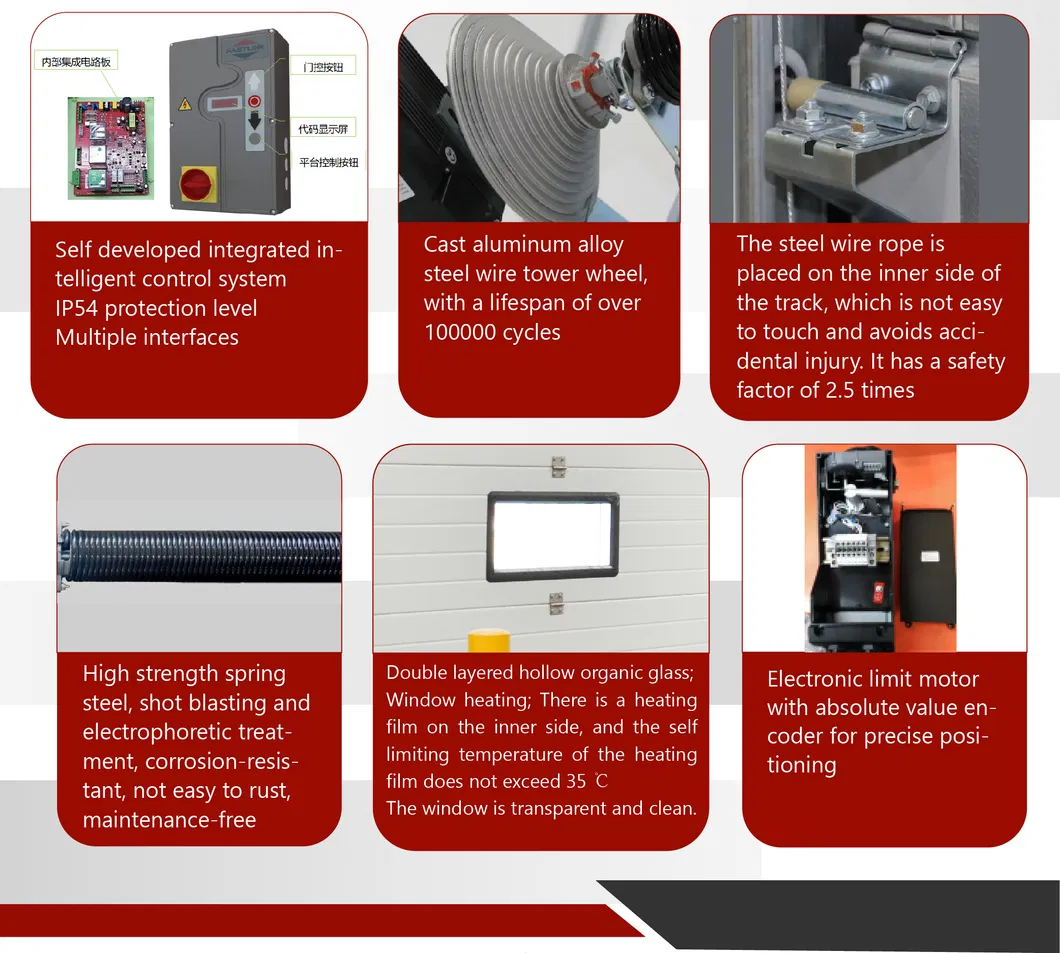

The electronic limit motor features an absolute encoder for precise positioning. The control box displays fault codes, operation status, and supports fire linkage and interlock functions for maximum industrial security.

Application & Environment

Frequently Asked Questions

What environments are suitable for these insulated sectional doors?

The unique cold-breaking structure and sealing design allow use in cold storage environments above 0°C, and natural environments as low as -30°C, providing excellent thermal insulation.

Is the sectional door safe for daily industrial use?

Yes, it features CE certification and multiple safety systems, including bottom resistance sensors, anti-breakage protection for springs/cables, and anti-pinch panel designs.

How does it compare to a rolling shutter door in high winds?

Sectional doors offer significantly higher wind resistance (up to 700Pa) compared to thin rolling shutter curtains (usually 250Pa), making them ideal for coastal areas prone to typhoons.

What is the minimum installation space required above the opening?

A minimum headroom space of 500mm is required for standard installation.

Can these doors be used in residential garages?

As long as there is sufficient installation space (headroom and side room), these industrial-grade doors can be utilized for high-end residential vehicle access.

What is the expected service life of the door?

With proper usage and regular maintenance, these sectional doors are designed to last for more than 10 years.
