Slander Door
Slander Door
We are a national high-tech enterprise founded in 1993, dedicated to the R&D, production, sales, and service of energy-saving thermal insulation materials. Our focus includes sandwich panels for industrial building maintenance and cold storage enclosure systems. We provide global customers with a full series of industrial doors, cold storage doors, and logistics loading equipment, offering intelligent solutions for logistics loading areas.

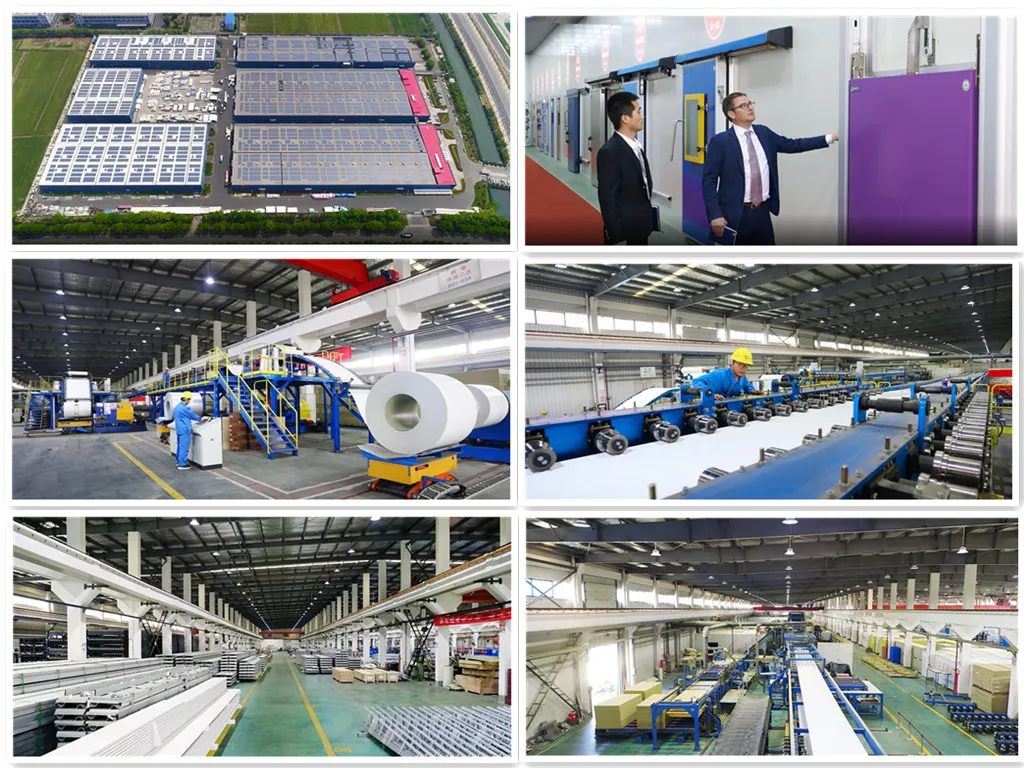

With internationally advanced fully automatic continuous production lines, we maintain an annual capacity of 2 million square meters of insulation panels and over 20,000 sets of industrial and cold storage doors. Our products meet the diverse needs of logistics real estate and cold chain warehousing development worldwide.
Formed by one-time constant temperature continuous foaming with fluorine-free polyurethane. Features high adhesion with surface steel plates, thermal insulation coefficient K≤0.5W/m2ºC, and density ≥45kg/m³. The 0.5mm Bao-Steel galvanized panels are treated with electrostatic polyester paint to ensure color durability for over 15 years.

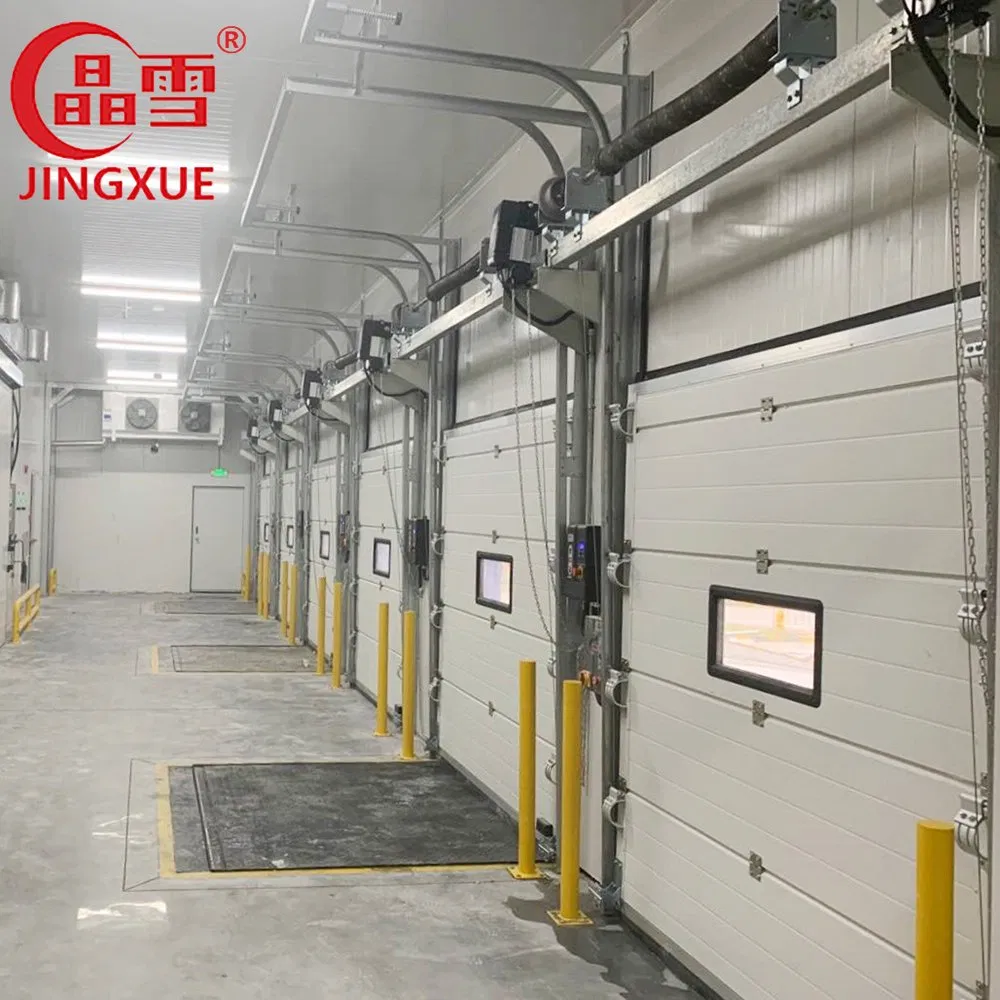

Equipped with an Electronic Limiting Motor (380V/220V) displaying fault codes and cycle counts. Includes temperature-sensitive relay and overload protection. Features a manual sprocket for safety, a standard wireless remote control (100m range), and an operating speed of approximately 250mm/s.
The system uses 60Si2Mn oil-tempered torsion springs, precision-engineered for a minimum of 30,000 cycles. Safety devices include broken cable protection, broken spring protection (stops within 20cm), and wireless safety airbags for obstruction rebound.
| Category | Technical Specifications |
|---|---|
| Panel | Pinch-resistant, 42mm thickness, 500mm height, Fire rating B1 |
| Tracks | 380mm radius, 2mm hot-dipped galvanized steel |
| Hardware | SUS304 hinges, Nylon 66 rollers, Aviation steel rope |
| Sealing | Side, Bottom, and Top high-density airtight strips |
| Lifting | Standard / Vertical / High Lifting options |
| Warranty | 3 Years |
Packing: Sectional doors are packed in seaworthy wooden cases. Panels and accessories (motors, control boxes) are packed separately for protection.
Shipping: Standard terms include EXW, FOB, C&F, CIF, and DDP. Typical lead time is 2-4 weeks after order confirmation.
