Slander Door
Slander Door
| Model | OTMAKER-RD2 |
| Material | Aluminum Alloy, Stainless Steel |
| Type | Revolving (Induced Opening) |
| Special Function | High Security |
| Color | Customized Available |
| Certification | CCC, ISO9001, RoHS, CE |
| Surface Finishing | Powder Coating, Anodized |
| Working Voltage | AC220V±10% 50/60Hz |
| Power | Drive Unit 220-600W + Lighting 100W |
| Inverter | Multi-Level Frequency Control |

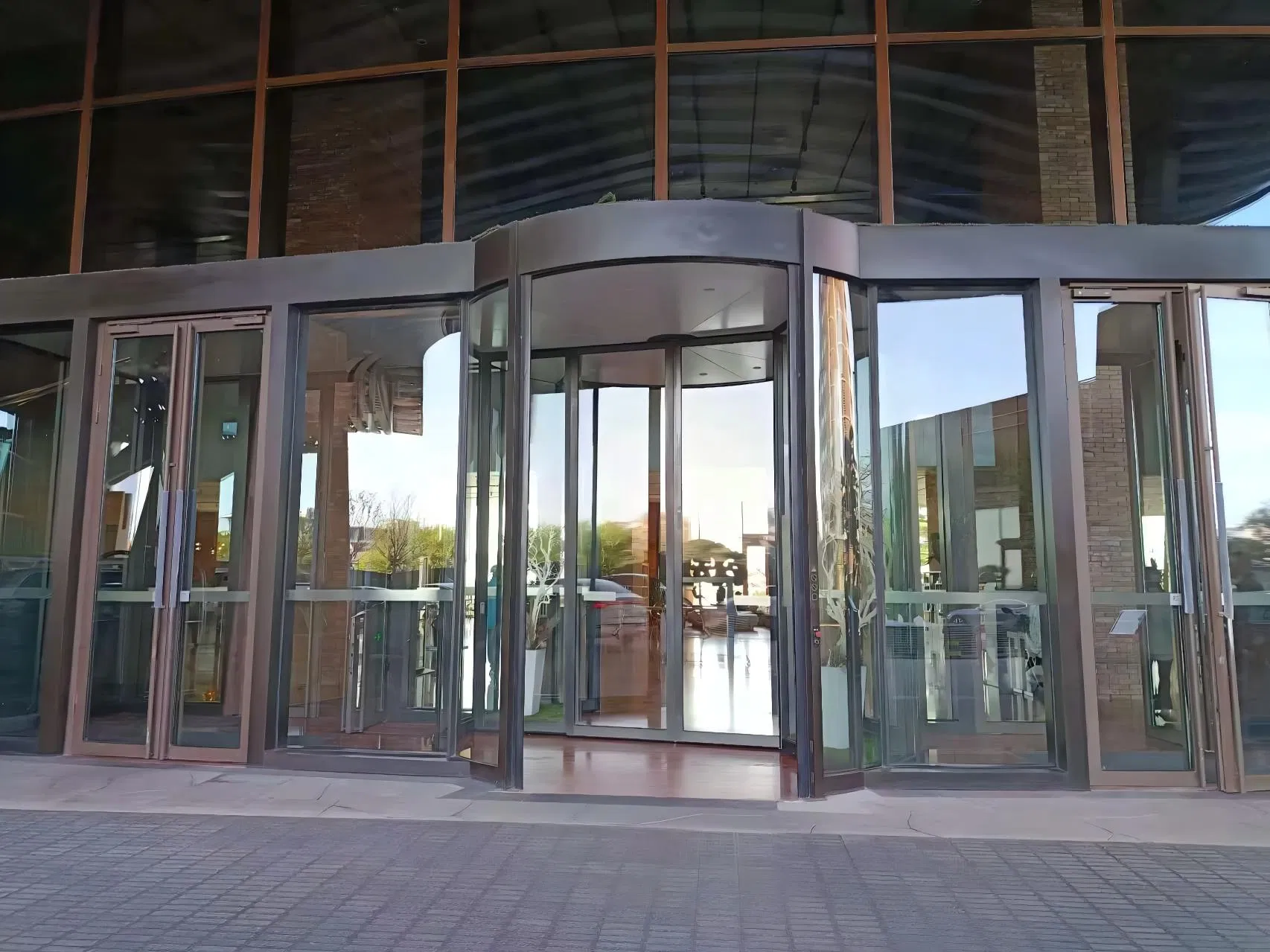

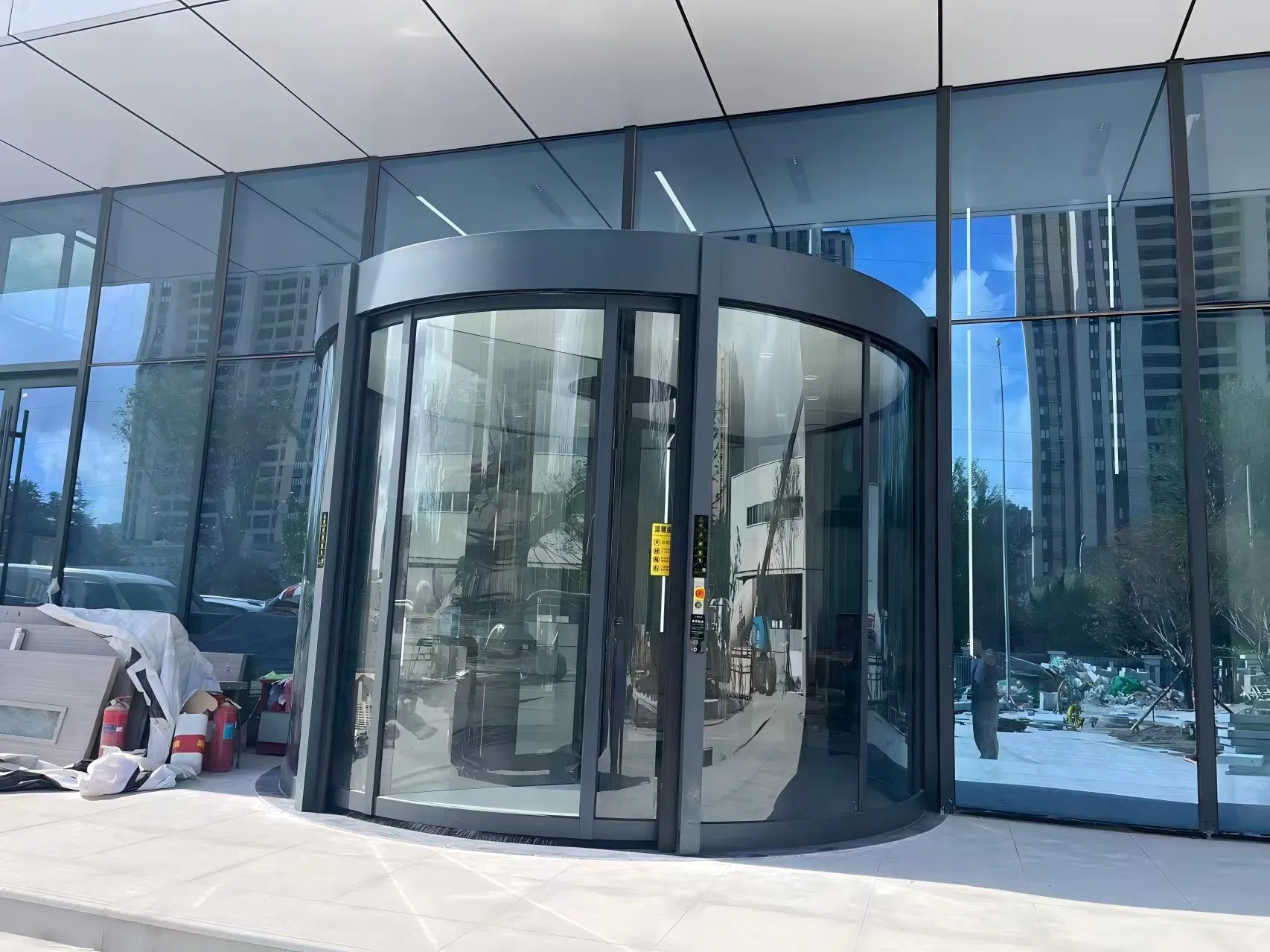

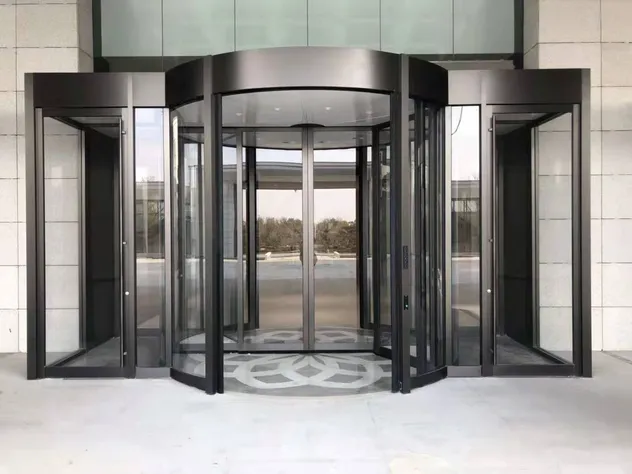

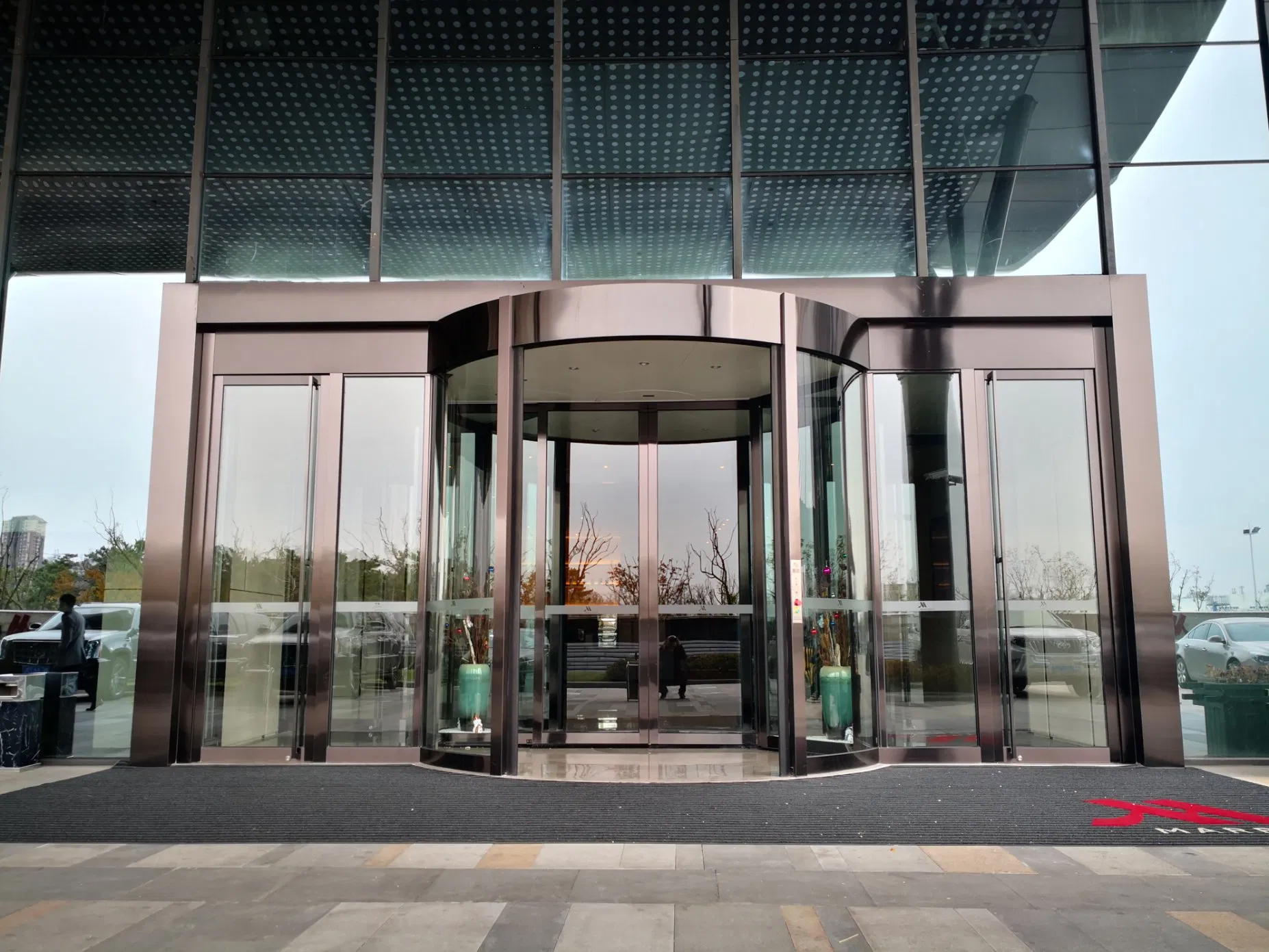

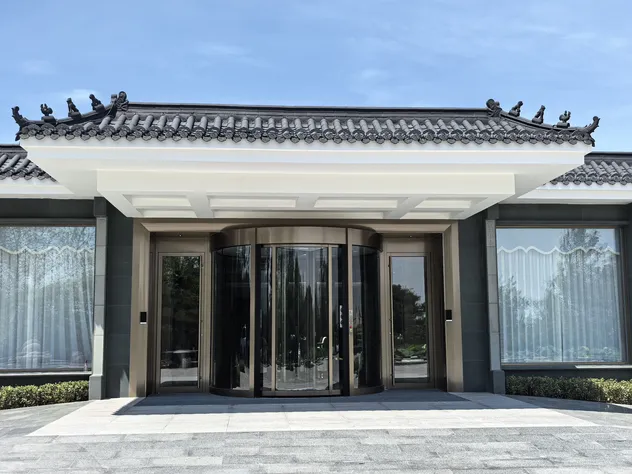

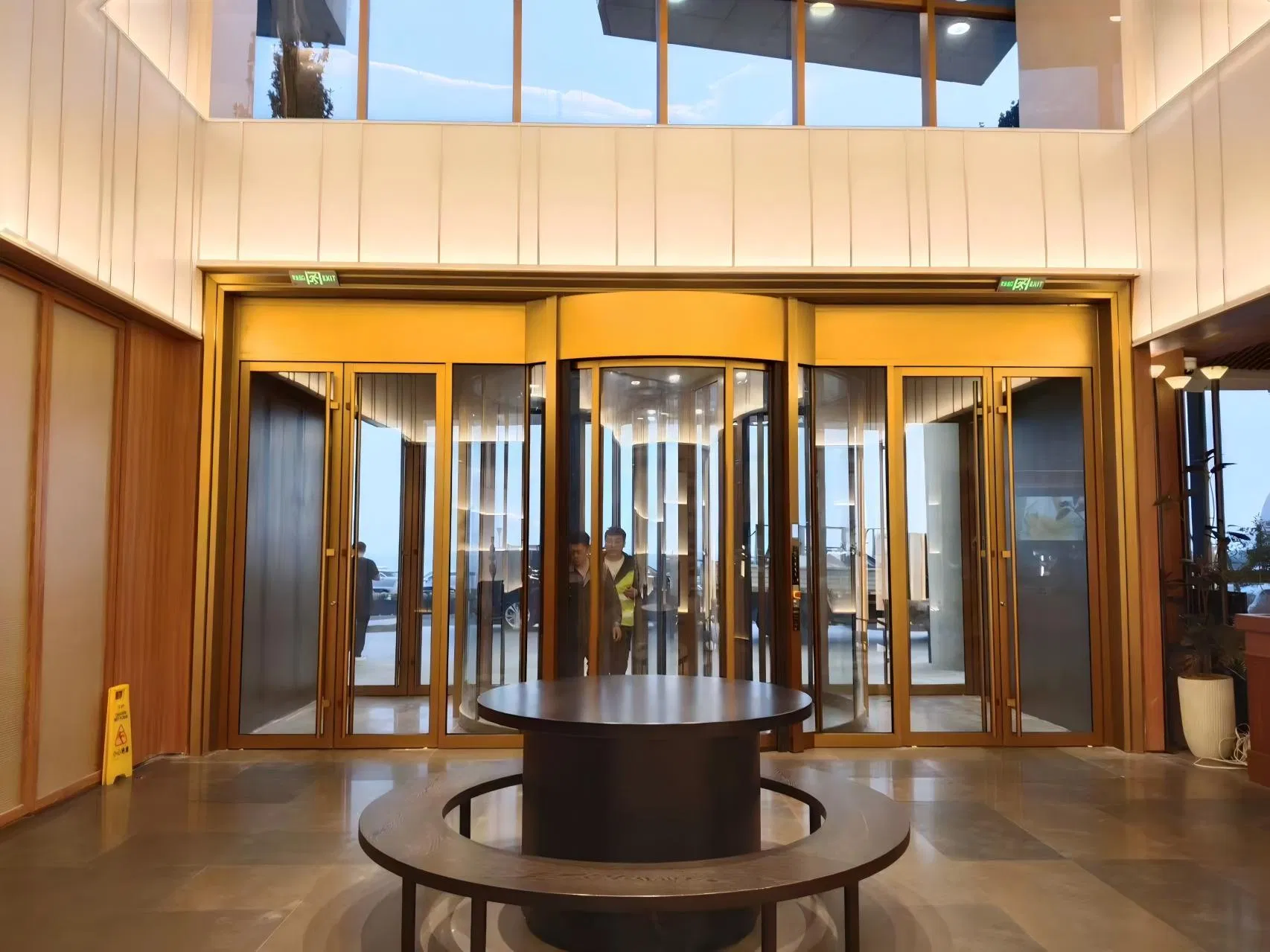

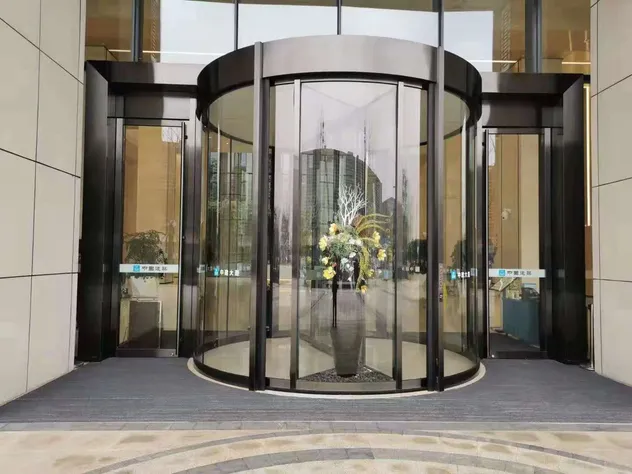

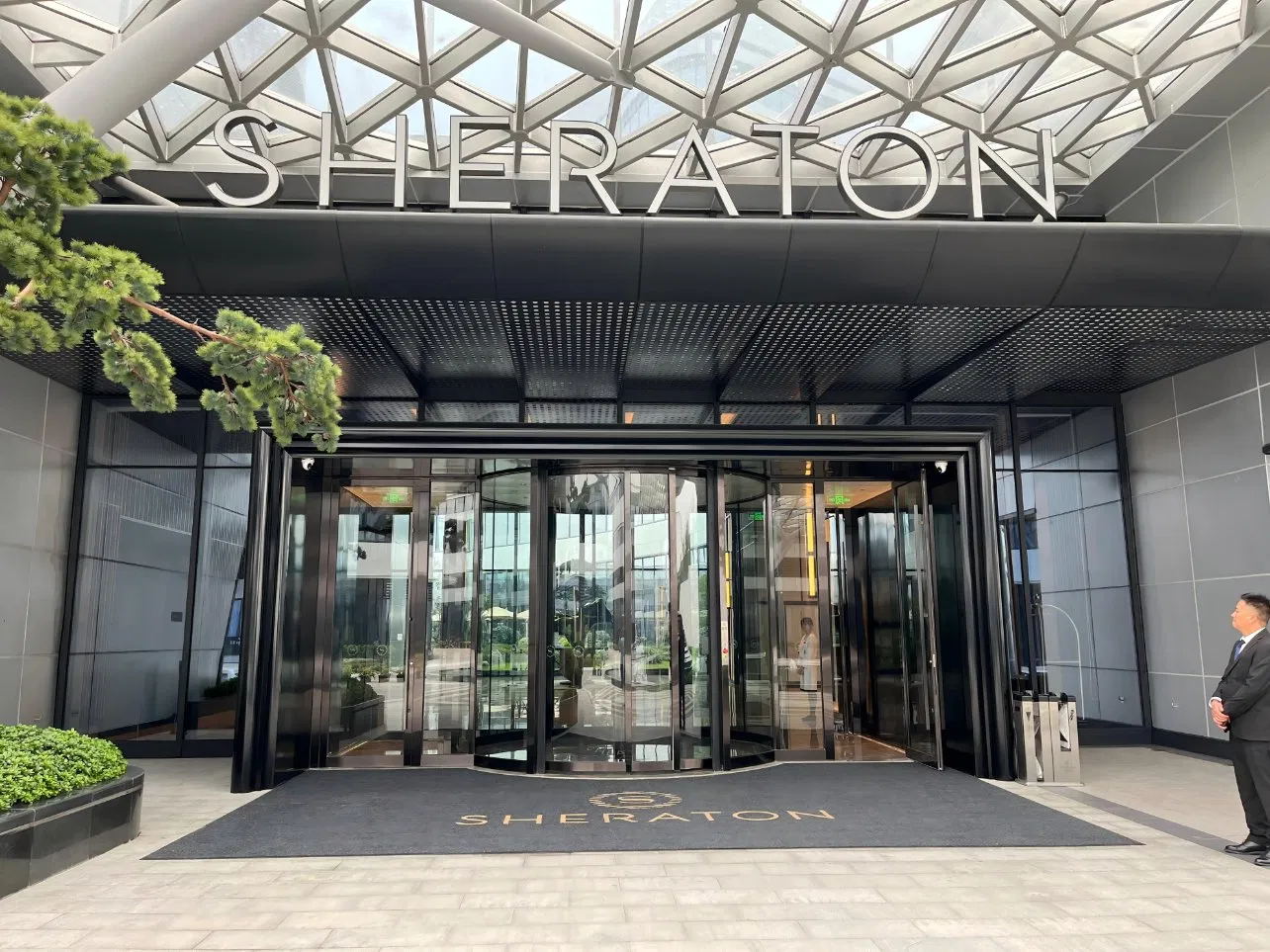

Two-Wing Automatic Revolving Door Solution
The 2-Wing Automatic Revolving Door is a premium entrance solution featuring a "3-in-1" functionality: Revolving Door, Sliding Door, and Balanced Door. This design provides an imposing aesthetic for commercial buildings while acting as a highly efficient airlock to minimize heating and cooling losses.
Safety is paramount: the system includes electromagnetic locks that release automatically during power loss. The central evacuation barrel and sliding mechanisms allow for quick emergency egress, ensuring occupant safety without compromising the door structure.
| Operating Voltage | AC220V/50Hz |
| Startup Power | <260W |
| Normal Operation | 3-4 revolutions/minute |
| Slow Speed | 1.5 revolutions/minute |
| Revolving Capacity | 12 people/minute |
| Sliding Capacity | 22 people/minute |
| PLC Model | FPX0L-30R (100-240V AC) |
| Inverter | BFV00075GK, 0.75 kW |
| Touch Screen | AIG02GQ02D (5V DC) |
