China Radar Sensor Automatic High Speed Fabric Door for Clean Room (HF-1045)
China Radar Sensor Automatic High Speed Fabric Door for Clean Room (HF-1045)
China Radar Sensor Automatic High Speed Fabric Door for Clean Room (HF-1045)
China Radar Sensor Automatic High Speed Fabric Door for Clean Room (HF-1045)
China Radar Sensor Automatic High Speed Fabric Door for Clean Room (HF-1045)
1 / 5
China Radar Sensor Automatic High Speed Fabric Door for Clean Room (HF-1045)
China Radar Sensor Automatic High Speed Fabric Door for Clean Room (HF-1045)
China Radar Sensor Automatic High Speed Fabric Door for Clean Room (HF-1045)
China Radar Sensor Automatic High Speed Fabric Door for Clean Room (HF-1045)
China Radar Sensor Automatic High Speed Fabric Door for Clean Room (HF-1045)

China Radar Sensor Automatic High Speed Fabric Door for Clean Room (HF-1045)

Customization: Available
Material: Stainless Steel
Type: Rolling
Send Inquiry

Product Description

Basic Information
Model NO.
HF-1045
Open Style
Rolling
Opening Type
Induced
Special Function
Sound+Temperature+Fire Proofing
Color
Red/Blue/Yellow/Green/Gray/Orange/Transparent
Certification
ISO9001, CE, SGS
Position
Industrial
Surface Finishing
Finished
Door Type
Automatic Rolling Door
Door Frame Material
Stainless Steel or Aluminum Alloy
Curtain
France High Density PVC Fabric
Curtain Thickness
0.8/1.2/1.5mm
Temperature Usage
-35c - +65c
Opening Speed
0.6-1.5m/S
Drive System
German Motor
Control System
Japan Mitsubishi
Product Description
Radar Sensor Automatic high speed Fabric Door for clean room (HF-1045)
  • Frame: 2MM thicknesses cold-roll Stainless steel.
  • Motor: Germany brake motor (outer), power 0.75KW, power supply 220V.
  • Control system: Imported Japan Mitsubishi converter and PLC to control of electric box (150%1HZ).
  • Opening & closing speed: 0.6-1.5m/s (adjustable).
  • Safety Device: Korea Photocell Sensor, emergency stopping reaction when sensing obstacles.
  • Curtain: France high-density polyester fiber with surface coating processing, thickness 0.8MM. Fire-proofing level: German standard DIN75200.
  • Wind resistant: Aluminium alloy Reinforce Girder to increase wind resistant effect.
  • Curtain replacement function: Reinforce Girder loaded between 2 pieces Curtain for easy replacement and cost saving.
  • Transparent window: 1.2MM thickness transparent PVC window, customizable size and location.
  • Controlling way: Push button + radar sensor for maximum convenience.
  • Fault recovery function: System features self-recovery after power cut off.

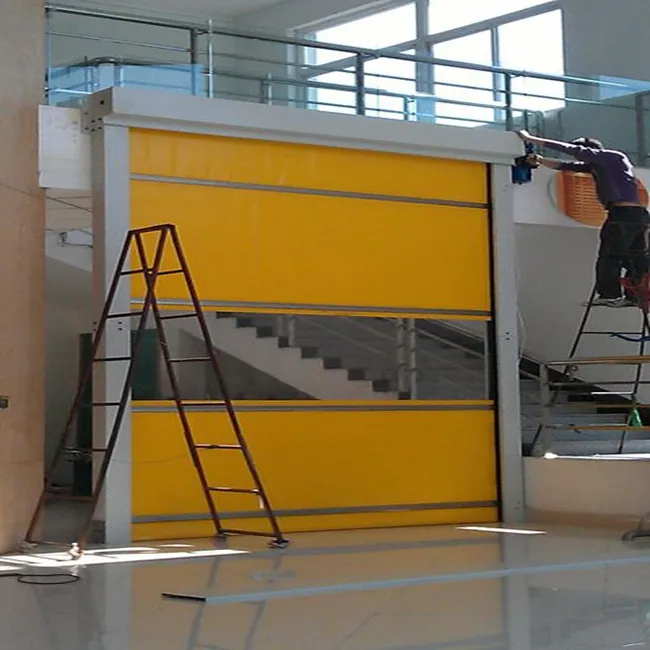

Automatic High Speed Fabric Door 1

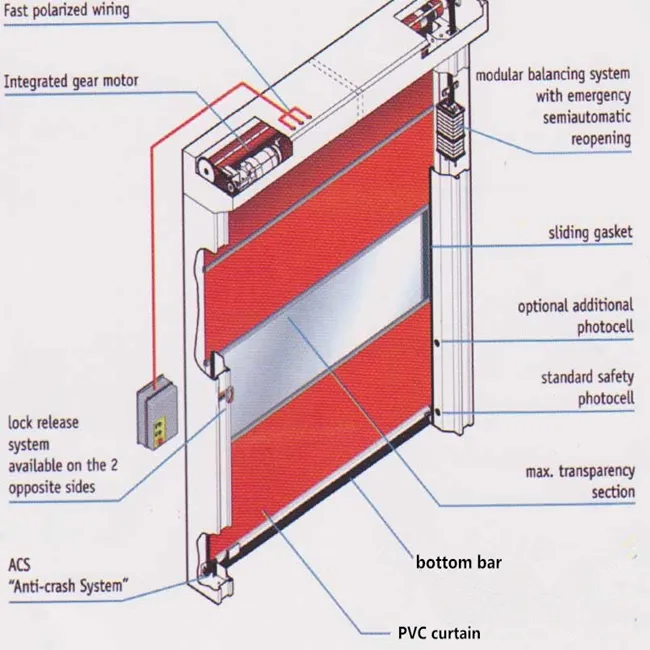

Automatic High Speed Fabric Door 2

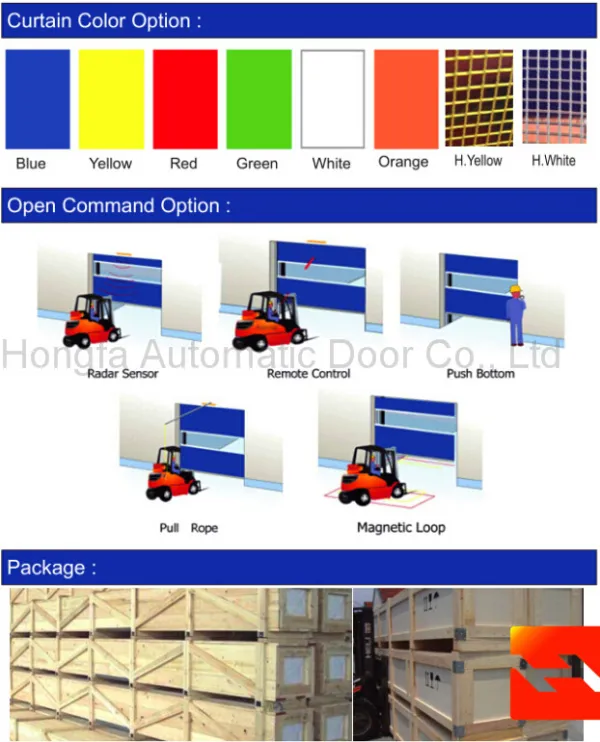

Automatic High Speed Fabric Door 3
Technical Specifications
Component Specification Details
Frame 1. Power Coated Steel / 2. Aluminum Track / 3. Stainless Steel Frame: S.S 201 & S.S 304
Door Curtain 0.8mm~1.5mm Thickness
Motor Choice 1. German / 2. China SEJ / SNMA
Control Panel Japan Mitsubishi / Danmark
Command System Radar Sensor, Magnetic loop, Remote Control, Push button, Rope Switch, etc.
Safety Device 1. Photocell Sensor (Korea Autonics) / 2. Safety edge bottom (Pressure Wave Sensor)
Delivery Time 7 - 10 business days
Package Plywood case or Cardboard, suitable for sea or air freight.
Frequently Asked Questions
What are the payment details?
We require a deposit before production, and the balance must be paid before shipment.
What is the estimated delivery time?
For common orders, the production time is approximately 7 business days once the contract and deposit are confirmed.
What kind of warranty is provided for the doors?
We provide a 12-month warranty for all doors and accessories (excluding man-made damage or natural disasters).
Do you offer OEM or ODM services?
Yes, both OEM and ODM services are available to meet your specific requirements.
What is the Minimum Order Quantity (MOQ)?
We accept orders starting from 1 set as a sample order.
How are the products packaged for shipping?
Products are packed in plywood cases or reinforced cardboard, suitable for safe sea or air freight.
