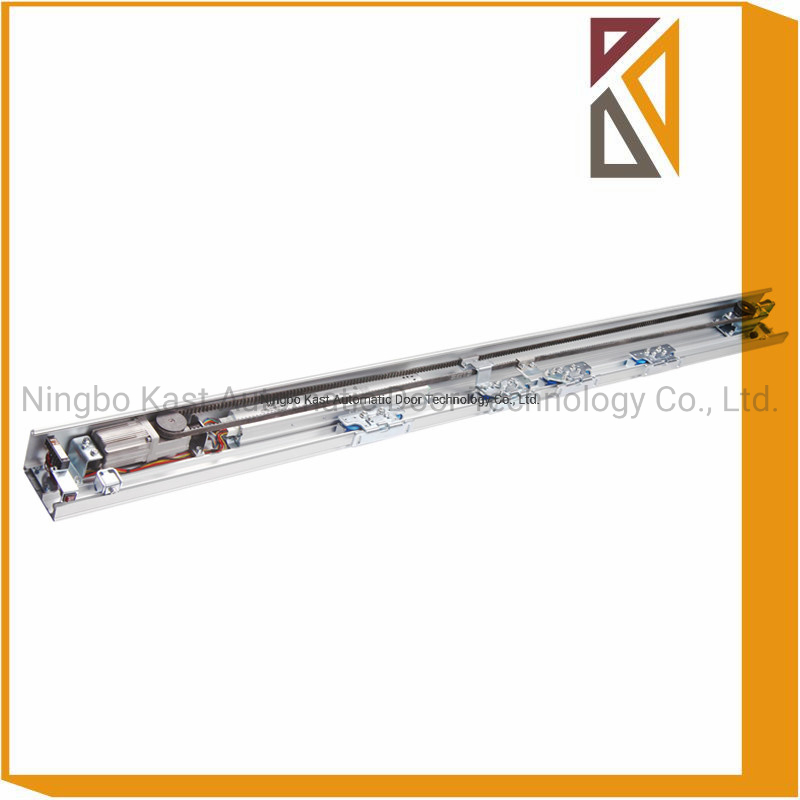

KA-150 for sliding pedestrian doors, hold max 150Kg, designed for normal use for interior and exterior place and is the hot sales in market all the time. Through these years improvement, its technology and quality is very mature.

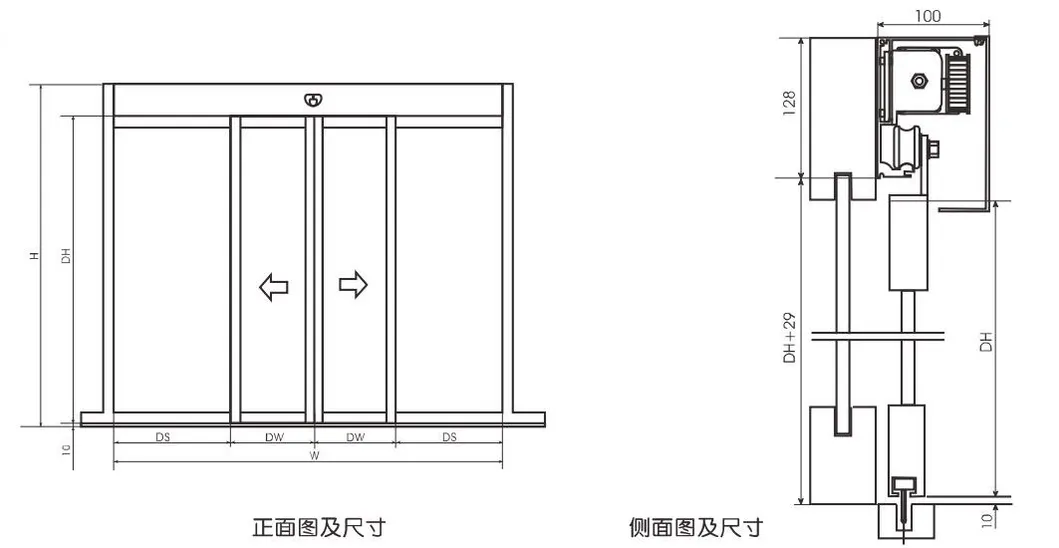

Sectional View
Height 125mm, Depth 100mm track. Its design is very simple and easy to install.
Microcontroller Features
| Microprocessor controller | yes |
| Programs: Off, Automatic, Permanent open, Partial opening, Exit only | yes |
| Emergency open | yes |
| Self-learning | yes |
| Automatic reverse | yes |
| Connection for electro-mechanical locking | yes |
| Connection for light barriers | yes |
| Setting of basic parameters with DIP switch | yes |
| Emergency opening or closing (with battery pack) | yes |
| 24 V/12V output for external consumption | yes |
| Adjustable Speed, open time, initiate force | yes |
Technical Data
| Parameter |
Single Door |
Bi-Parting Door |
| Door width | 700mm-1300mm | 600mm-1250mm |
| Door weight | ≤150kg | ≤150kg x 2 |
| Opening speed | 15cm-50cm/s (adjustable) | 15cm-45cm/s (adjustable) |
| Closing speed | 10cm-45cm/s (adjustable) | 10cm-45cm/s (adjustable) |
| Hold on time | 0-20s |
| Power supply | 110V, 60Hz / 220V, 50Hz |
| Profile size | 4200mm(L) x 150mm(H) x 78mm(W) |
| Adjustable parameter | Start force, Speed, Buffer Speed & Position, Open Time, etc |
Frequently Asked Questions
What is the maximum weight the KA150 can support?
The system is designed to support up to 150kg for a single door leaf or 150kg x 2 for bi-parting door configurations.
Does this motor work with different international voltages?
Yes, the power supply is compatible with a range of 110V to 220V, making it suitable for global use.
Can it be installed on frameless glass doors?
Yes, the KA150 is versatile and can be used for both framed and frameless glass door applications.
What kind of safety features are included?
It features an integrated microcontroller that supports automatic reverse on obstruction, emergency stop, and connections for safety light barriers.
Is the opening speed adjustable?
Absolutely. The opening speed can be adjusted between 15cm/s and 50cm/s depending on your specific requirements.
Where is the KA150 ideally applied?

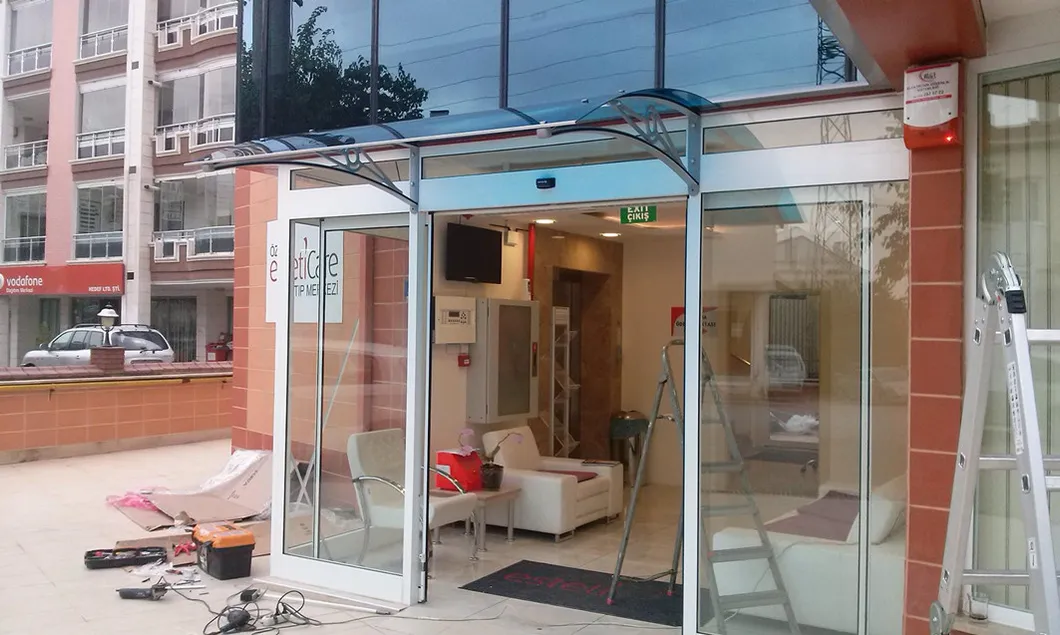

It is perfect for high-traffic interior or exterior locations such as hotels, banks, airports, supermarkets, and retail shops.
