Slander Door
Slander Door

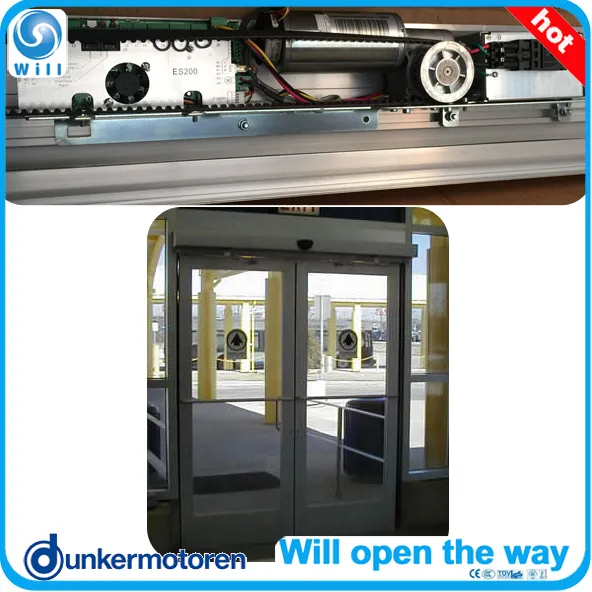

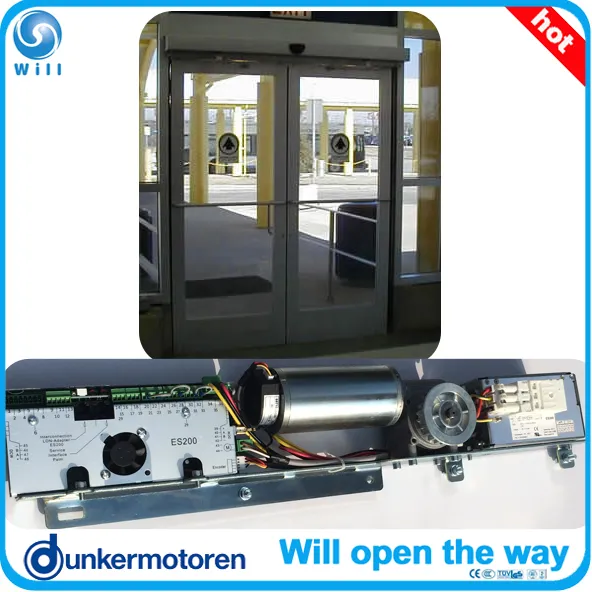

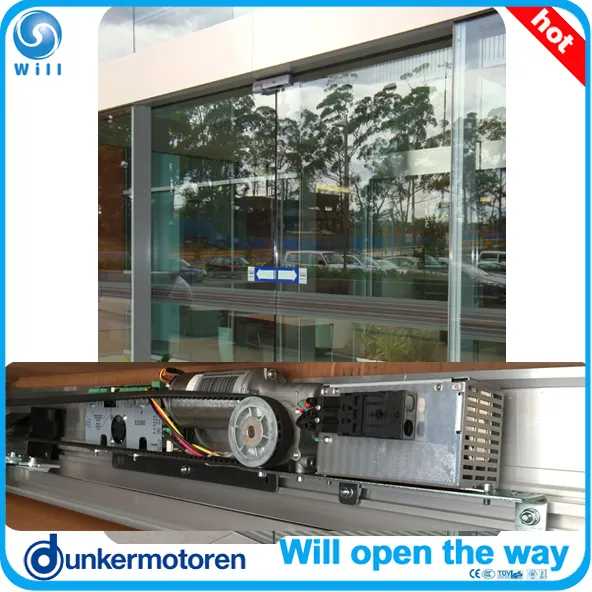

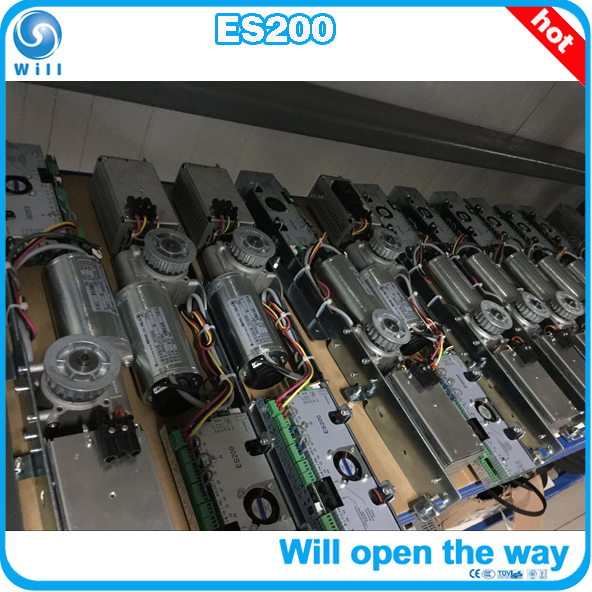

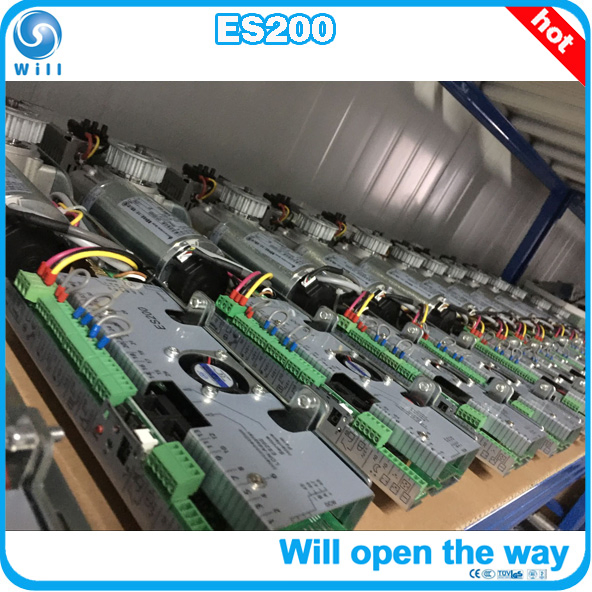

Commercial automatic sliding glass sensor door: Automatic Door Operator with Brush Motor or Germany Dunkermotor ES200. Designed for heavy-duty commercial use, providing reliable and smooth operation for double or single glass sliding doors.
Function 95% similar as Dorma ES200 Easy and works seamlessly with original Dorma ES200 Easy parts.

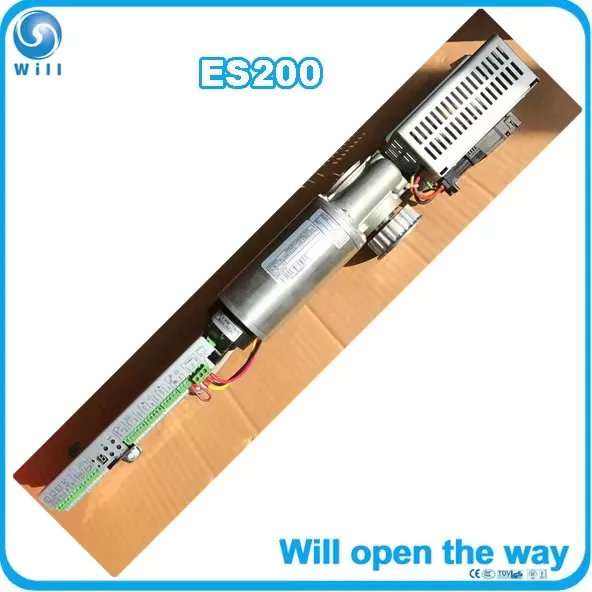

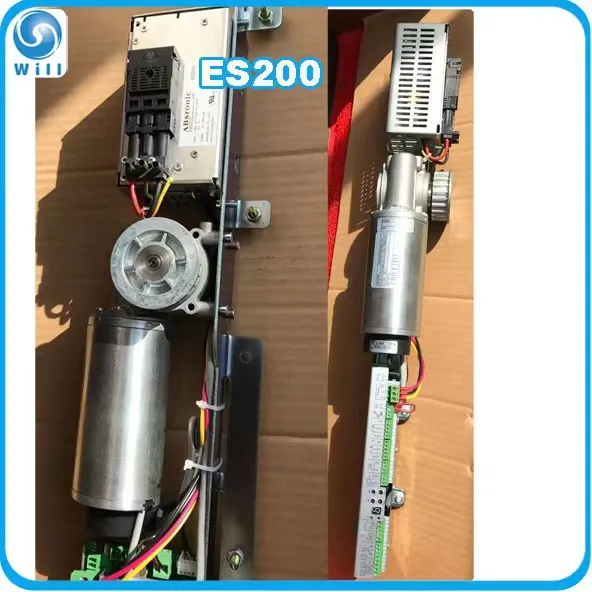

Equipped with Brush Motor or Dunker Motor (99.5W), capable of bearing 2 x 160KG gates.
Drive system is pre-installed before leaving the factory to ensure quick and simple setup.
Engineered for quiet operation with noise levels below 40db, passing one million test cycles.
| Weight of gate (Single/Bi-part) | 1X200KG / 2X120KG (Max up to 2X160KG) |
| Width of gate (Single/Bi-part) | 900-6100MM |

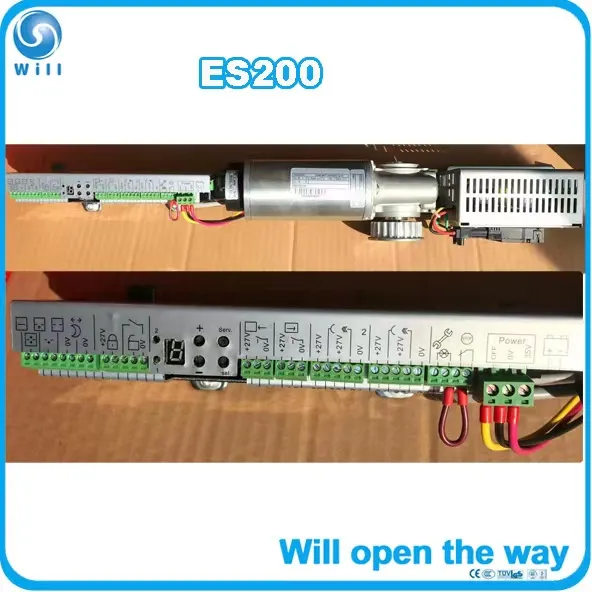

| Master Controller | 32 digital microprocessor |
| Motor Specs | 99.5W 60VDC 2A IP50 |
| Opening / Closing Speed | 300-700mm/s / 300-650mm/s |
| Hold Open Time | 0-10S / 30s |

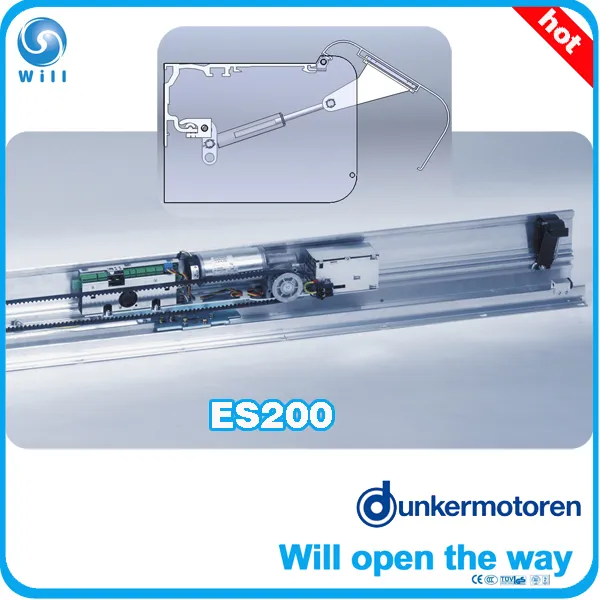

| Rail Dimensions | 8CM (Height) x 16CM (Depth) |
| Power Supply | AC110V-250V 50/60HZ |
| Temperature Range | -15°C to +70°C |
| Protection Degree | IP23 |
• Off
• Automatic
• Permanent Open
• Partial Open
• Exit Only
• Emergency opening during power failure
• Obstacle detection with automatic return
• Self-monitoring light barriers
• Slow speed search for obstruction

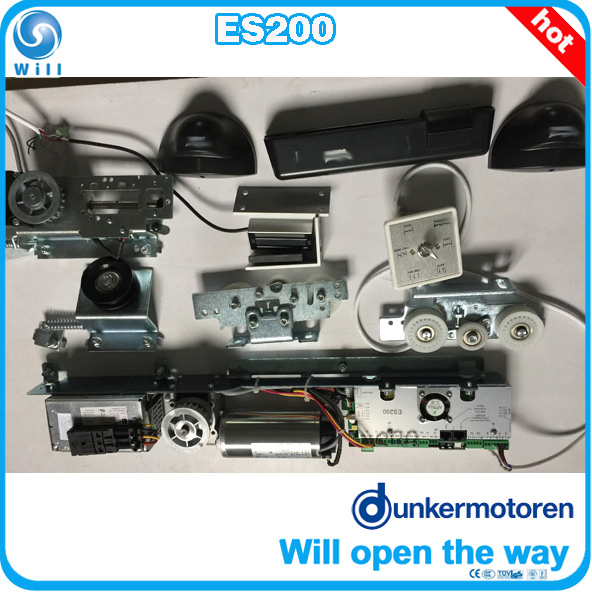

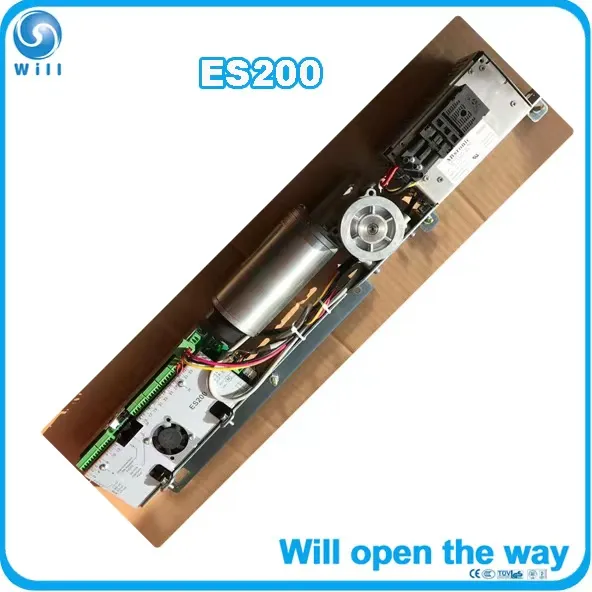

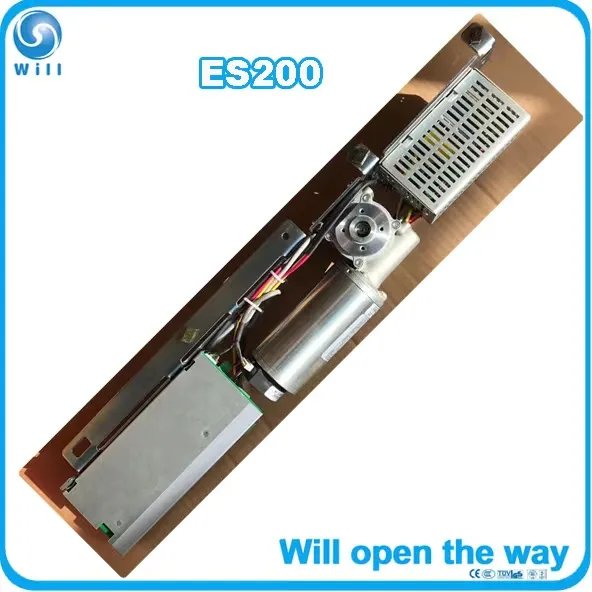

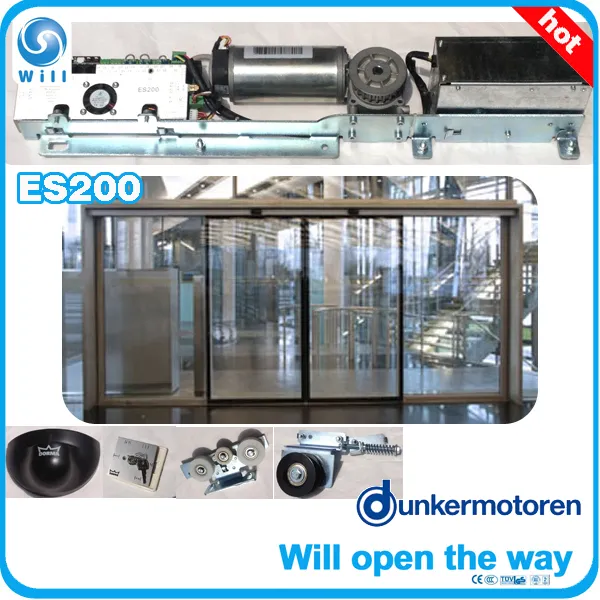

Minidrive Unit, Transformer, Motor, Decoder, Control Module, Track, Carrier, Return Pully, Belt tensioning device.
