Slander Door
Slander Door
| Model | Zipper High Speed Door | Material | PVC Fabric |
| Type | Rolling / Induced | Function | Air Tightness / Self Repairing |
| Max Size | W6000mm * H6000mm | Power Supply | 220V/380V, 50/60Hz |
| Curtain Thickness | 0.8-1.5 mm | Protection Class | IP55 |
| Temperature Range | -35 to 65 Celsius Degree | Structure Material | Steel Powder Coated / 304 Stainless Steel |
The zipper type high speed door features a superior seal and fast-acting operation to maintain air pressure and indoor cleanliness. It is specifically designed to reject outside air and dust, making it ideal for food and drug factories, clean rooms, and dust-free workshops.
Avoids damage from forklift collisions. The door can recover itself automatically without the need for manual repair or maintenance after accidents.
The special zipper structure connects the fabric and guide rails as a single body, eliminating gaps and significantly improving overall seal performance.
Utilizes a soft bottom edge and flexible PVC curtain without rigid elements, ensuring maximum safety for personnel and equipment.

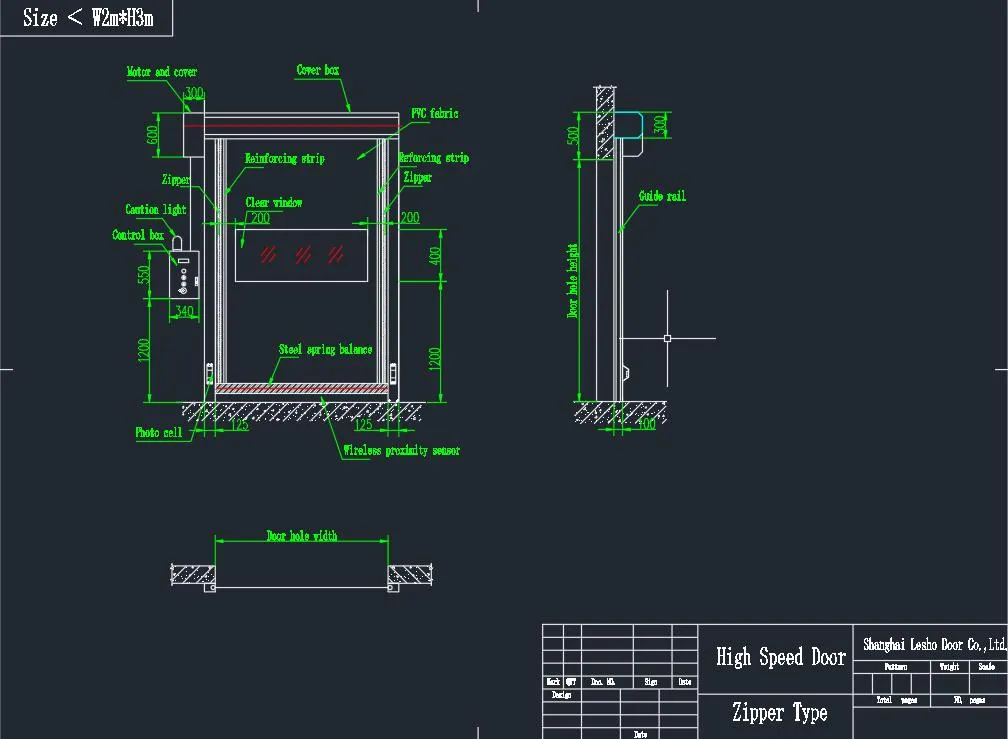

Precise shop drawings ensure accurate dimensions and seamless installation. Equipped with an advanced AC Servo control system for high-performance operation.
High Speed Running: Motor speeds up to 2500 rpm, allowing door operation up to 2.5m/s.
Precise Limit: Double encoder design ensures accurate positioning and avoids overshooting.
High Frequency: Designed for heavy-duty use, capable of running over 2000 times per day.
Available Operation Modes: Radar Sensors, Remote Control, Vehicle Loop Detectors, Pull Switches, and Standard Push Buttons.
We use export-standard wooden cases for LCL shipments and secure container loading for FCL orders. Multi-layer bubble film and carton boxes ensure all small components remain safe during transit.
