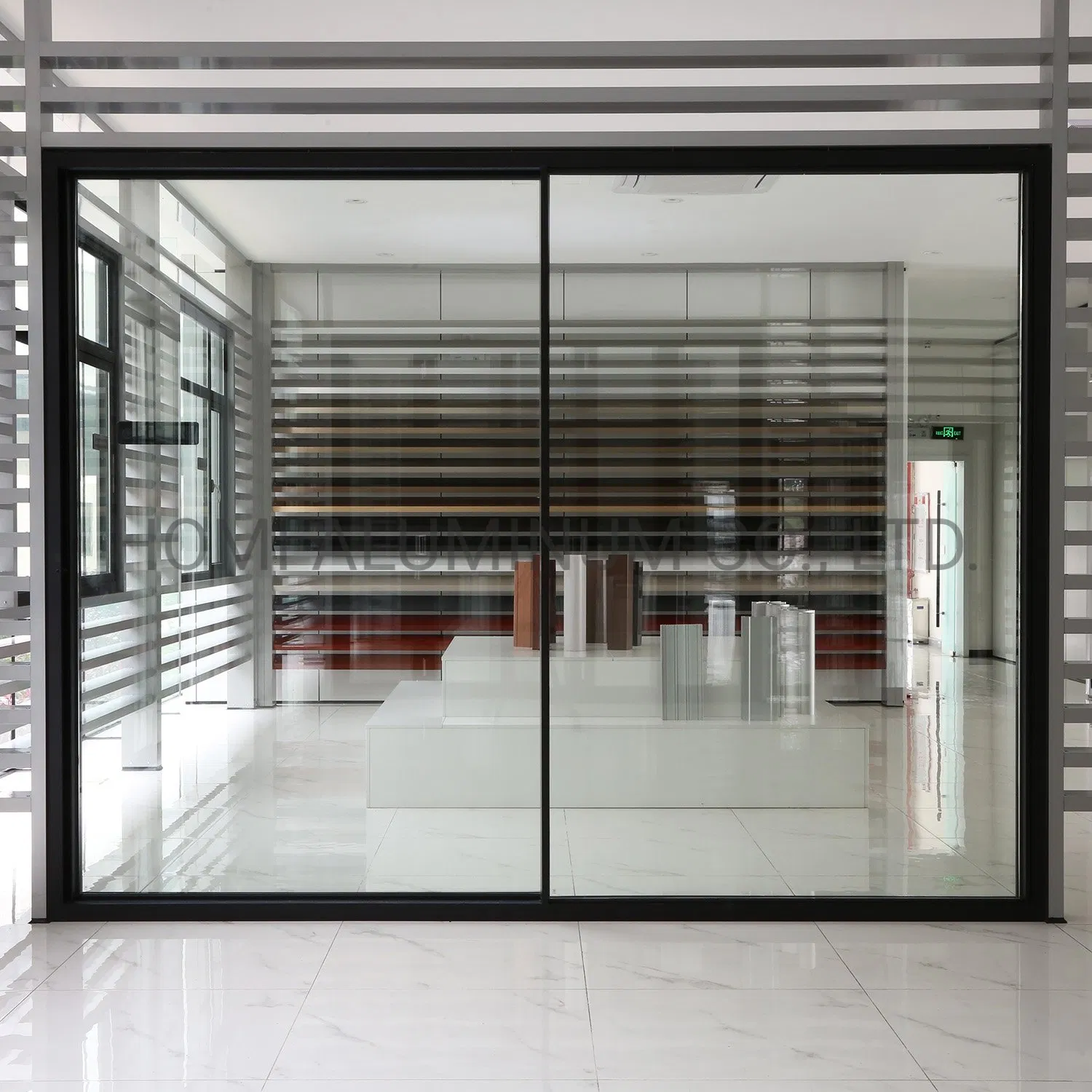

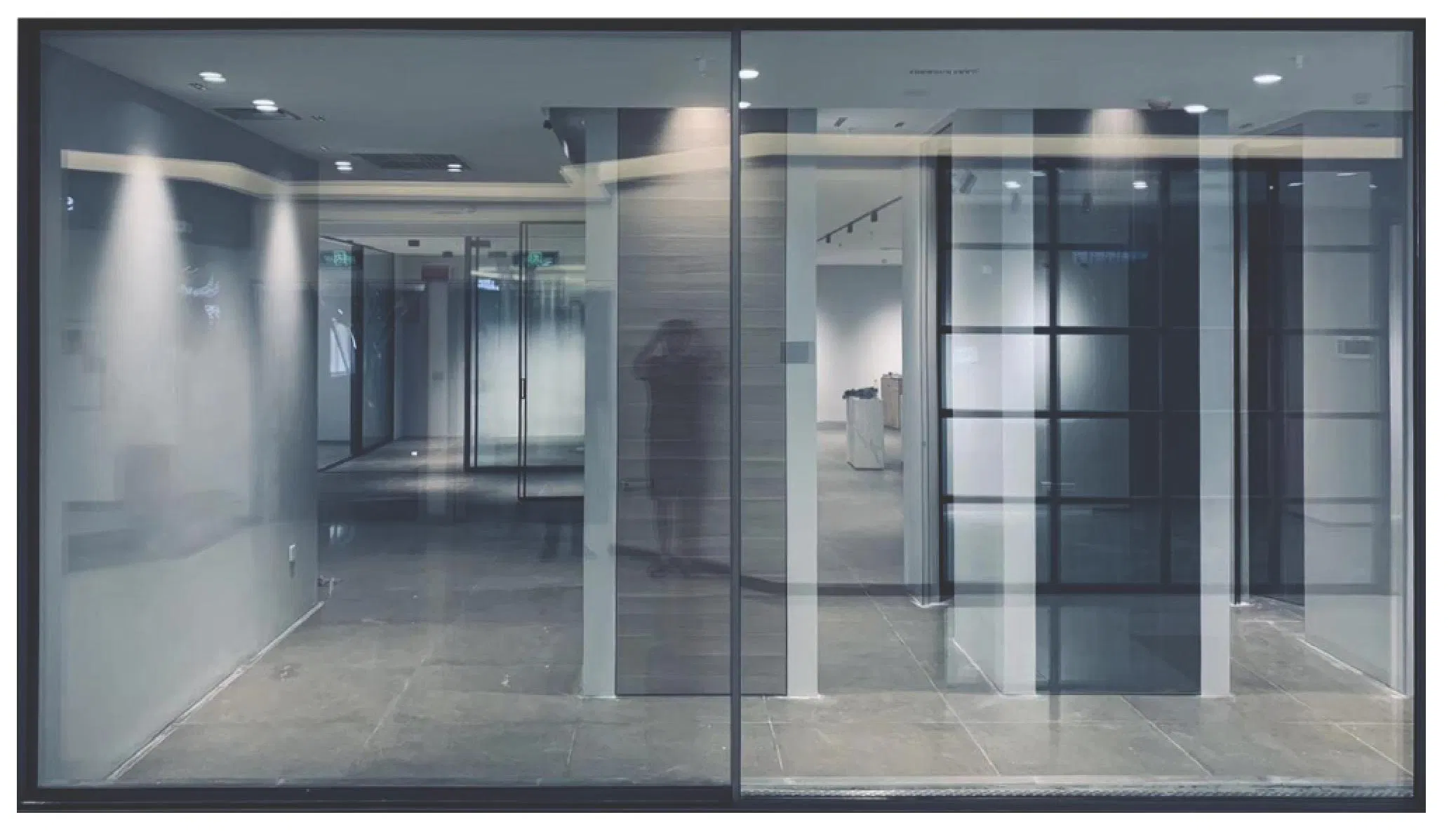

Slim Sliding Door Aluminium 6063-T5 Powder Coating Panoramic View
Slim Sliding Door Aluminium 6063-T5 Powder Coating Panoramic View
Slim Sliding Door Aluminium 6063-T5 Powder Coating Panoramic View
Slim Sliding Door Aluminium 6063-T5 Powder Coating Panoramic View
Slim Sliding Door Aluminium 6063-T5 Powder Coating Panoramic View
1 / 5
Slim Sliding Door Aluminium 6063-T5 Powder Coating Panoramic View
Slim Sliding Door Aluminium 6063-T5 Powder Coating Panoramic View
Slim Sliding Door Aluminium 6063-T5 Powder Coating Panoramic View
Slim Sliding Door Aluminium 6063-T5 Powder Coating Panoramic View
Slim Sliding Door Aluminium 6063-T5 Powder Coating Panoramic View

Slim Sliding Door Aluminium 6063-T5 Powder Coating Panoramic View

Customization: Available
After-sales Service: Warranty
Warranty: Warranty
Send Inquiry

Product Description

Technical Specifications

Model NO.
HA38
Material
Aluminum Alloy
Style
Modern
Open Style
Sliding
Sound Insulation
35 dB
Position
Interior
Surface Finishing
Finished
Slim Frame
Maximizes Glass Area for Unobstructed View

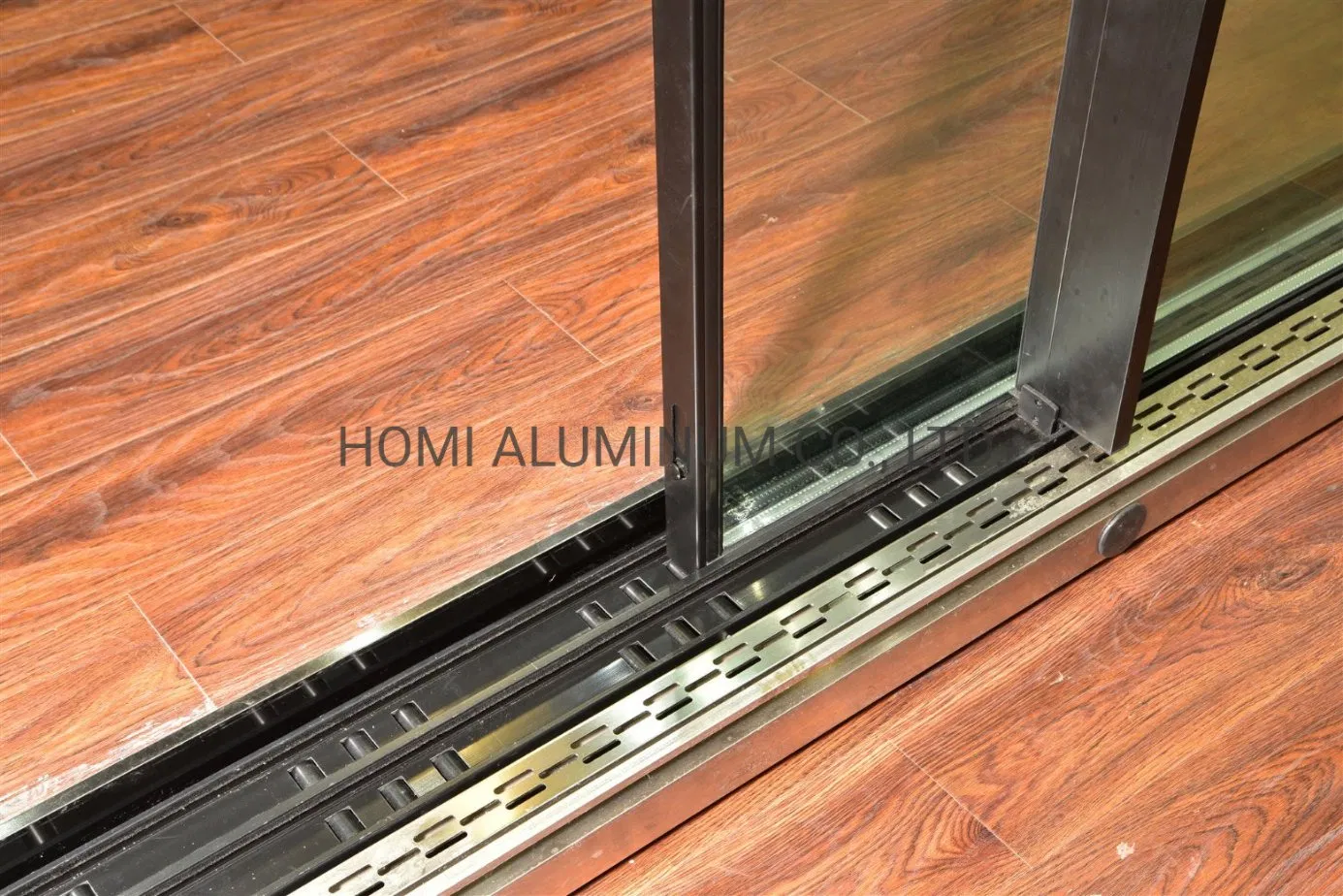

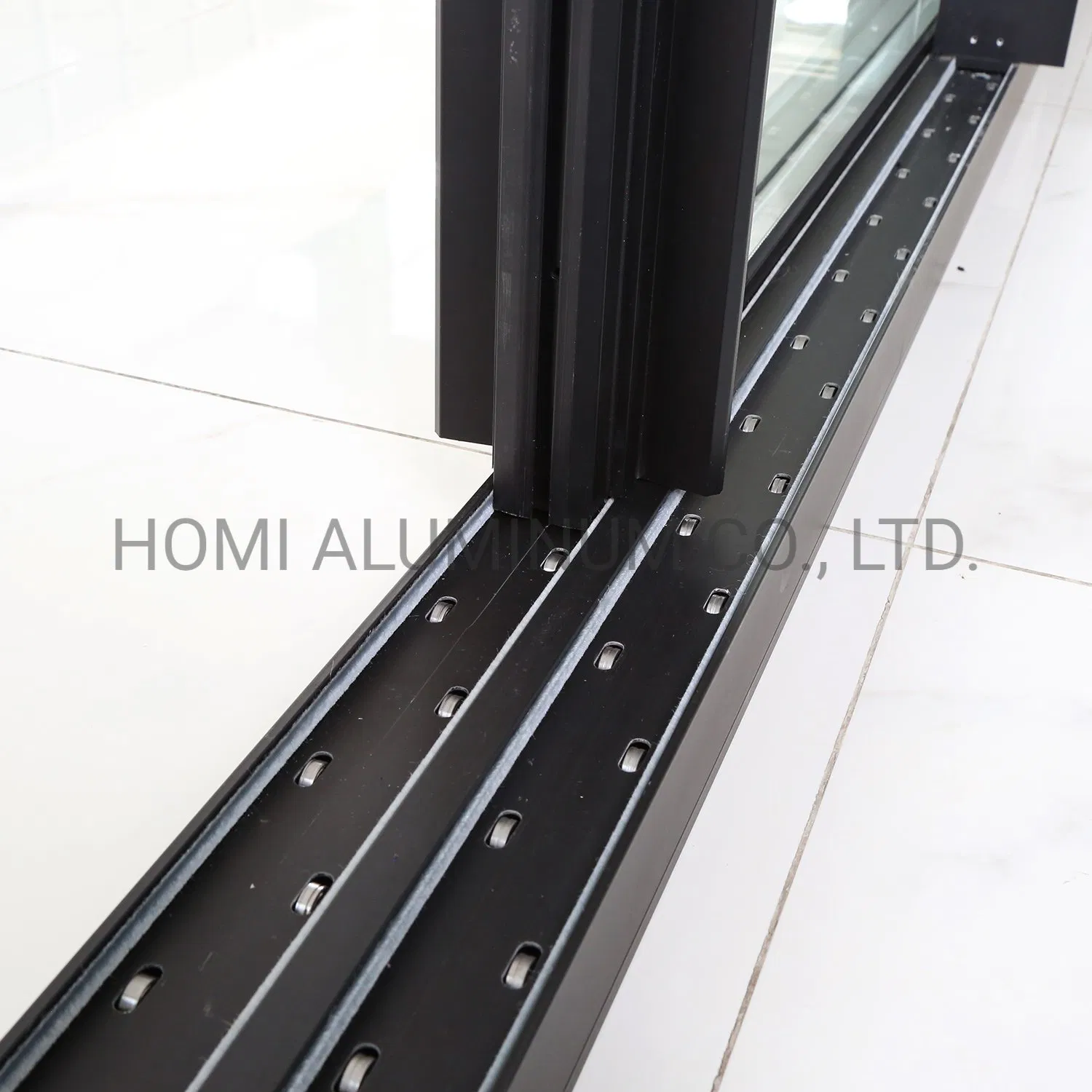

Sliding System
Precision Stainless Steel Rollers
Glass Options
Clear/Frosted/Low-E Double Glazing
Origin
China
Capacity
100,000 Sqm/Year

Product Description

HA38 Slim Sliding Door Features

  • Minimalist Design: The HA38 series features a 31mm interlock and a jamb frame that can be embedded into the wall for a maximum outdoor view.
  • Expansive Sizing: Sliding sash sizes up to 3.0 meters wide allow for excellent ventilation and wide panoramic visions.
  • Thermal Performance: Designed with a double thermal break. Optional folding screen doors are available for mosquito protection.

Production Capacity

Aluminium Alloy Extrusion Diameters Billet Casting Line Extrusion Line Powder Coating Line Anodized Line
6063/6061-T4,5,6 80mm-300mm 2 Lines 14 Lines Vertical Coating Line Automatic Line
FACTORY AREA ANNUAL OUTPUT STAFF / R&D
1800 Acres 100,000 Tons 650 Members / 25 R&D

Performance & Parameters

Performance Ratings
Heat Insulation W(m2.k) Sound Insulation (DB) Watertight (Pa) Airtight Wind Load Resistance
2.5 35DB (Level 4) 350PA (Level 4) Level 5 3.0KPA (Level 5)
System Parameters
Sash Range (mm) Visible Width (mm) Depth (mm) Glass Thickness
W: 1000-3000mm
H: 1800-3500mm
Max Weight: 500kg		 Frame: 68.8mm
Sash Side: 30mm
Interlock: 31.2mm		 Frame Depth: 160mm
Sash Depth: 68mm		 DGU: 19-24mm

Finishes & Gallery

Available in Powder Coating, Anodized, and Wooden Finishes.

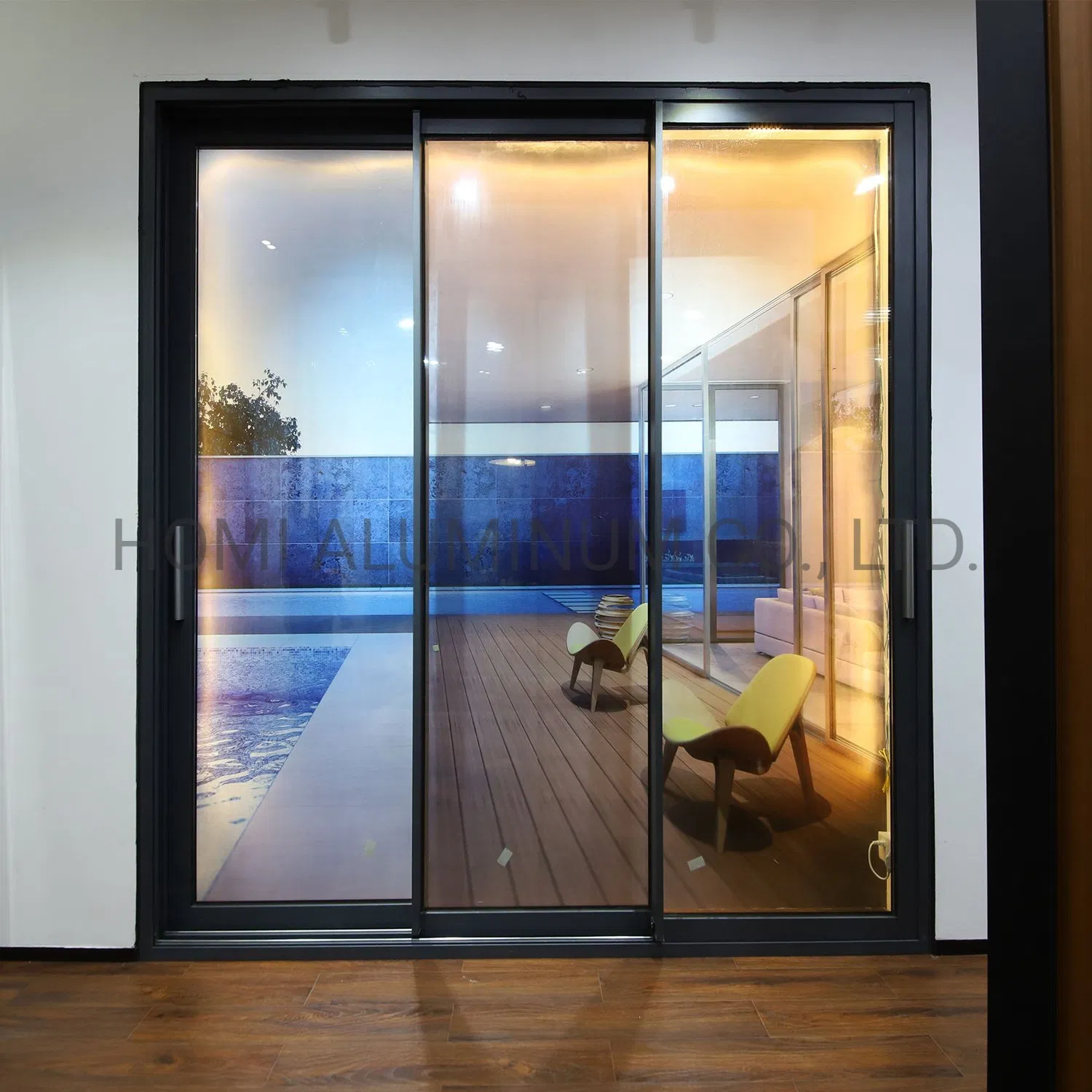

Slim Sliding Door Panoramic View
Aluminium Profile Powder Coating
Aluminium Profile Selection

Comprehensive Product Offering

  • Aluminium Profiles
  • Sliding Doors & Windows
  • Entrance Doors
  • Casement Windows
  • Bi-fold Doors
  • Curtain Walls
  • Sun Rooms
  • Partitions
  • Balcony Railings
  • Structural Glazing
  • Aluminium Cladding
  • Formworks

Our Professional Services

Customized Solutions: Expert suggestions for engineering and design needs, handling complex projects of various sizes.

Technical Support: Global technology support including wind load calculations, system optimization, and installation guidance.

System Design: Market-driven development of new window and door systems with high-quality accessories.

Packaging & Delivery

Transport Package
EPE Foam + Plywood
Package Size
300cm * 200cm * 100cm
Gross Weight
60.00kg

Frequently Asked Questions

What is the maximum size for the HA38 sliding sash?
The HA38 slim sliding door sash can reach a maximum width of 3000mm and a height of 3500mm, with a weight capacity of up to 500kg per sash.
How does the "Slim Frame" design benefit the user?
The slim frame design features a minimalist 31mm interlock area, which maximizes the glass surface to provide an unobstructed, panoramic view of the outdoors.
What are the glass options for this system?
We offer multiple glass configurations including Clear, Frosted, and Low-E Double Glazing (DGU) with thicknesses ranging from 19mm to 24mm.
What is your typical production lead time?
Generally, the delivery time is approximately 15-20 working days following the receipt of payment and order confirmation.
What kind of surface finishes can I choose?
We provide a wide range of surface treatments including high-quality powder coating, anodized finishes, and realistic wooden grain finishes to match any architectural style.
Do you provide technical support for installation?
Yes, we provide comprehensive technical support including wind load calculations, system optimization, and detailed installation guides for both local and international projects.
