Slander Door
Slander Door
| Model NO. | IH-AFS-23-03 | Material | Aluminum Alloy |
| Open Style | Sliding | Style | Brief |
| Sound Insulation | 45 dB | Position | Exterior |
| Veneer Wood | Black Walnut | Security Rating | C |
| Surface Finishing | Finished | Function | Security, Decoration |
| U Value | 0.1-0.28 | Glass | Tempered |

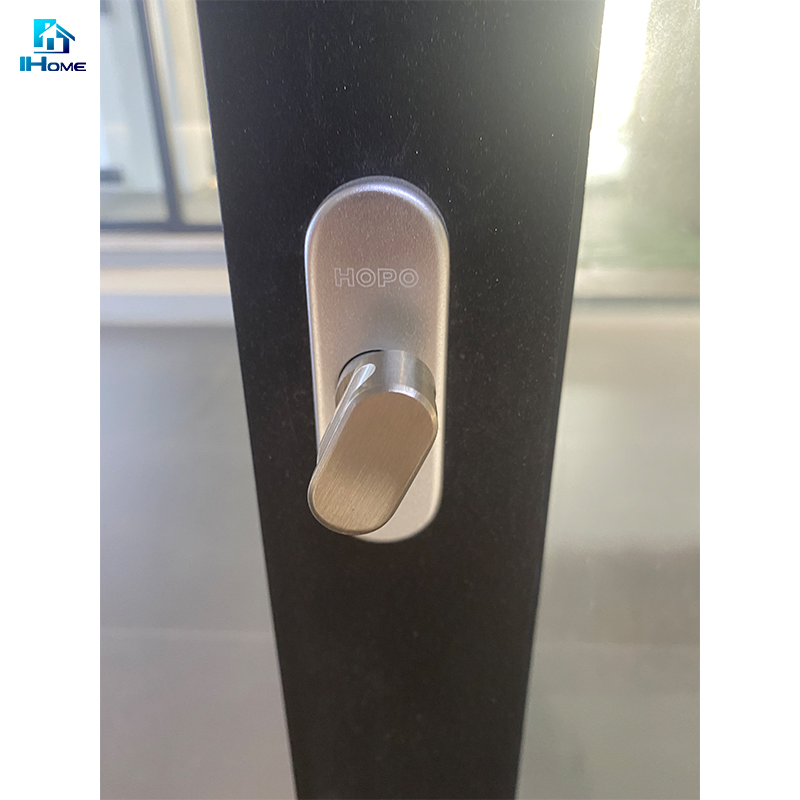

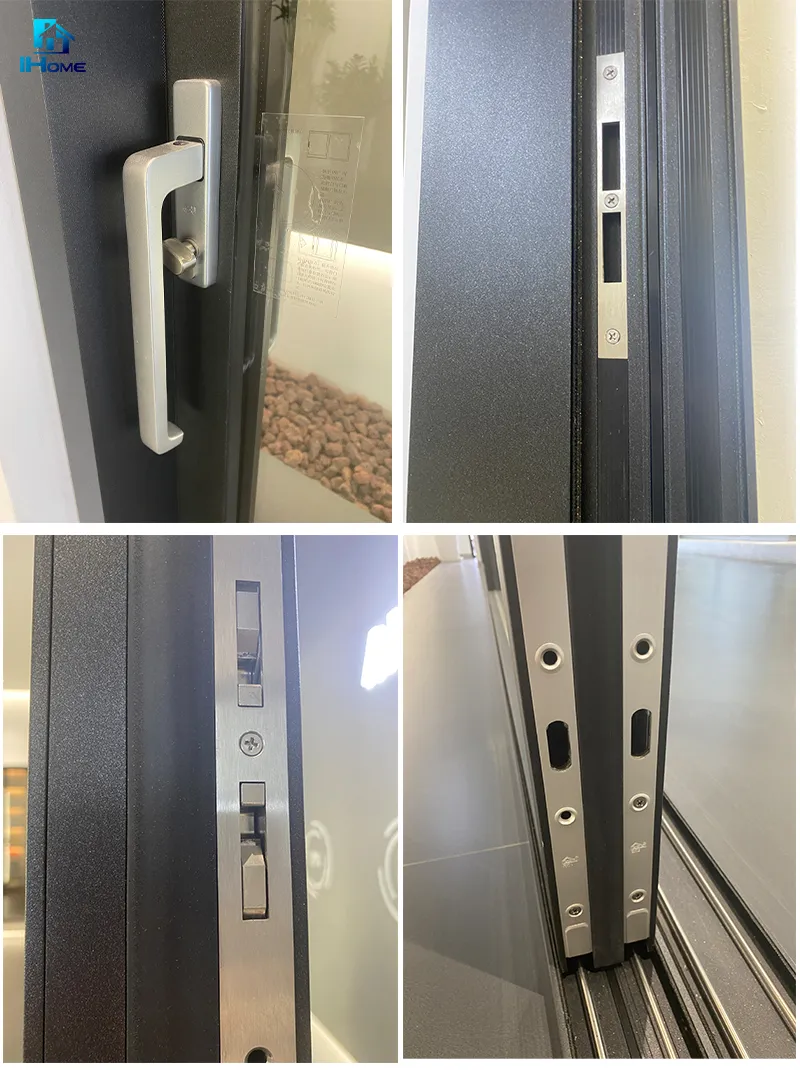

| Seal | EPDM Sealing Strip | Hardware | Lock+Handle+Hinges+Keys |
| Applications | Apartment, Hotel, Residential, Villa | Transport Package | Wooden Case |

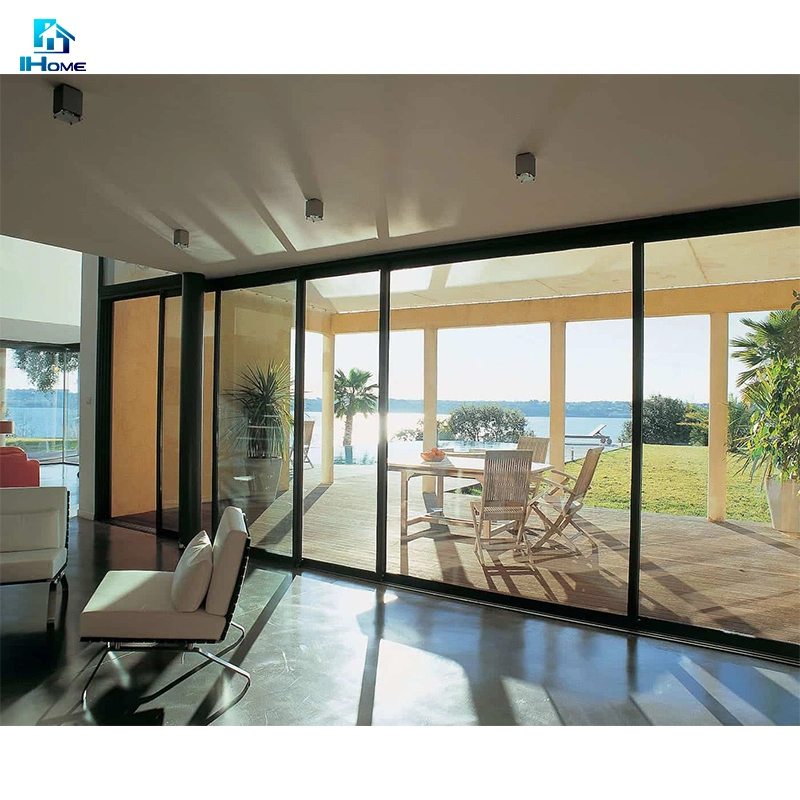

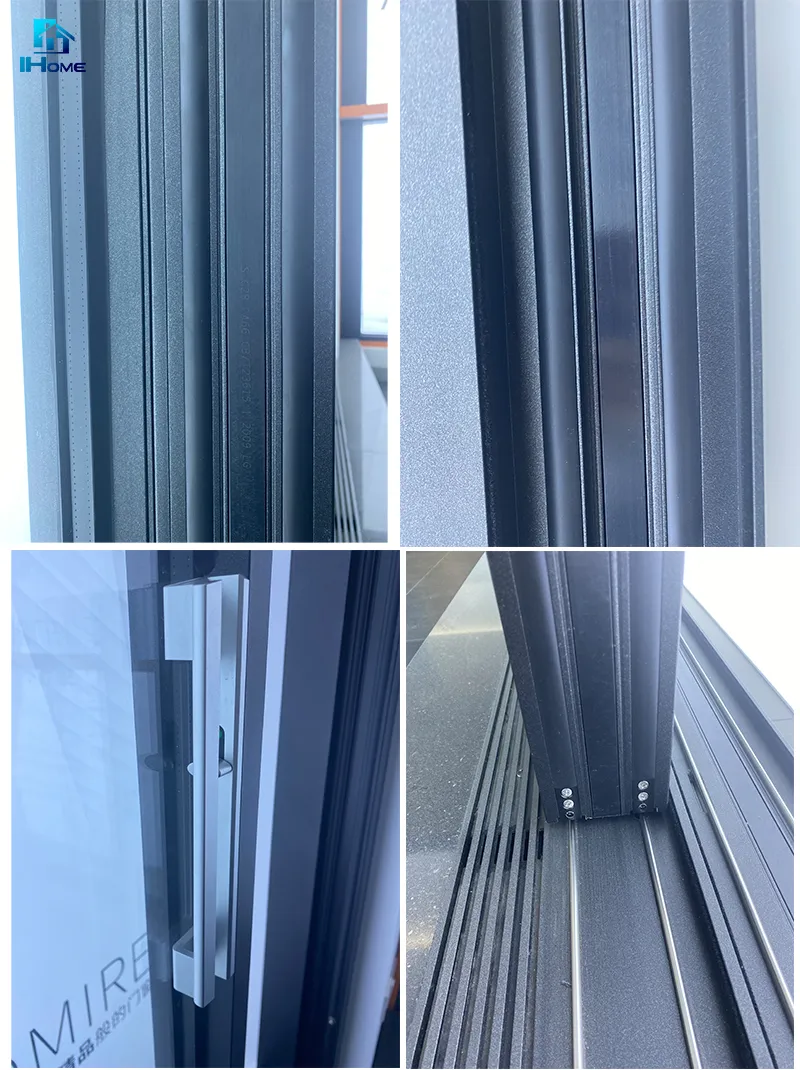

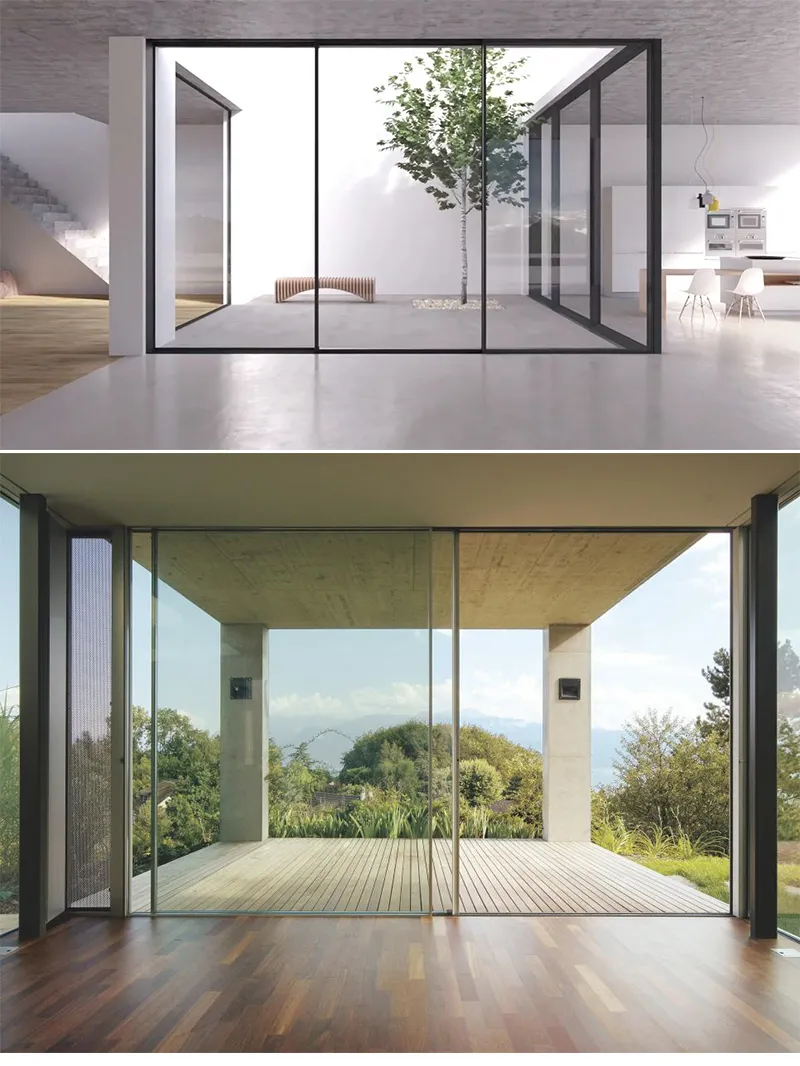

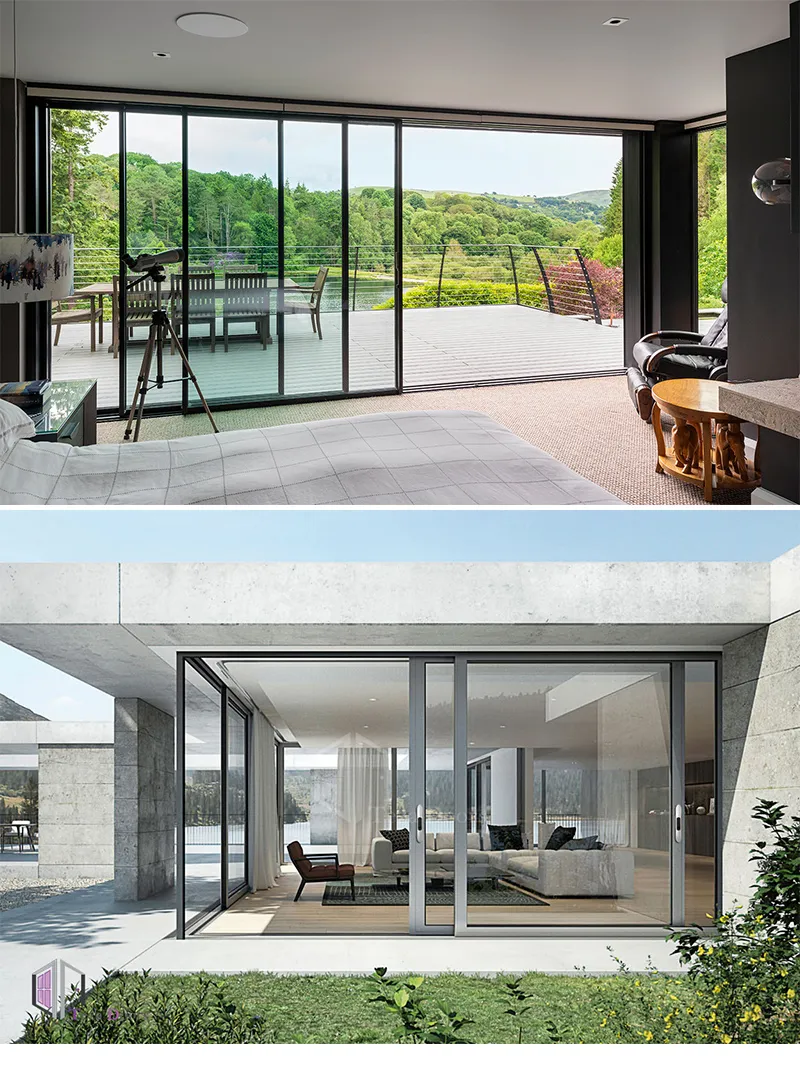

We offer premium Aluminium sliding doors and Lift up sliding doors. Currently, slim frame designs are highly popular in the market. Our slim frame visual surface can be as narrow as 26mm, utilizing thermal break materials with 2.0-5.0mm thickness. Features include high-quality rubber strips, argon gas filling, and double 5mm+20A/25A/27A+5mm tempered glass.

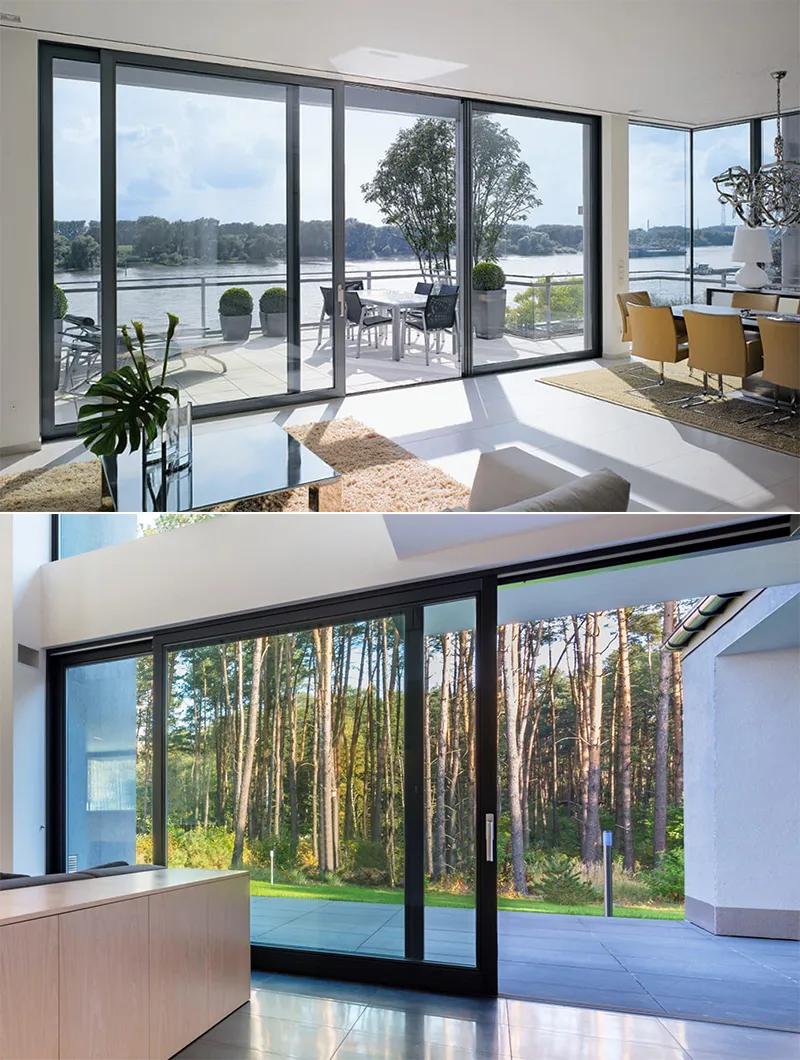

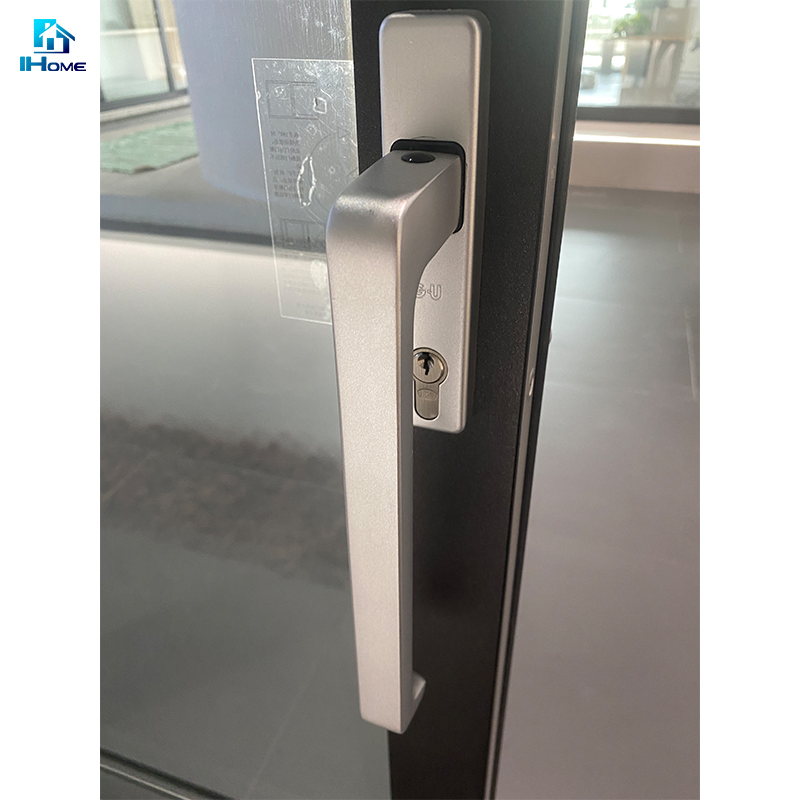

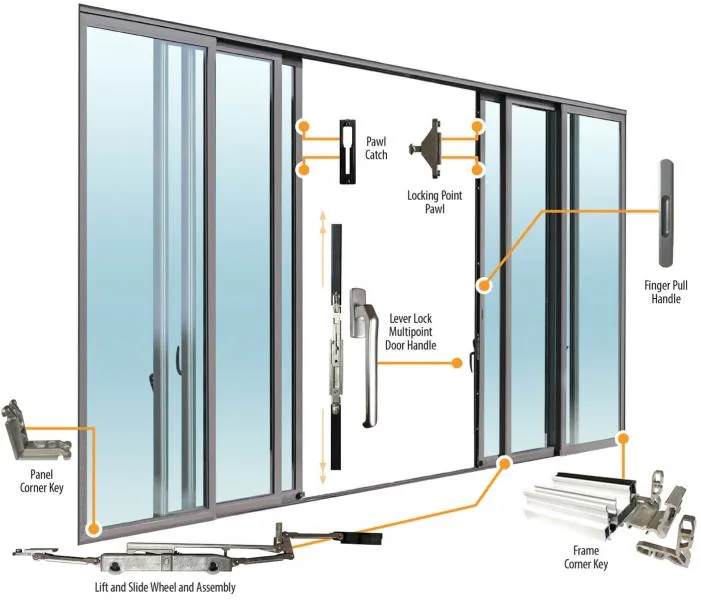

The Lift and Slide system offers superior water, thermal, and acoustic performance compared to traditional sliding doors. The handle mechanism allows the door to drop and seal tightly at the bottom, reducing the weight load on rollers and increasing their lifespan.
| Production Name | Aluminium lift up sliding door |
| Function | Waterproof, Energy efficiency, Heat & Sound insulation |

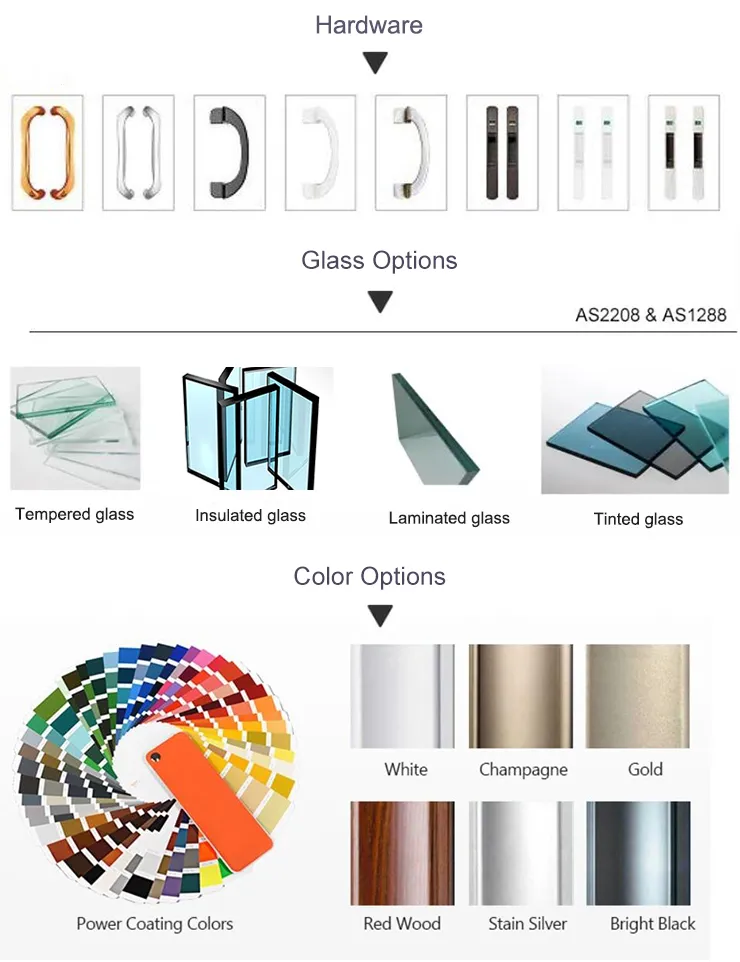

| Glass Options | Single, Laminated (5+0.76PVB+5), Insulated (5+12A+5 with Argon), Low-E, Tinted |
| Hardware | International & Top Chinese brands |

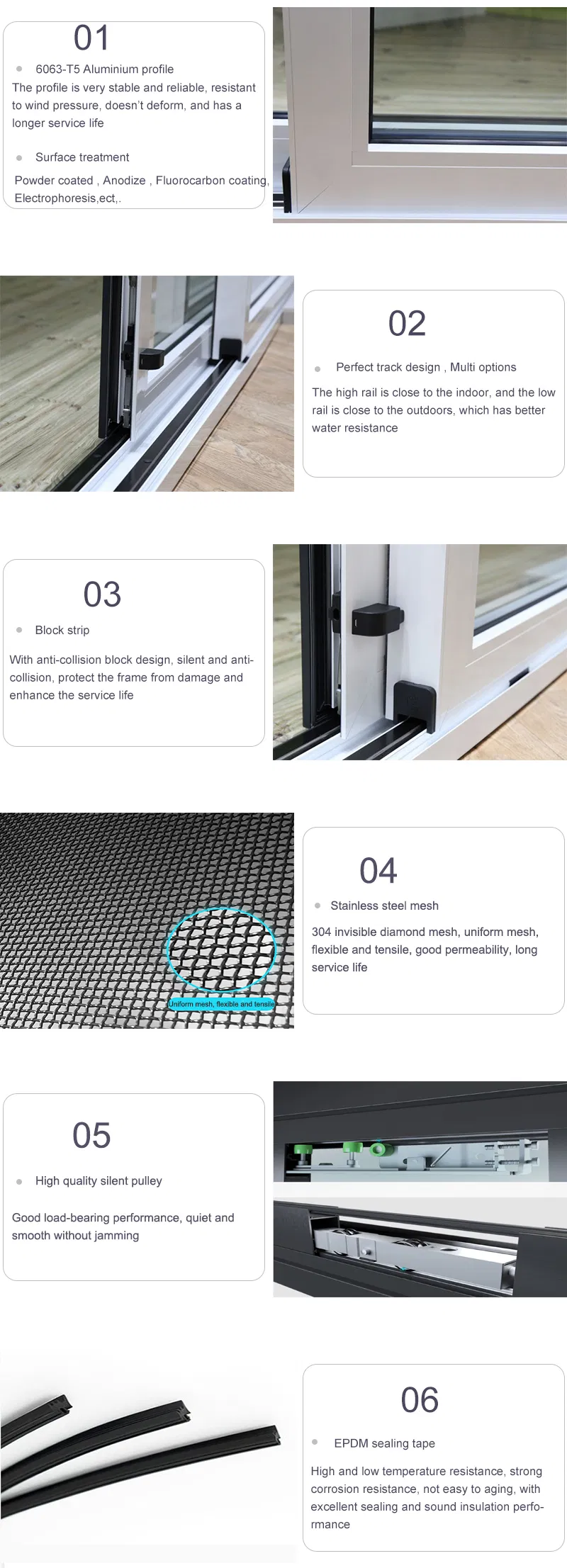

| Profile | Aluminium alloy 6063-T5, Thermal break |
| Frame Thickness | 1.2mm, 1.4mm, 1.6mm, 2.0mm |
| Surface Finish | Powder coating, Anodized, Electrophoresis, Fluorocarbon |
| Flyscreen | Fiber, Stainless steel mesh, Retractable mesh |
| Performance Metric | Value | Level |
| Thermal Insulation | 3.8 ≥ U ≥ 2.0 W/m²k | 3~6 Level |
| Acoustic Performance | 28dB ~ 40dB | 2~4 Level |
| Water Tightness | 350 ~ 600 Pa | 4~8 Level |
| Air Tightness | 5.5m³/(m²·h) | 5 Level |
| Wind Load Resistance | 3.0 ~ 4.0 Kpa | 5~7 Level |
