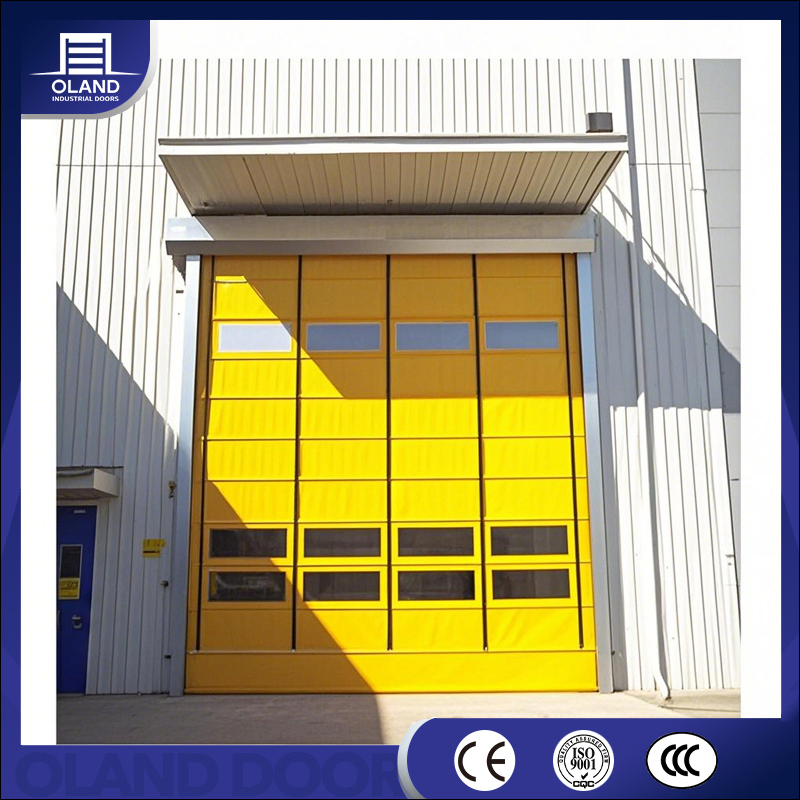

Genuine New MW-PVC Customize Multi Fold Doors with Automatic High Speed Stacking Rolling Curtain Rapid Door for Cold Chain Logistics Factory Wholesale Price

Customization: Available
After-sales Service: Online Technical Support/Parts Replacement
Warranty: 1.5 Years

Product Description

Basic Specification
Model
High speed door
Material
PVC Fabric
Type
Sliding
Open Style
Folding
Opening Type
With Remote Control
Special Function
Windproof
Certification
ISO9001, CE
Wind Resistance
Beaufort Scale 10(28m/S)
Power Supply
1-Phase 220V±10%, 50/60Hz
Protection Level
IP54 or IP65
Product Overview

Stacking high speed door is a high-performance industrial door suitable for large area doorways, adopting a sectional stacking opening structure. Through the high-strength rope system, it stacks the door curtain layer by layer upward, saving space and improving opening and closing efficiency. The door is equipped with multi-stage wind-resistant rods, offering excellent wind pressure resistance, making it ideal for logistics warehousing, factory external doors, large workshops, and areas with strong wind or frequent passage. The curtain is made of wear-resistant PVC material for stable and reliable operation.

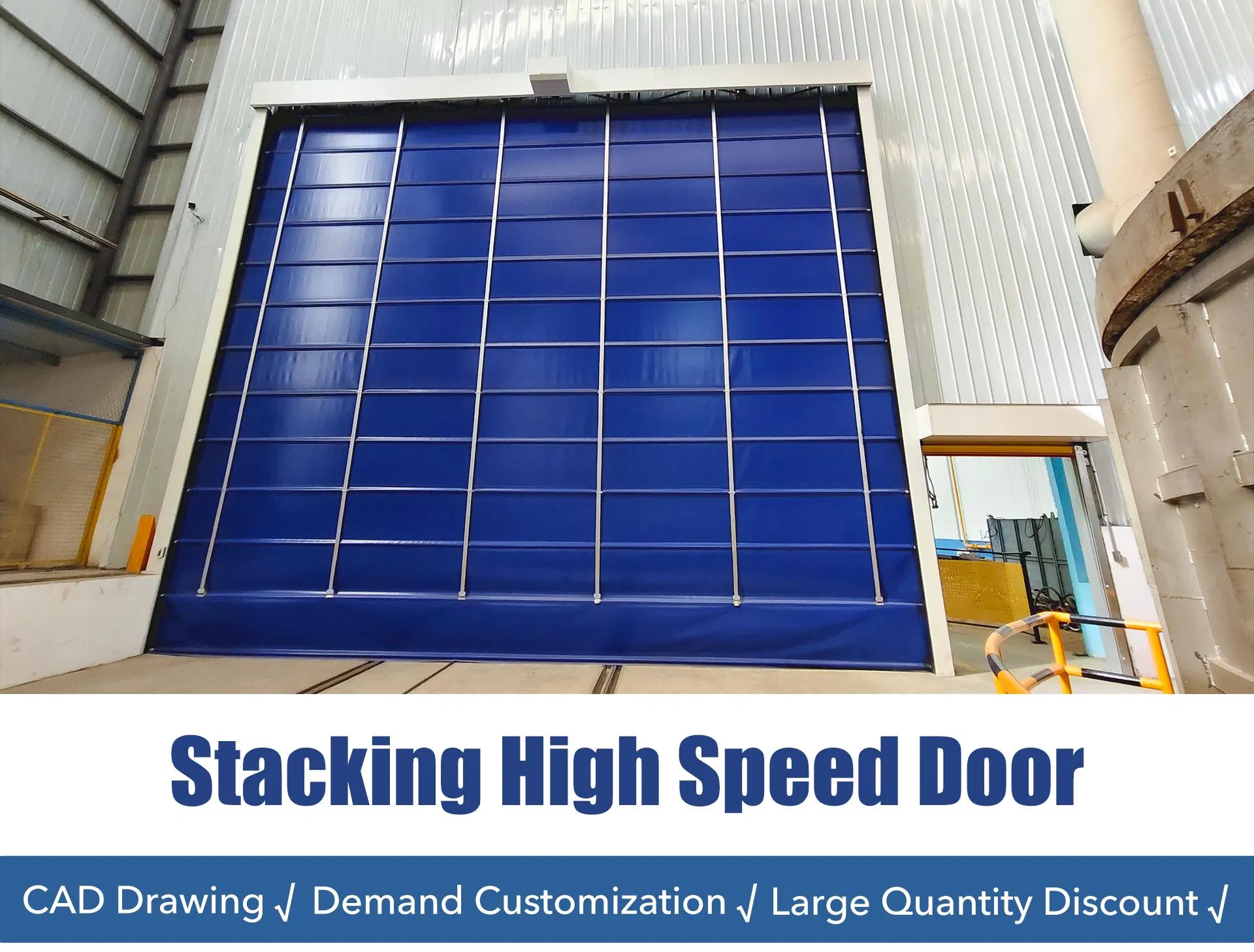

High speed stacking door
Technical Data
Parameter Specifications
Maximum SizeWidth 13000mm * Height 8000mm
Power Supply220±10%V, 50/60Hz; Output power 0.75-1.5KW
Normal SpeedOpen 1.2m/s, Close 0.6m/s
Protection LevelIP65
Control SystemServo type
Driving SystemServo motor
Wind ResistanceBeaufort scale 10 (28m/s)
Opening Frequency1000 times/day

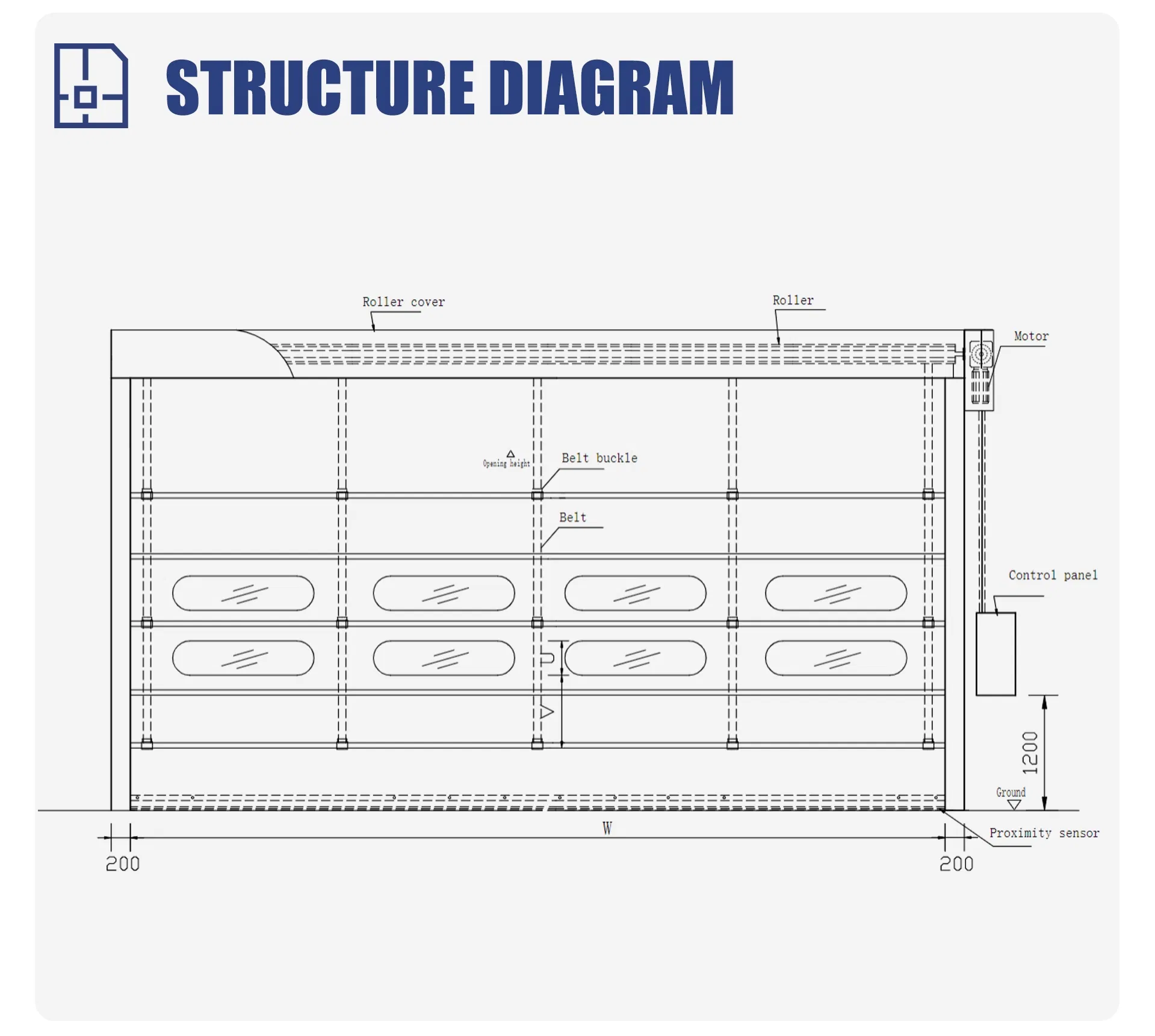

Structure Diagram
Structure and Accessories

Standard version of the stacking high speed door structure and accessories. Customization options are available upon request.

Product Details

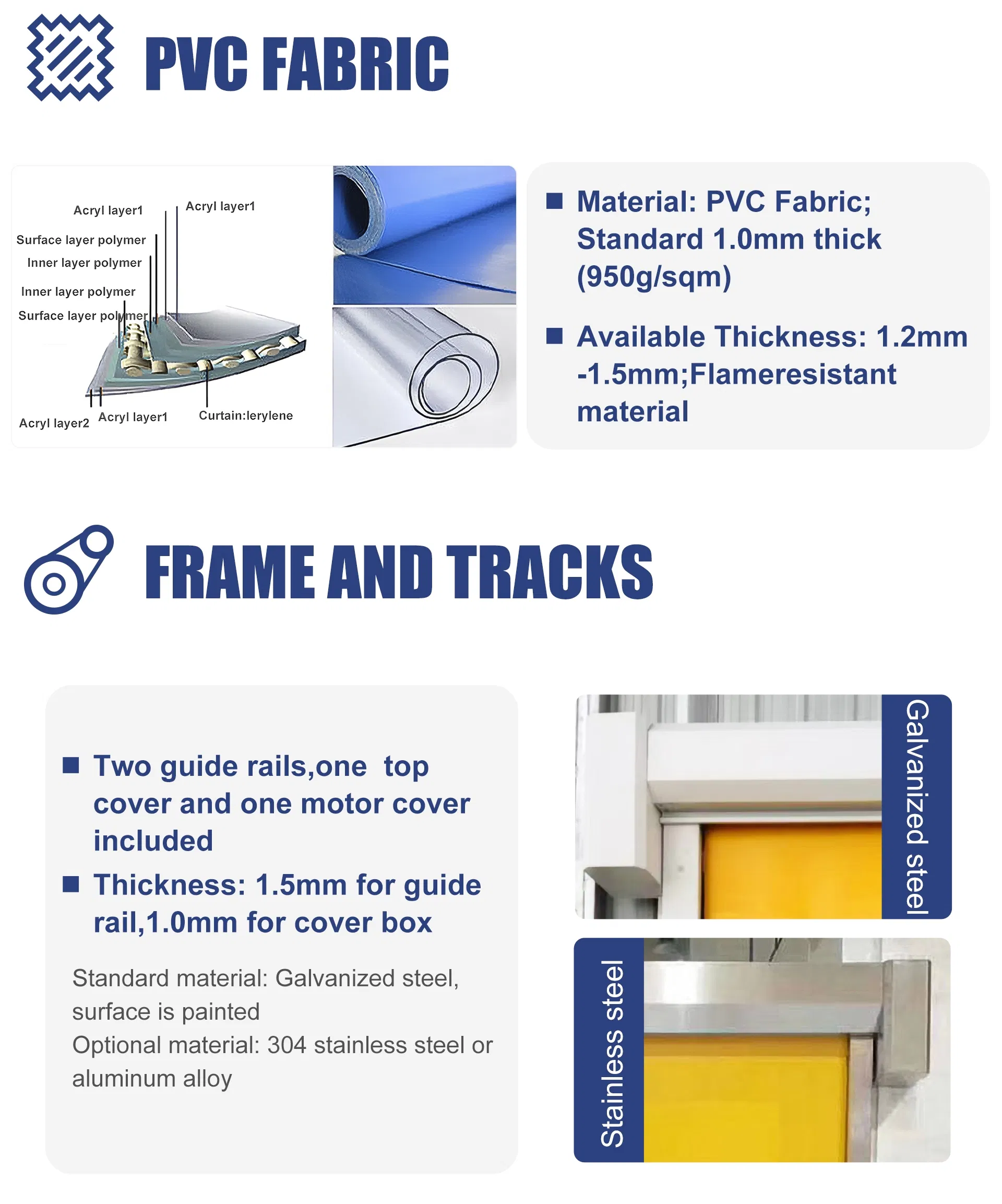

Details 1

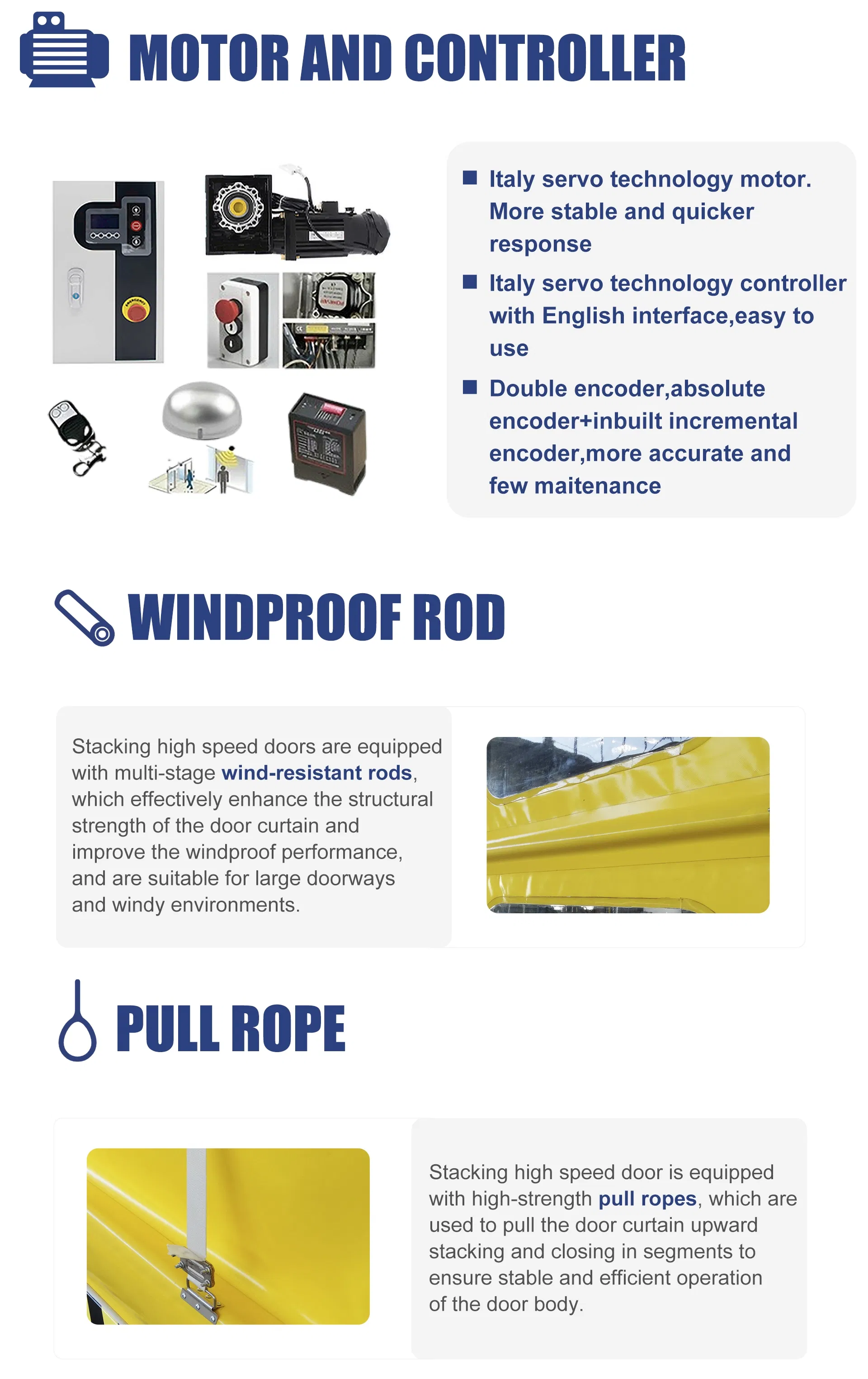

Details 2

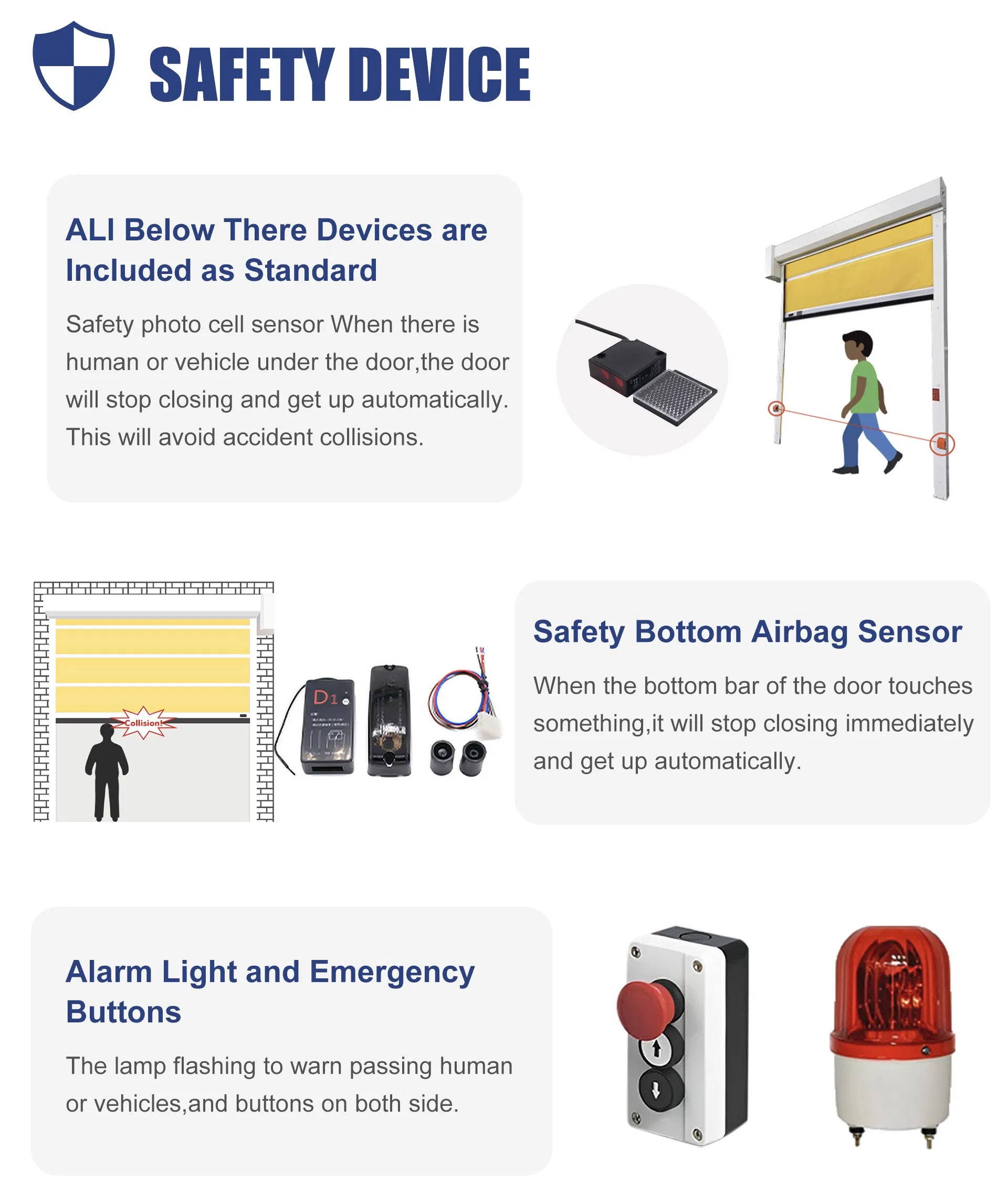

Details 3
Manufacturing & Packaging
Factory view 1
Factory view 2
Packing details
Project reference
Frequently Asked Questions
What is the delivery time for these doors?
The standard delivery time is approximately 15-30 days depending on the customization requirements and order quantity.
Is it difficult to install the high speed stacking door?
It is easy to install. We provide a detailed manual book and installation videos for your reference. Technical support is also available.
What kind of wind resistance does the door provide?
The door is designed to withstand up to Beaufort Scale 10 (28m/s), making it suitable for external industrial use in windy environments.
What are the main applications for this product?
It is ideal for logistics warehousing, cold chain logistics, large factory workshops, and any industrial passages where high-speed access and sealing are required.
What payment terms do you accept?
Usually, we accept T/T, L/C, Western Union, and Credit Cards. Other terms can be discussed based on the order profile.
What is the Minimum Order Quantity (MOQ)?
There is no strict limit; we accept orders starting from 1 set to accommodate both small projects and large-scale industrial needs.
