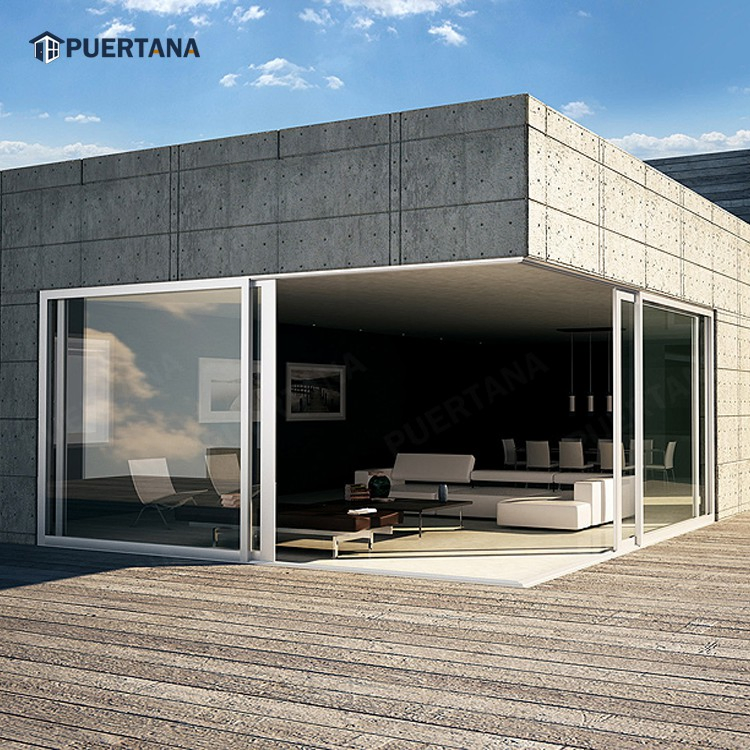

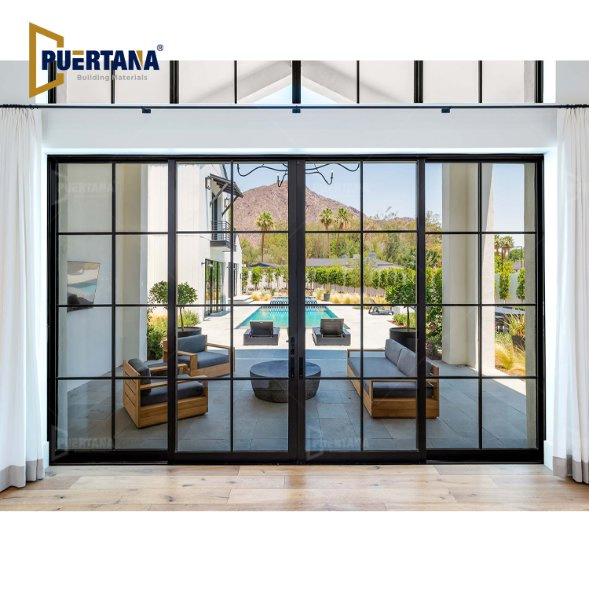

Aluminium Multi-Slide Pocket Patio Doors for Exterior Use

Customization:	Available
After-sales Service:	Online Technical Support
Warranty:	More Than 5 Years, 5 Years Warranty

📊 Basic Information

Model NO.

Aluminum Sliding Doors

Surface Finishing

Finished

Glass Type

Tempered Glass

Certification

CE, CCC, ISO, Nfrc

Position

Exterior

Material

Aluminum Alloy

Style

Modern

Open Style

Sliding

Sound Insulation

45 dB

Security Rating

A

U-Value

0.35-0.69

Standard

As2047/Nfrc/CE

Application

Residential, Commercial

🏠 Product Description

When it comes to getting the most glass for your home, sliding doors are the best possible option. Top and bottom running tracks allow for very large door panels, keeping the framing to a minimum and maximising glazing. Sliding doors achieve a perfect halfway house between doors and windows. The expansive view created by the impressive glass sizes and slim sightlines feels more like a large window when the doors are closed.

Technical Specifications
Product configuration	Sliding of 1, 2, 3, 4, 5, 6 & even number door panels
Standard/Certificate	CE / NFRC / AS2047
Profile thickness	2.0mm-4.0mm
Maximum dimensions	Width up to 2000mm; Height up to 4000mm
Feature	Waterproof / heat and sound insulation
Hardware	German / China top brand handle and lock system
Glass Options	Low-E / Impact Laminated / Tinted / Tempered

🔍 Detailed Features

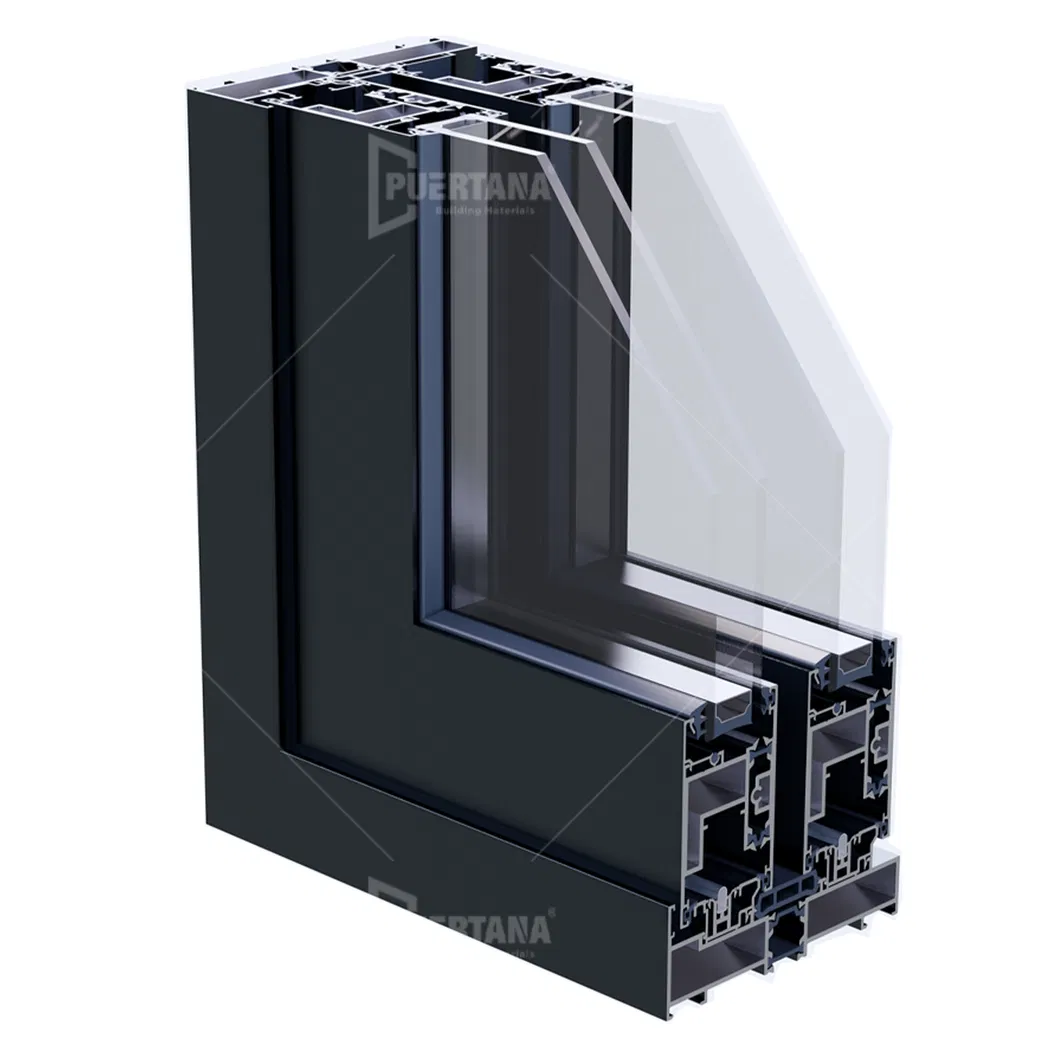

Customized Design

Heavy duty sliding door is an optimised, high performing, thermally insulated sliding door with a slim sightline. The system combines attractive aesthetics with remarkable energy efficiency.

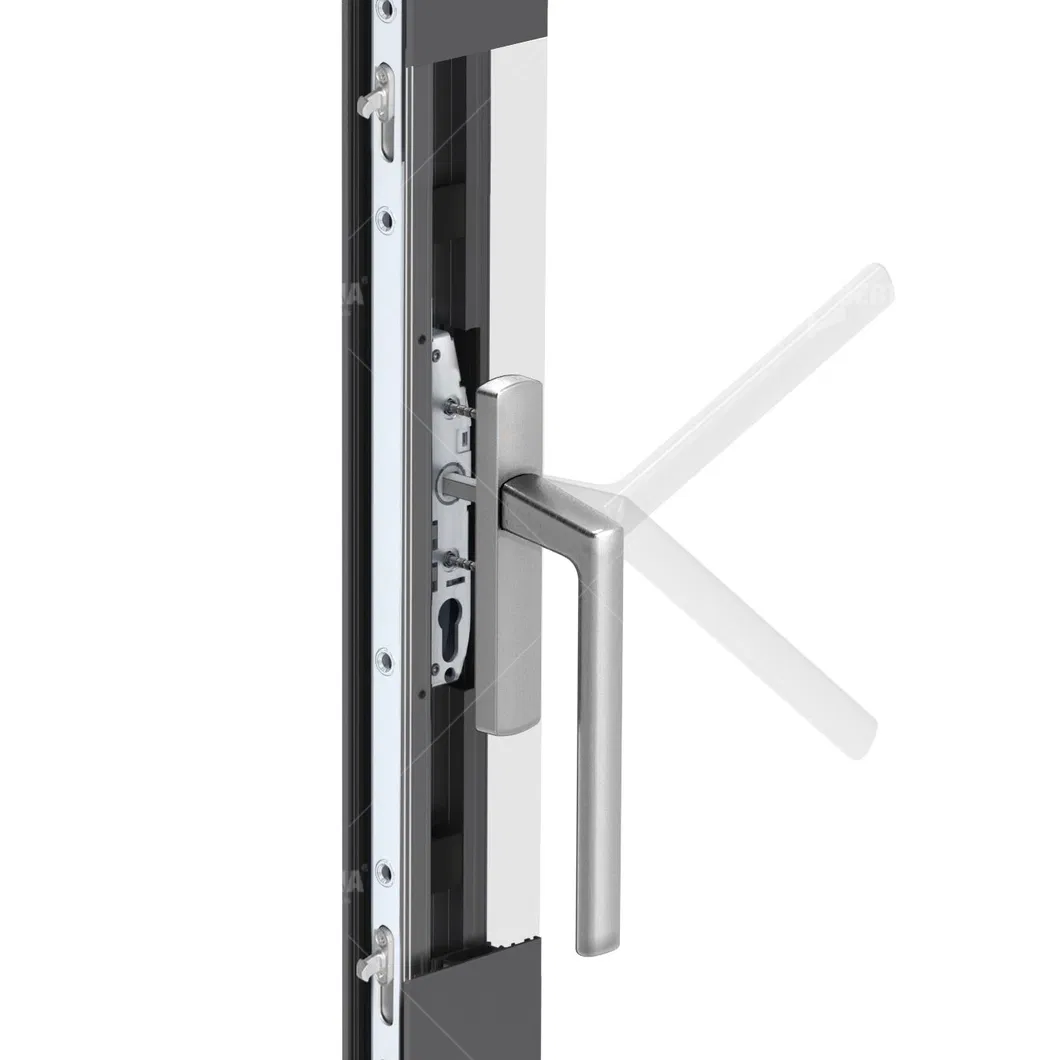

Easy Installation

Frames and sashes are assembled using eccentric pin or press corners. Stainless steel corner chevrons guarantee perfect alignment. All profiles are prefabricated using precision punching tools.

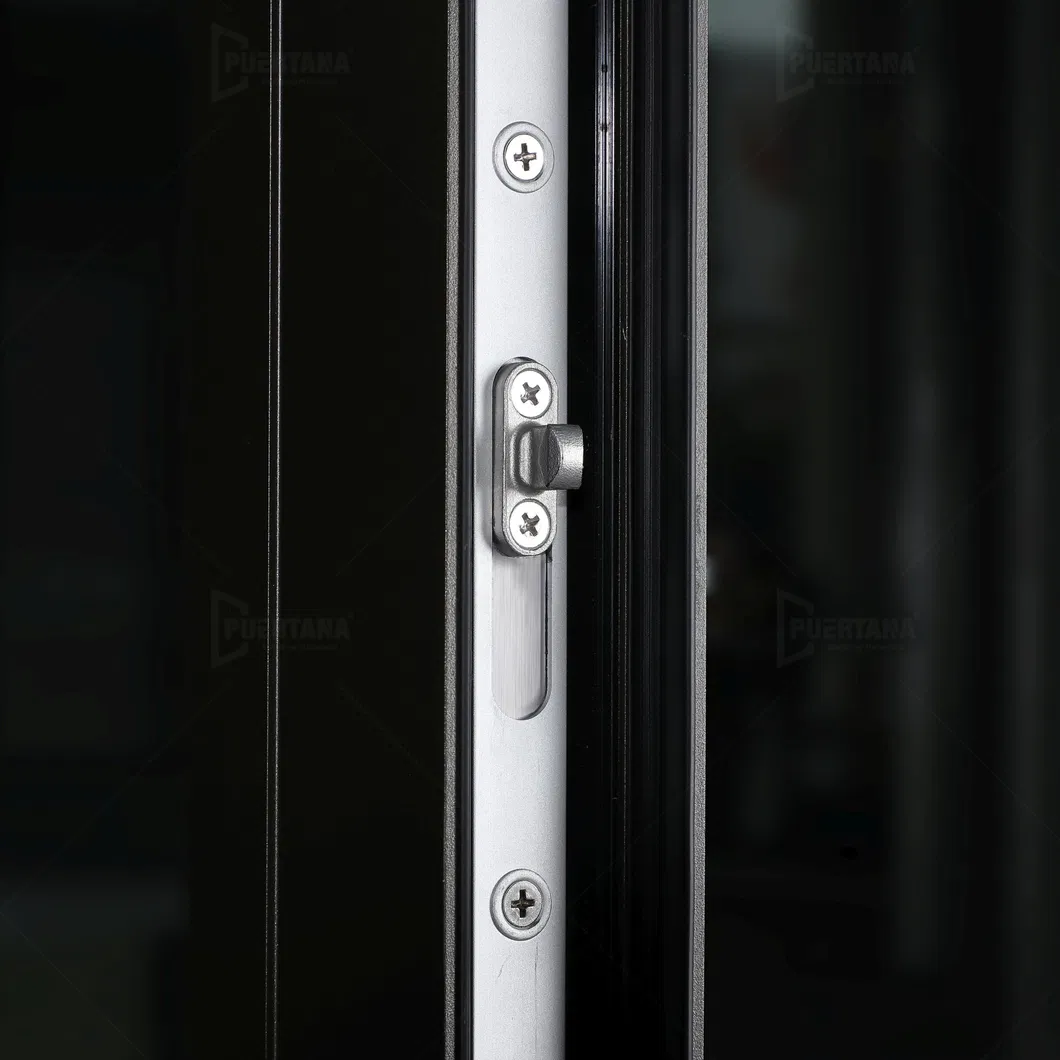

Strength & Durability

Strong profiles and stainless steel rails allow for glazing up to 2.8 meters high. Polyamide bottom rollers can support up to 300kg per vent while ensuring smooth operation.

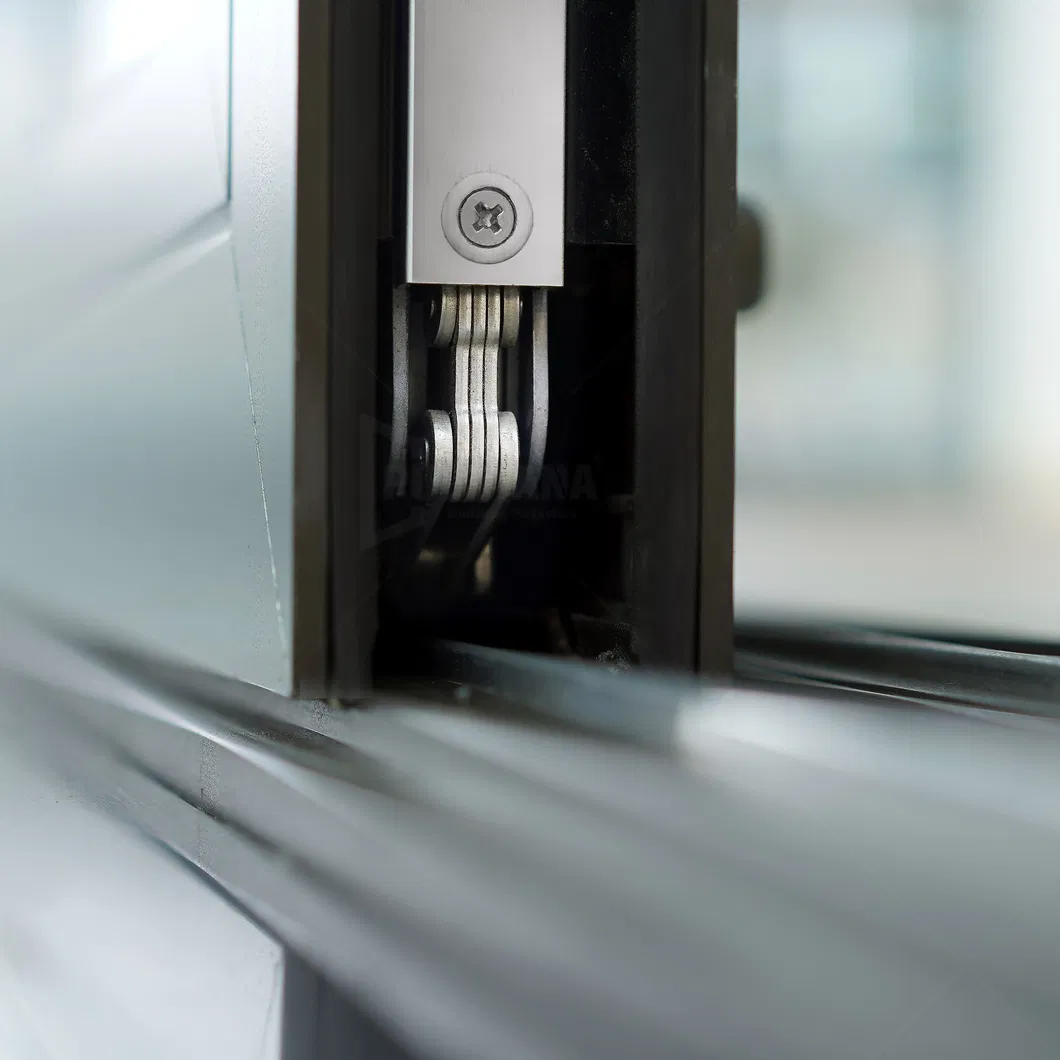

Energy Efficiency

Equipped with 40mm glass fiber reinforced polyamide strips to reduce thermal conduction. Customized PE strips insulate larger cavities for high thermal performance.

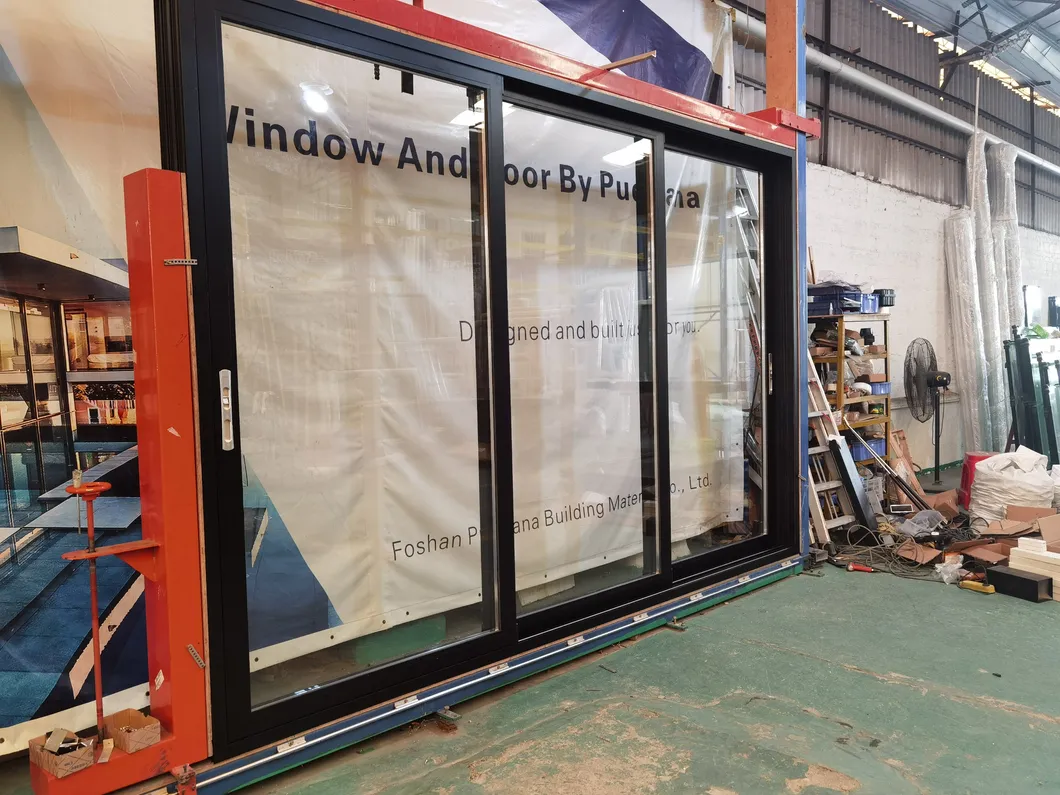

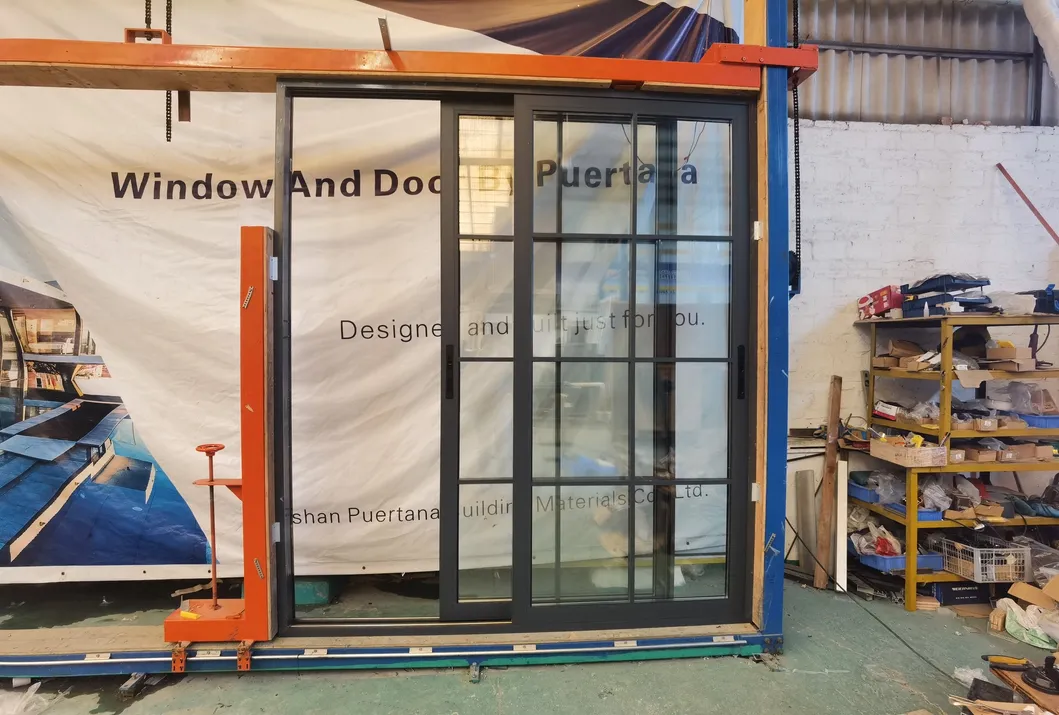

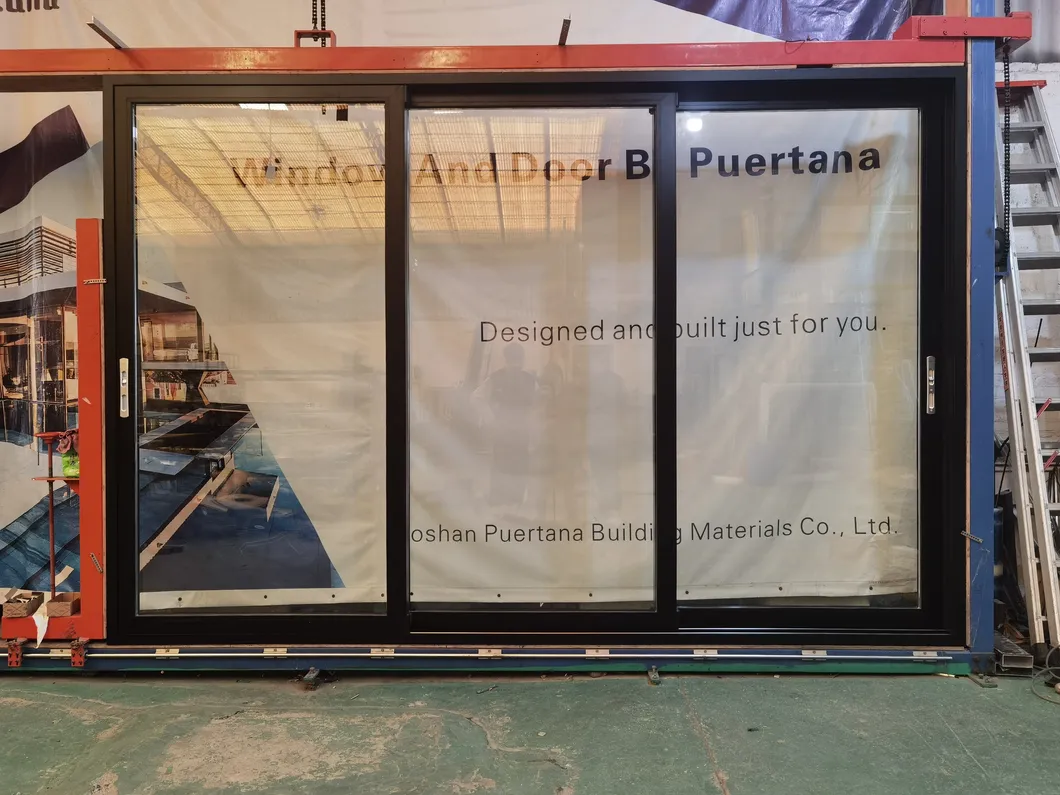

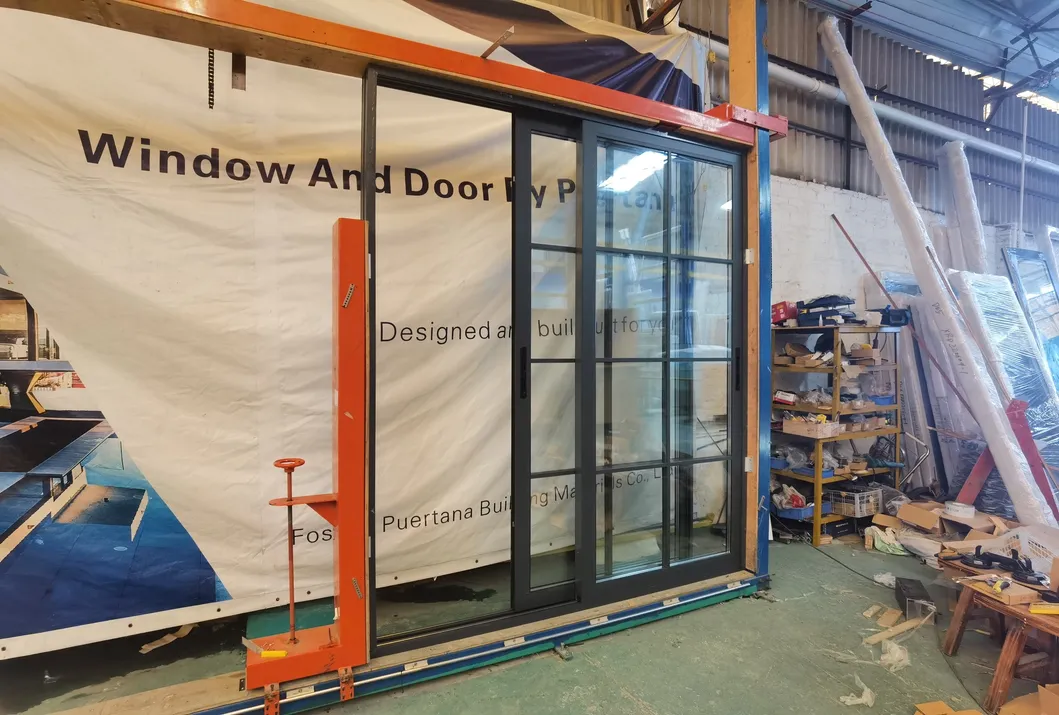

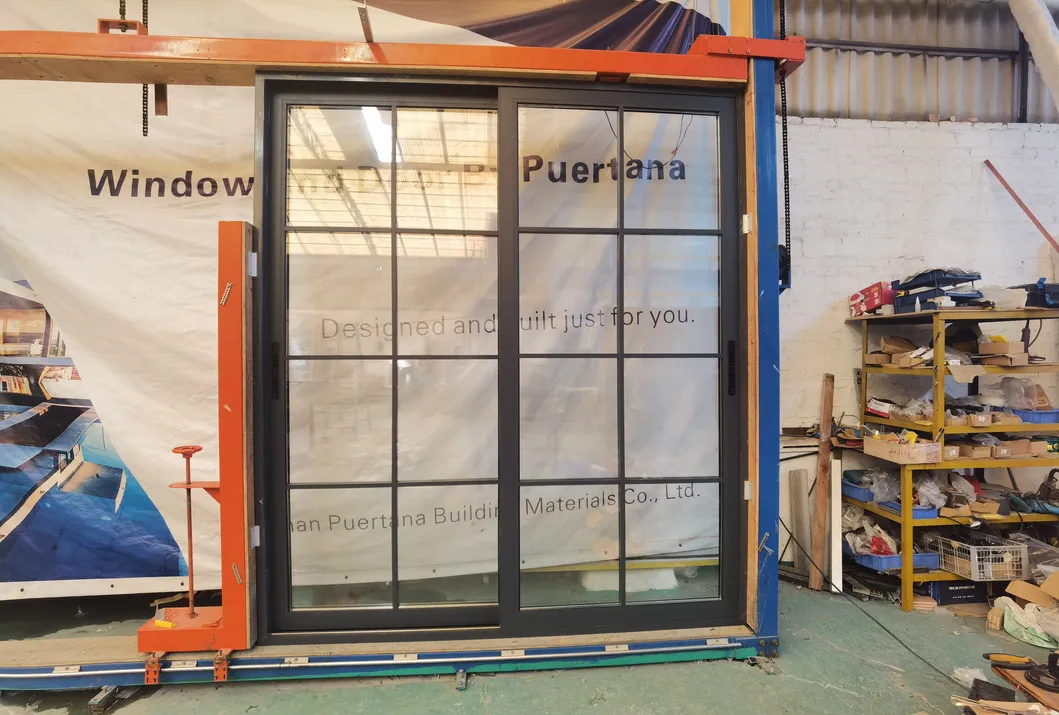

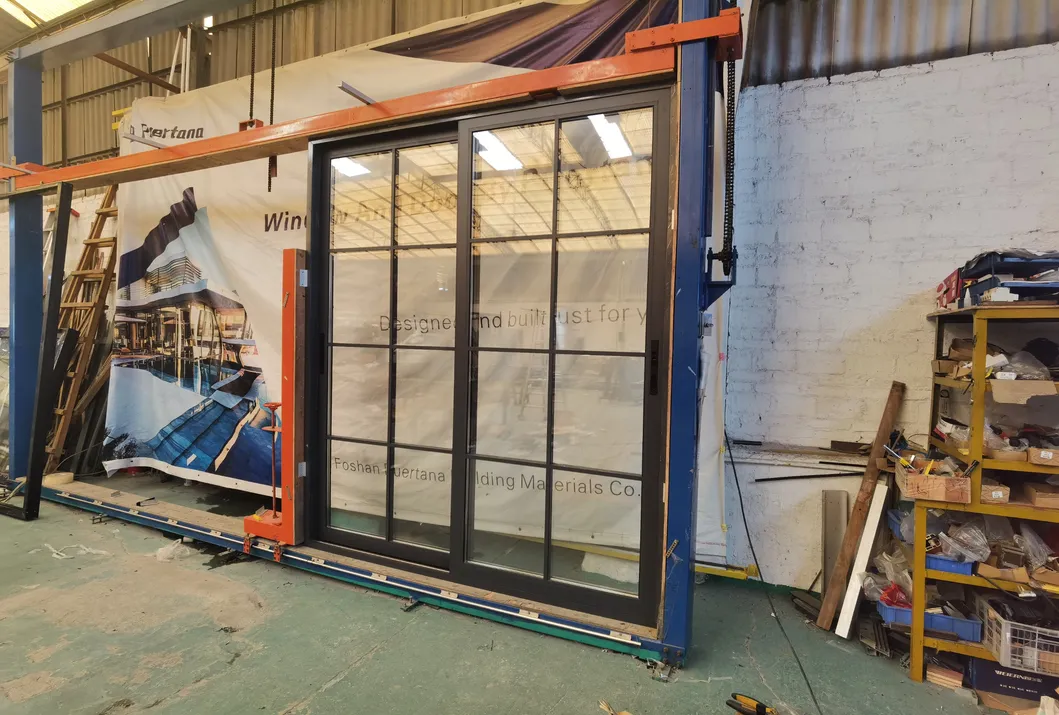

🖼️ Project Gallery

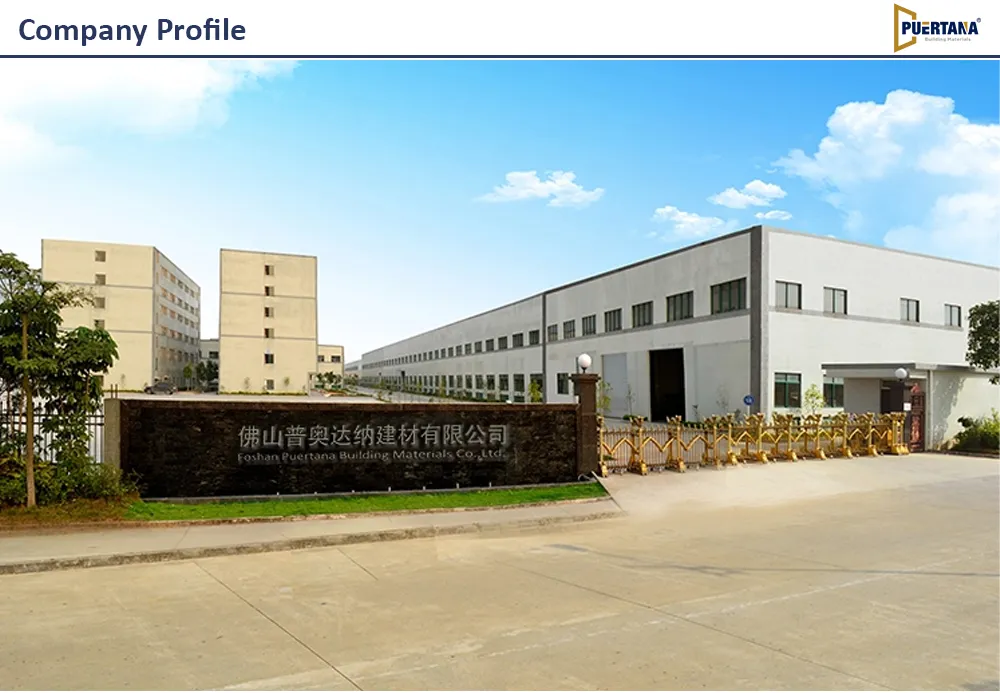

🏢 Professional Profile

Founded in 2010, this modernized enterprise specializes in high-end aluminum alloy doors & windows, solid wooden doors, sunrooms, and shower rooms. Integrating R&D, manufacturing, and sales, the facility covers 5,000 square meters with over 100 dedicated staff members. We serve as a one-stop building materials supplier for builders, developers, and contractors globally, with products meeting various local building codes.

📦 Packaging & Shipping

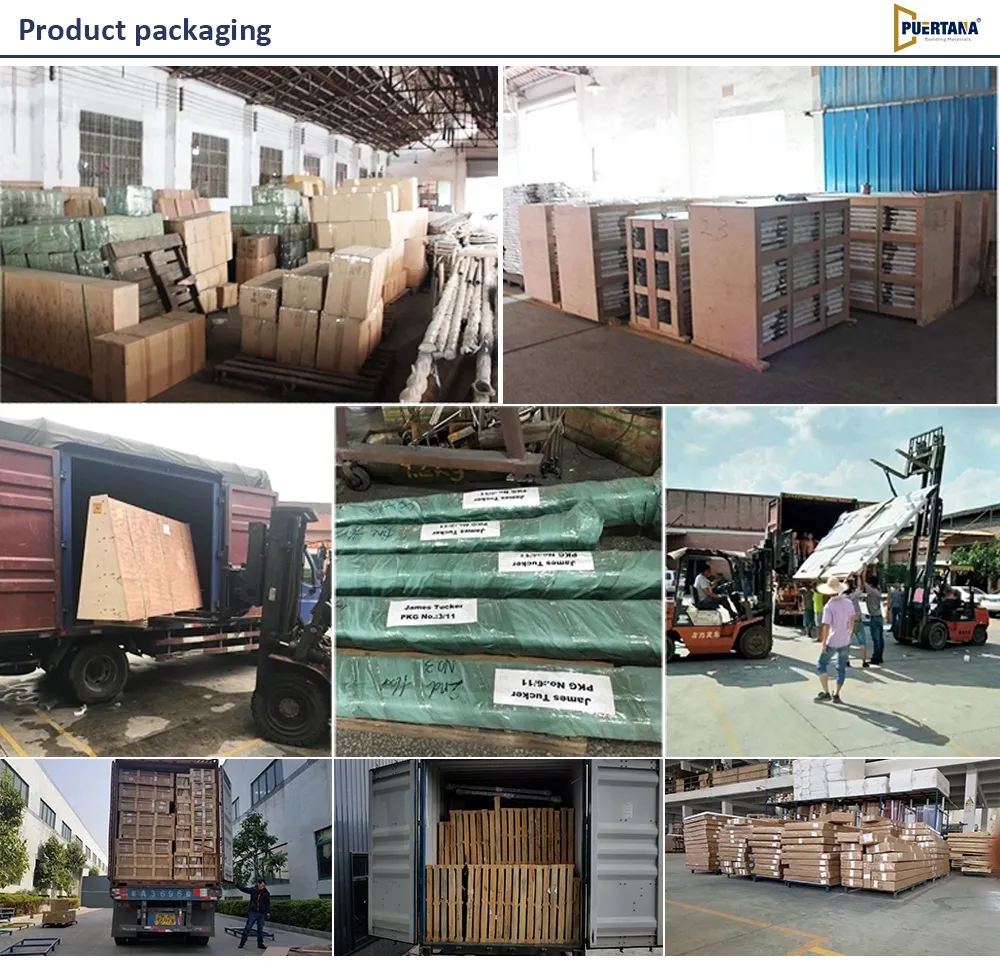

Standard Packaging: Wooden or Carton Box with Bubble Bag, Clear film, and Foam inside for maximum protection during transit.

❓ Frequently Asked Questions

Are you a factory?

Yes, we are a professional manufacturing factory.

What is your Minimum Order Quantity (MOQ)?

Our MOQ for aluminum products is 5m², and for wood doors, it is 5 sets.

What is the standard production time?

Normally it takes 25-30 days, though this is negotiable depending on order size.

Can you handle delivery?

Yes, we support various shipping terms including FOB, CFR, CIF, and DDU.

Do you check product quality before delivery?

Yes, we have a dedicated QC department that performs 100% quality checks to ensure products meet standards.

What color options are available?

We provide standard colors for all products, and custom color options are also available upon request.

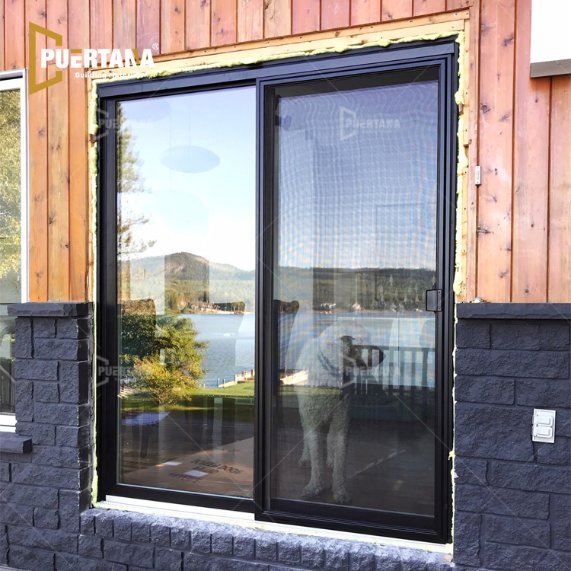

Exterior External Multi-Slide Stacking Plus and Pocketing Aluminium Sliding Patio Doors
