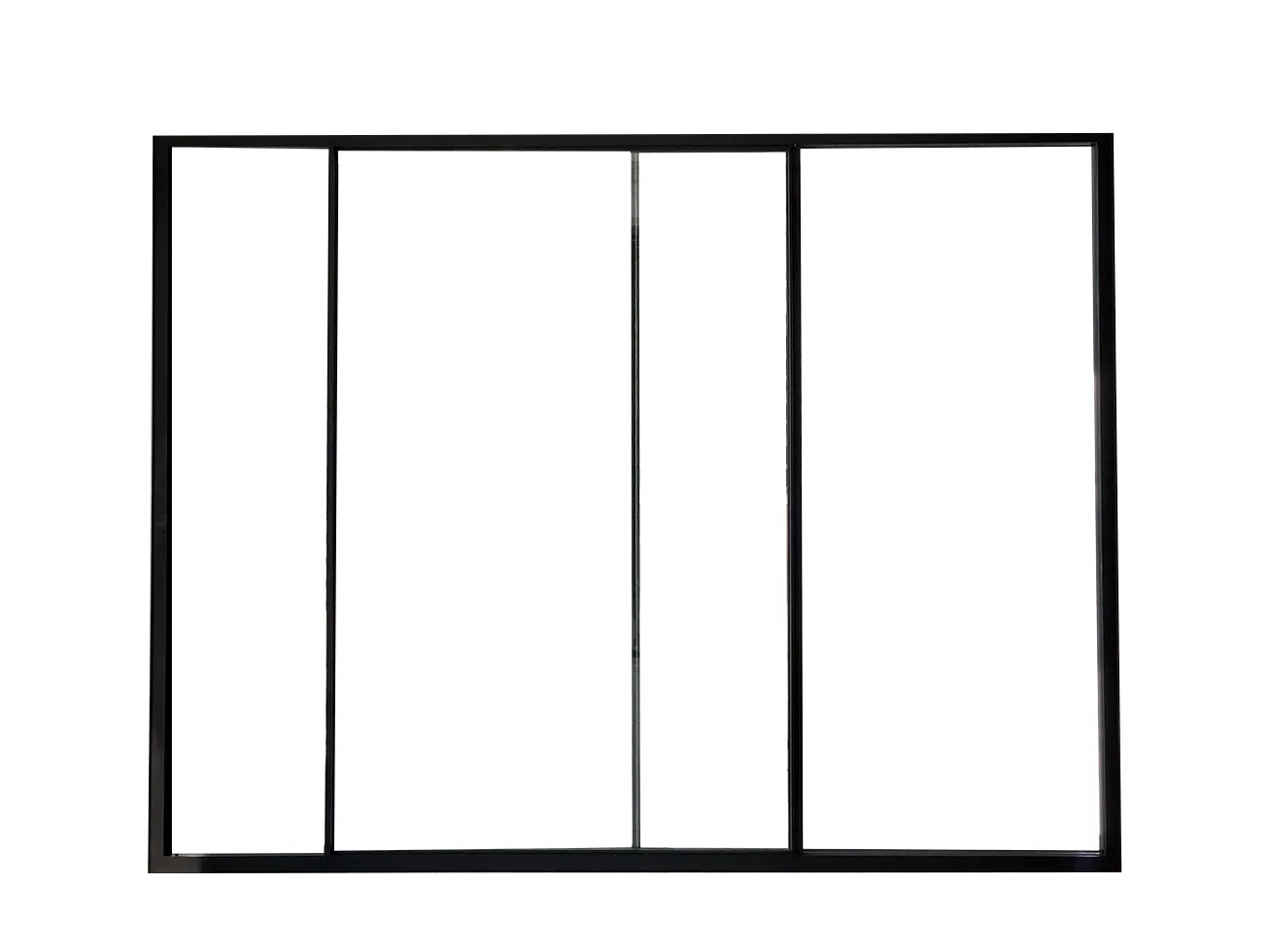

Slander Door
Slander Door

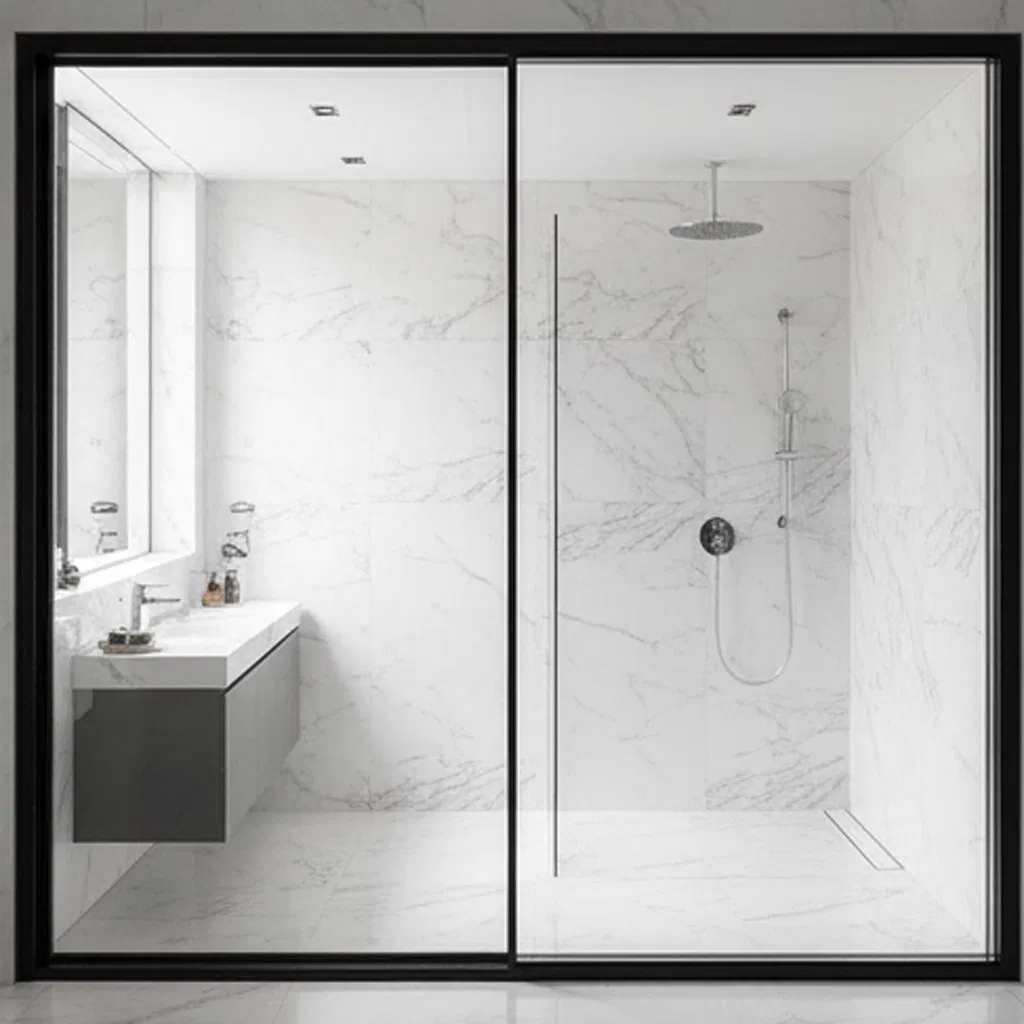

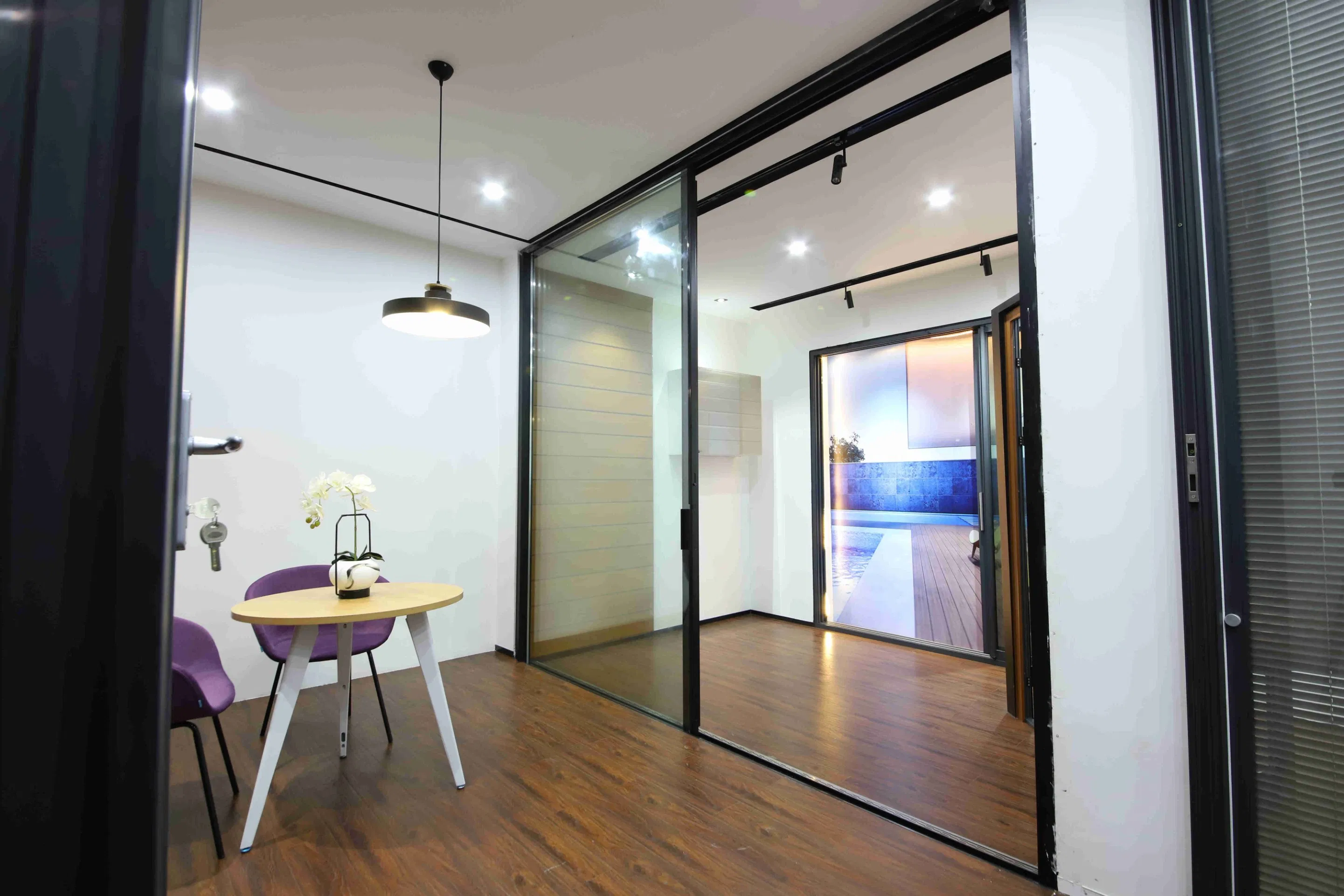

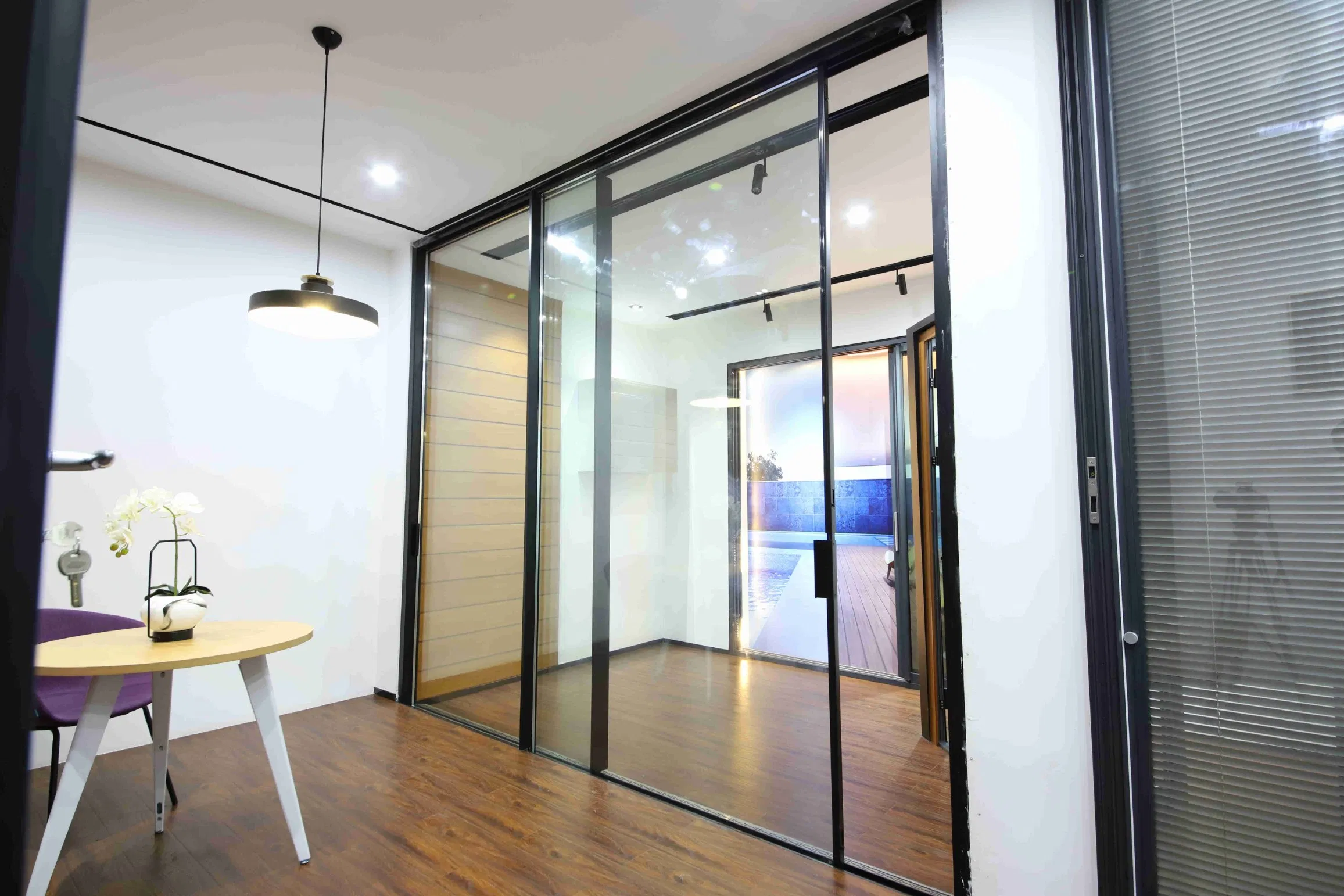

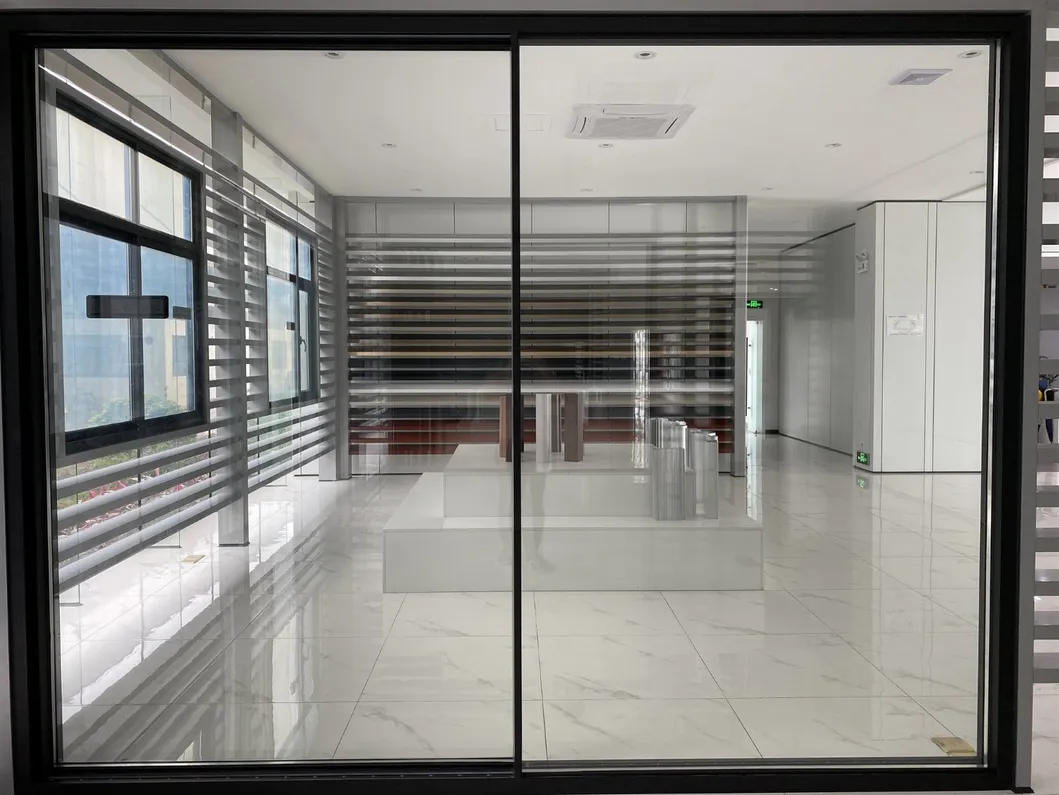

In this exquisite 'floor to ceiling series', the aluminium window frame and sash have been significantly reduced and crafted in a slim line design to lessen the amount of visible frames and sash. This maximizes the spans and openings of rooms to light and landscape, transforming the windows into a large panorama view.
Regardless of the typology or design, the mini-slim series offers double glazing as standard. This system is a culmination of widely employed modern design concepts, ensuring maximum transparency and excellent performance using the latest and most advanced technology. Made from high-performance aluminium, it can reduce heavy wind load and ensures safety even when subjected to severe weather conditions.
| Heat Insulation W(m².k) | Sound Insulation (DB) | Watertight (Pa) | Airtight | Wind Load (KPA) |
|---|---|---|---|---|
| 2.5 | 35DB (Level 4) | 500PA (Level 5) | Level 6 | 4.0KPA (Level 7) |
| Sash Range (mm) | Visible Width (mm) | Depth (mm) | Glass Thickness |
|---|---|---|---|
| W: 1000-3000 / H: 1800-3500 Max Weight: 500kg |
Frame: 40mm / Sash: 30mm Visible Sash: 20.6mm |
Frame Depth: 125mm Sash Depth: 57mm |
SGU: 8-12mm DGU: 19-38mm |
Our teams bring professional and competitive suggestions for your engineering and design needs, providing solutions on various sizes and complex projects.
Independent technology teams provide aluminium curtain walls technical support, including wind load calculation, systems and façade optimization, and installation guides.
Based on market requirements, we develop new aluminium windows and doors systems with matched accessories to meet specific target market needs.
