Automatic Panorama Thermal Break Aluminum Door
Automatic Panorama Thermal Break Aluminum Door
Automatic Panorama Thermal Break Aluminum Door
Automatic Panorama Thermal Break Aluminum Door
Automatic Panorama Thermal Break Aluminum Door
1 / 5
Automatic Panorama Thermal Break Aluminum Door
Automatic Panorama Thermal Break Aluminum Door
Automatic Panorama Thermal Break Aluminum Door
Automatic Panorama Thermal Break Aluminum Door
Automatic Panorama Thermal Break Aluminum Door

Automatic Panorama Thermal Break Aluminum Door

Customization: Available
Warranty: 36monthes
Material: Aluminum Alloy
Send Inquiry

Product Description

📊 Basic Product Specifications
Model NO.
Automatic Panorama Thermal Break Aluminum Door
Type
Sliding
Open Style
Sliding
Special Function
Soundproof

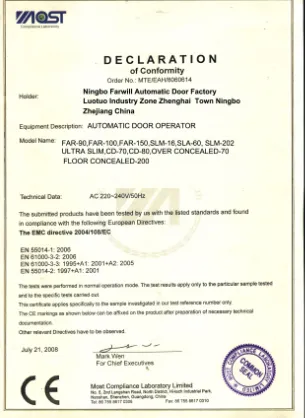

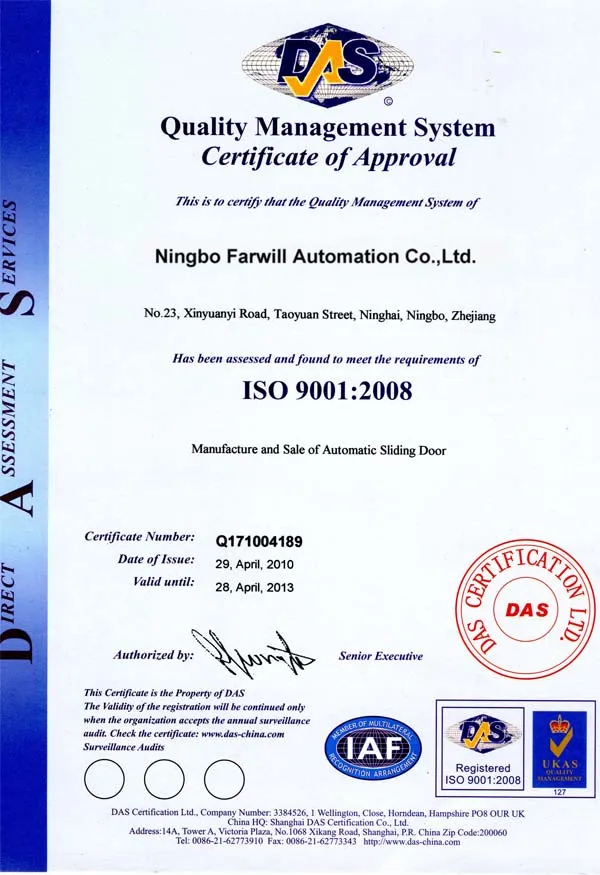

Certification
CCC, ISO9001, CE
Motor Type
Dunkermotoren Germany
Power Supply
220V or 110V
Production Capacity
2000 sets Every Month
Package Size
220.00cm * 125.00cm * 10.00cm
Gross Weight
45.000kg
✨ Core Features

Panorama thermal break aluminum door air tight hermetical Wind Load Resistance sliding door

  • High-performance function similar to premium international standards.
  • Equipped with Germany Dunkermotor (99.5W), capable of bearing 2X160KG gates.
  • Easy installation with pre-installed drive systems.
  • Low noise design (less than 40dB).
  • One million times of reliability tests passed.
  • 18 months warranty support.
📸 Product Visuals
Thermal Break Aluminum Door
Sliding Door Mechanism
Aluminum Door Profile
Automatic Door Detail
Thermal Break Section
Sliding System View
Installation Component

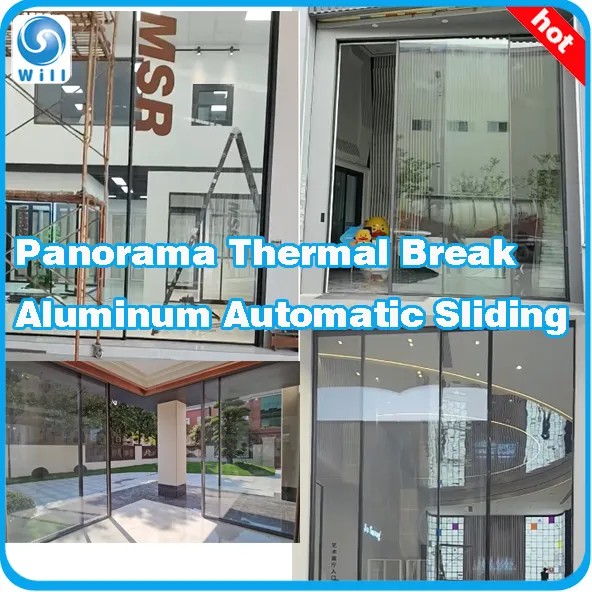

Door Track Detail
Motor Drive Unit
Standard Configuration

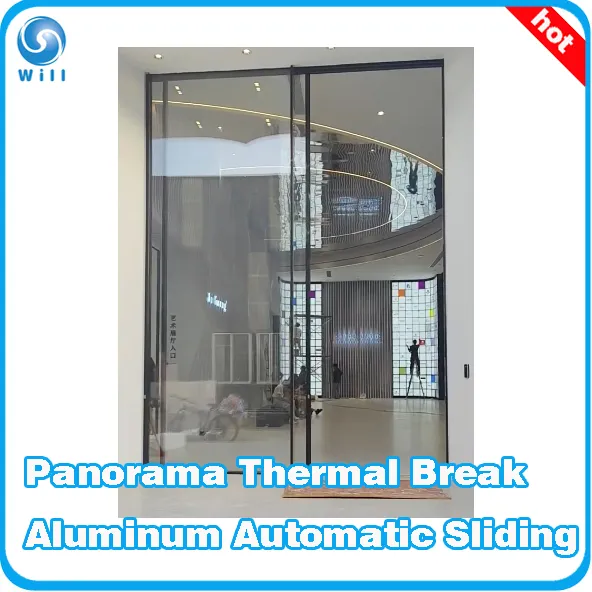

Control Module
Full Assembly
⚙️ Technical Specification
ParameterDetail
ModelSLA60
Gate Weight (Single/Bi-part)1X200KG / 2X120KG
Gate Width (Single/Bi-part)900-6100MM
Master Controller32 digital microprocessor
Motor Power99.5W 60VDC 2A IP50
Opening Speed300-700mm/s
Closing Speed300-650mm/s
Max Open Strength150N
Hold Open Time0-10S / 30s
Rail DimensionHeight: 8CM, Depth: 16CM
Working Temperature-15 C to +70 C
🛠️ Configuration & Parts

Standard Configuration:

  • Minidrive Unit & Transformer
  • Germany Dunkermotor & Decoder
  • Basic control module & Track
  • Carrier & Return Pulley
  • Service cover holder & End stop
  • Door bracket & Belt connection
  • Belt tensioning device

Optional Parts:

  • Motion Sensor
  • Lock latch
  • Battery Backup
  • Beam safety photocell
🚨 Safety & Functions

Operational Modes: Automatic, Permanent Open, Partial Open, Exit Only, Off.

Emergency Systems:

  • Emergency opening in case of power failure (Fail-safe).
  • Obstacle detection with automatic return mechanism.
  • Self-monitoring light barriers for enhanced safety.
  • Slow speed search for obstruction to prevent impact.
Technical Drawing
Product Layout
Profile View
Hardware Detail
System Specs
Dimensions
❓ Frequently Asked Questions
What is the weight capacity of the SLA60 door system?
The system can support a single door leaf up to 200KG or bi-parting doors up to 120KG each (total 240KG), powered by a high-efficiency 99.5W motor.
Is the motor reliable for long-term use?
Yes, it uses the Germany Dunkermotor, which is CE approved and has passed one million testing cycles for durability and performance.
Does the door provide soundproofing?
Absolutely. The door is designed with soundproof special functions and operates at a very low noise level of less than 40dB.
How does the door behave during a power failure?
The system features an emergency opening function in case of power failure and can be equipped with an optional battery backup for continued operation.
What kind of safety features are integrated?
It includes obstacle detection with an automatic return mechanism, self-monitoring light barriers, and a slow-speed search mode for obstructions.
Is the installation process complex?
The installation is designed to be easy because the main drive system is pre-installed before leaving the factory, reducing onsite labor.
